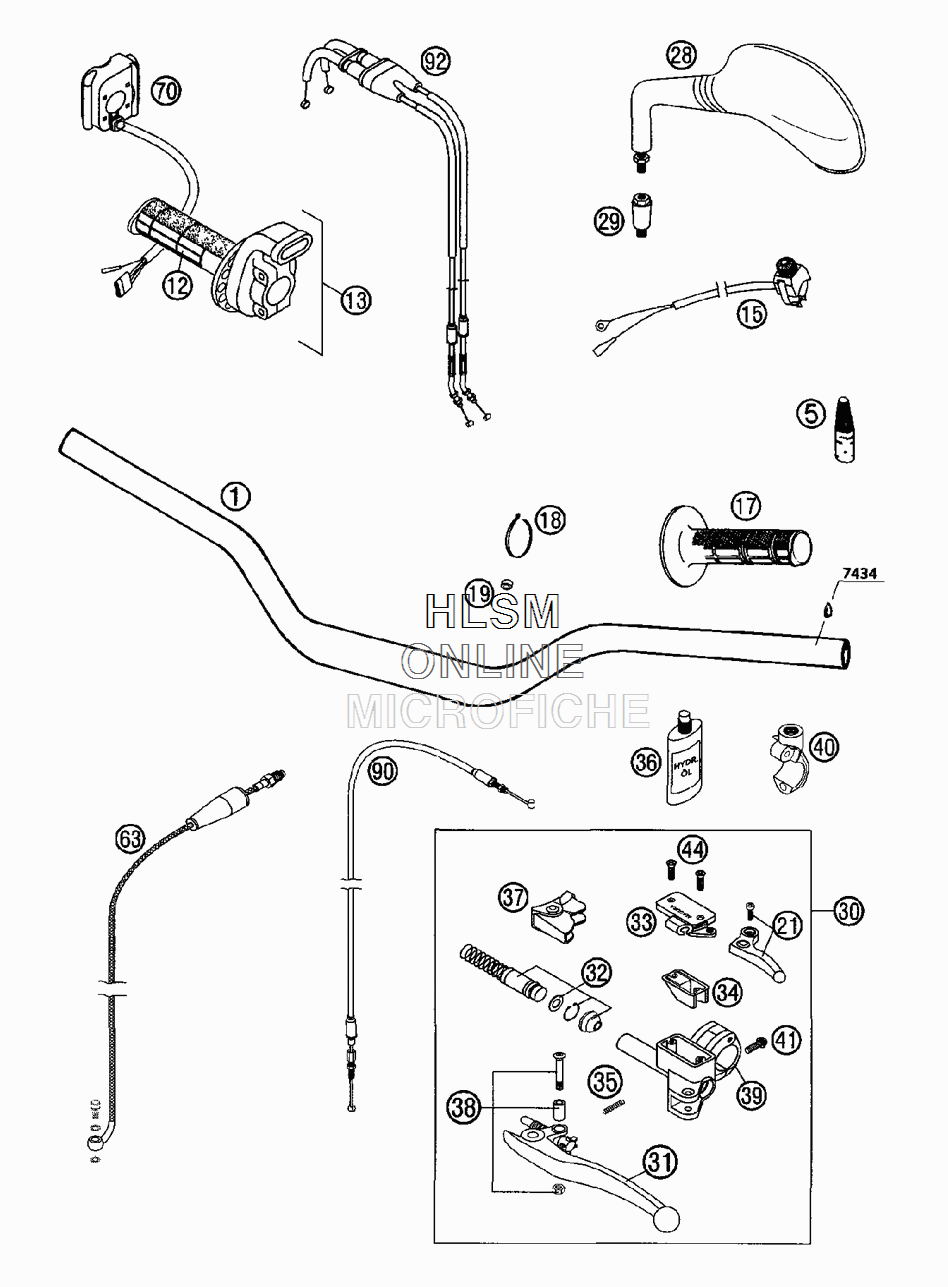

HANDLEBAR W/ CONTROLS для Ktm 525 EXC-G Racing - 2003 года выпуска
-
№АртикулНазвание
-
154802001000 HANDLEBAR D=28MM LOWHANDLEBAR D=28MM LOW
-
159002001000 HANDLEBAR SC,RACING HIGHHANDLEBAR SC,RACING HIGH
-
56899792 GLUE CYANACRYLAT 7434GLUE CYANACRYLAT 7434
-
1250202003000 TWIST GRIP COVER DOMINO BLACKTWIST GRIP COVER DOMINO BLACK
-
1359002010200 THROTTLE GRIP CPL. RACINGTHROTTLE GRIP CPL. RACING
-
1550311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
1750202052000 FIXED GRIP DOMINO BLACKFIXED GRIP DOMINO BLACK
-
1844011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
1844011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
1950301089000 SPACER BUSHING 6X10X5SPACER BUSHING 6X10X5
-
2159002047000 DECO.LEVER CPL. RACINGDECO.LEVER CPL. RACING
-
2858412040000 MIRROR L/S LC4MIRROR L/S LC4
-
2858412041000 MIRROR R/S LC4MIRROR R/S LC4
-
2958412040050 SUPPORT FOR MIRRORSUPPORT FOR MIRROR
-
3059002030100 MASTER CYLINDER CPL. RACINGMASTER CYLINDER CPL. RACING
-
3159002031000 CLUTCH LEVER LONG CPL. 2003CLUTCH LEVER LONG CPL. 2003
-
3154602031000 CLUTCH LEVER SHORT CPL. 2003CLUTCH LEVER SHORT CPL. 2003
-
3259002032000 REP.KIT PISTON 9,5MM RAC. 2000REP.KIT PISTON 9,5MM RAC. 2000
-
3359002033000 COVER HYD.CLUTCH RACING 2000COVER HYD.CLUTCH RACING 2000
-
3450302034000 RUBBER FOR RESERVOIR '98RUBBER FOR RESERVOIR '98
-
3559002035000 SPRING FOR CLUTCH LEVER 03SPRING FOR CLUTCH LEVER 03
-
3650302036000 OIL FOR HYD.CLUTCH 50MLOIL FOR HYD.CLUTCH 50ML
-
3750302037000 PROTECT.CAP FOR LEVER PERCH'98PROTECT.CAP FOR LEVER PERCH'98
-
3850302038000 LEVER SCREW CPL. 125-200 '98LEVER SCREW CPL. 125-200 '98
-
3950302030150 CLAMP WITH PIN 2000CLAMP WITH PIN 2000
-
4059002044000 CLAMP MIRROR WITH PINCLAMP MIRROR WITH PIN
-
410015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
440965040123 FLAT HEAD SCREW DIN0965-M4X12FLAT HEAD SCREW DIN0965-M4X12
-
6359032063100 CLUTCH PIPE RACING 2003CLUTCH PIPE RACING 2003
-
7059011074000 START-STOP TIP SWITCH CPL.2000 (USASTART-STOP TIP SWITCH CPL.2000 (USA
-
7059011074200 START-STOP TIP SWITCH 2001 (EU+AUS)START-STOP TIP SWITCH 2001 (EU+AUS)
-
9059002094000 DECOMPR. CABLE RACING 2000DECOMPR. CABLE RACING 2000
-
9259002091300 THR.CABLEOPEN-CLOSEKEIHIN 02THR.CABLEOPEN-CLOSEKEIHIN 02
