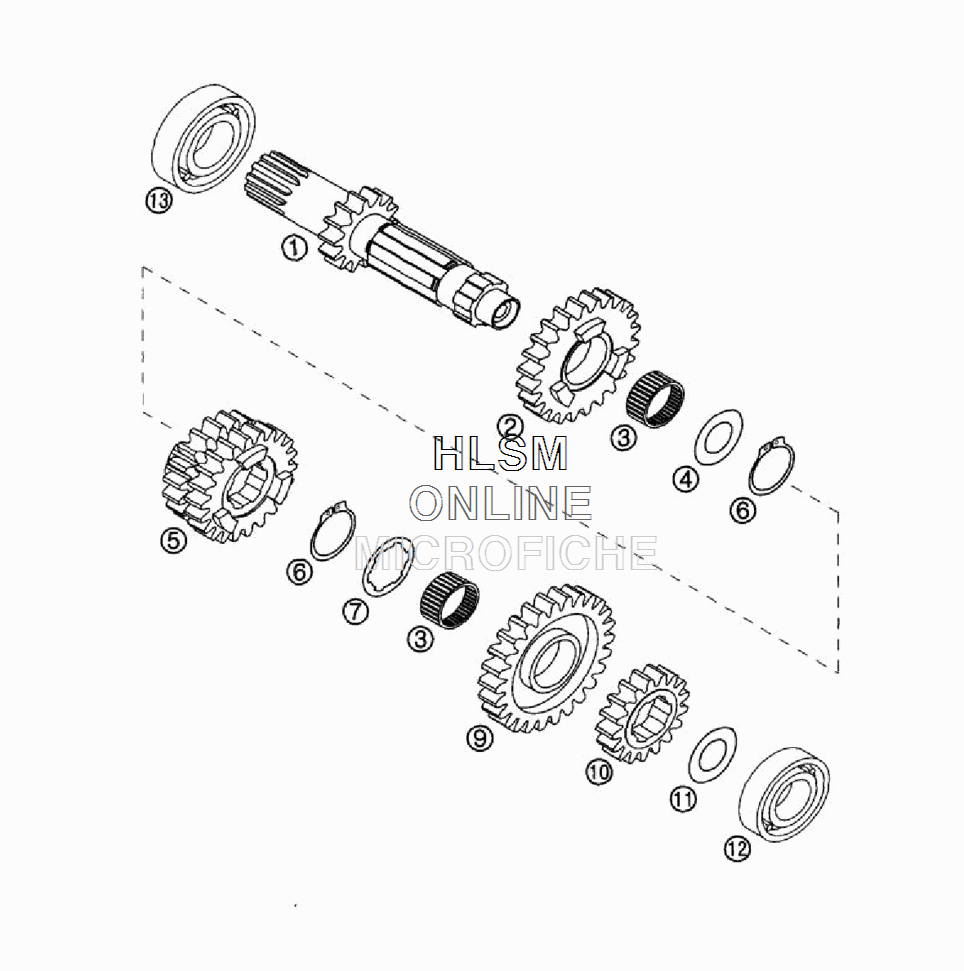

TRANSMISSION - MAIN SHAFT (USA) для Ktm 525 MXC-G Racing - 2003 года выпуска
-
№АртикулНазвание
-
159033001300 MAIN SHAFT-ZB 16-TMAIN SHAFT-ZB 16-T
-
259033005039 IDLER GEAR 5.G 24-T "39"IDLER GEAR 5.G 24-T "39"
-
356533099000 NEEDLE BEAR. K22X26X13 DIVIDEDNEEDLE BEAR. K22X26X13 DIVIDED
-
459033031000 STOP DISK 25,2X32X1,5STOP DISK 25,2X32X1,5
-
559033003046 SLIDING GEAR 3/4.G 20/22-T46SLIDING GEAR 3/4.G 20/22-T46
-
60471250120 CIRCLIP DIN0471-25X1,2CIRCLIP DIN0471-25X1,2
-
759033030000 STOP DISK 25,2X32X1,5STOP DISK 25,2X32X1,5
-
959033006045 IDLER GEAR 6.G 21-T "45"IDLER GEAR 6.G 21-T "45"
-
1059033002037 SOLID GEAR 2.G 18-T "37"SOLID GEAR 2.G 18-T "37"
-
1156033030000 STOP DISK 17,2X30X1STOP DISK 17,2X30X1
-
120625062034 BALL BEARING 6203 C3 NTNBALL BEARING 6203 C3 NTN
-
130625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
