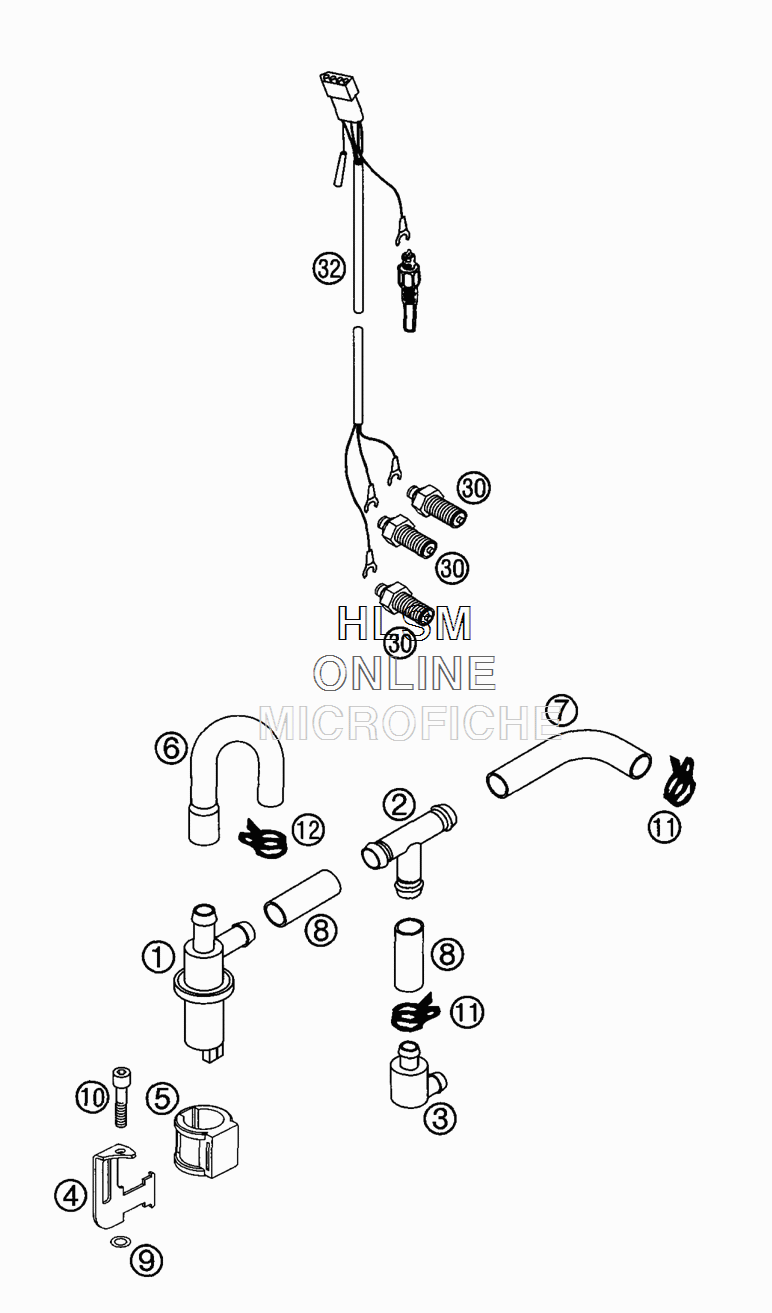

ELECTRONIC POWER CONTROL для Ktm LC4 640 Adventure - 2003 года выпуска
-
№АртикулНазвание
-
158431067000 MAGNETIC VALVE PIRBURG EPCMAGNETIC VALVE PIRBURG EPC
-
258431072000 T-CONNECTION 12MMT-CONNECTION 12MM
-
358431070000 AIR FILTERAIR FILTER
-
458431069100 BRACKET FOR MAGNETIC VALVEBRACKET FOR MAGNETIC VALVE
-
560031068000 RUBBER SUPPORT F. MAG.VALVERUBBER SUPPORT F. MAG.VALVE
-
658431071000 VACUUM HOSE FOR MAGNETICVACUUM HOSE FOR MAGNETIC
-
758431097000 ANGULAR HOSE T-CON.-CARBURETORANGULAR HOSE T-CON.-CARBURETOR
-
858431097100 TUBE 12MM T-CON.-FILTERTUBE 12MM T-CON.-FILTER
-
90603061002 CU-SEAL RING DIN7603-6X10X2CU-SEAL RING DIN7603-6X10X2
-
100912060303 AH SCREW DIN0912-M 6X30AH SCREW DIN0912-M 6X30
-
1158431082000 YDNAC-CLAMP 15MMYDNAC-CLAMP 15MM
-
1258431082100 YDNAC-CLAMP 16MMYDNAC-CLAMP 16MM
-
3058011081100 1 CONTACT SCREW M10 STEELCONTACT SCREW M10 STEEL
-
3258411085000 WIRING HARN. EPC F. ENGINEWIRING HARN. EPC F. ENGINE
