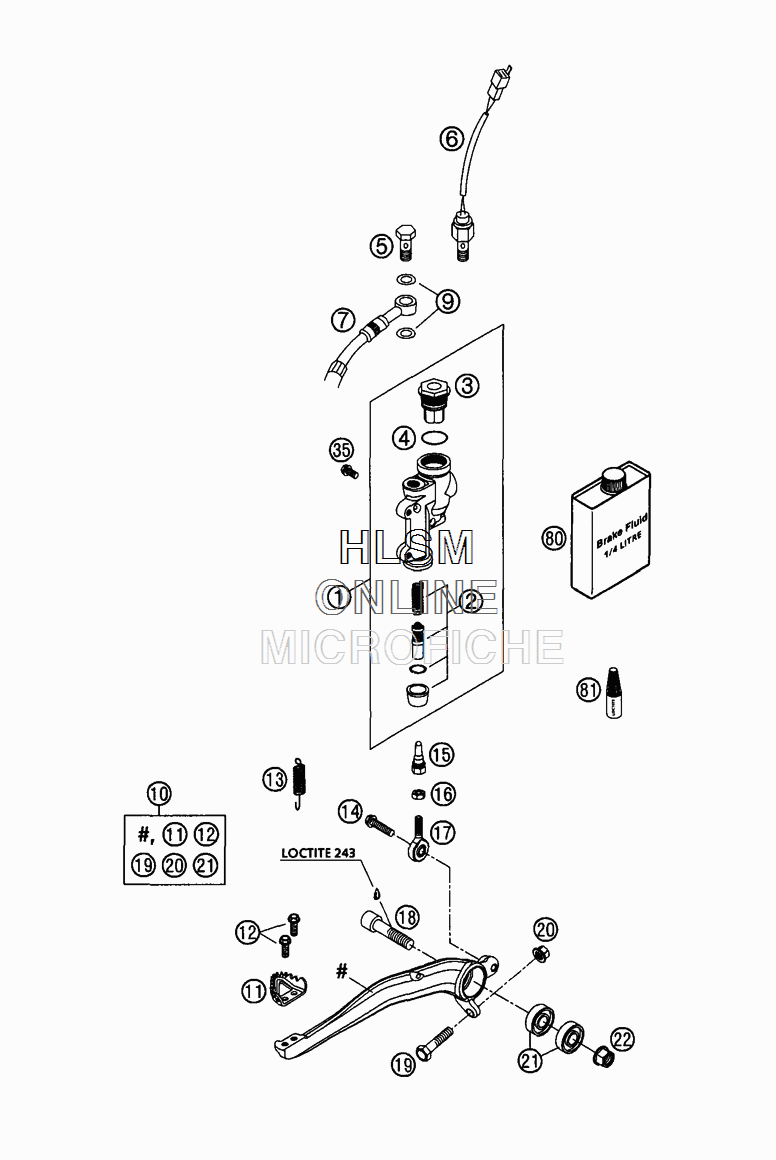

REAR BRAKE CYLINDER для Ktm 200 EXC - 2004 года выпуска
-
№АртикулНазвание
-
154813060000 FOOT-BRAKE CYLINDER (WITH MEMBRANE)FOOT-BRAKE CYLINDER (WITH MEMBRANE)
-
154813060100 REAR BRAKE CYLINDER CPL. (WITH RUBBER BELLOWS)REAR BRAKE CYLINDER CPL. (WITH RUBBER BELLOWS)
-
254813061000 REPAIR KIT PISTON 13MMREPAIR KIT PISTON 13MM
-
354813062000 FOOT-BRAKE CYL. COVER (WITH MEMBRANE)FOOT-BRAKE CYL. COVER (WITH MEMBRANE)
-
354813062100 REAR BRAKE CYL. COVER CPL. (WITH RUBBER BELLOWS)REAR BRAKE CYL. COVER CPL. (WITH RUBBER BELLOWS)
-
454813063000 FOOT-BRAKE CYL. GASKETFOOT-BRAKE CYL. GASKET
-
554813020100 HOLLOW SCREW BLACK M10X1X19 (SX, EXC USA)HOLLOW SCREW BLACK M10X1X19 (SX, EXC USA)
-
650311051100 BRAKE LIGHT SWITCH REAR (EXC EU+AUS)BRAKE LIGHT SWITCH REAR (EXC EU+AUS)
-
754813070000 BRAKE HOSE REAR 655MMBRAKE HOSE REAR 655MM
-
942013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
1054813050044 FOOT BRAKE LEVER CPL.FOOT BRAKE LEVER CPL.
-
1154813051000 STEP PLATE FOR BRAKE LEVERSTEP PLATE FOR BRAKE LEVER
-
120015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
1354603062000 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
140015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
1554813056000 PRESSURE ROD L=28MMPRESSURE ROD L=28MM
-
160934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
1754813055000 SWIVEL HEAD KA6SWIVEL HEAD KA6
-
180912100406 AH SCREW DIN6912 M10X40 10.9AH SCREW DIN6912 M10X40 10.9
-
1959001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
2046030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
210625060001 BALL BEARING 6000/C3BALL BEARING 6000/C3
-
2254630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
350015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
-
816899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
