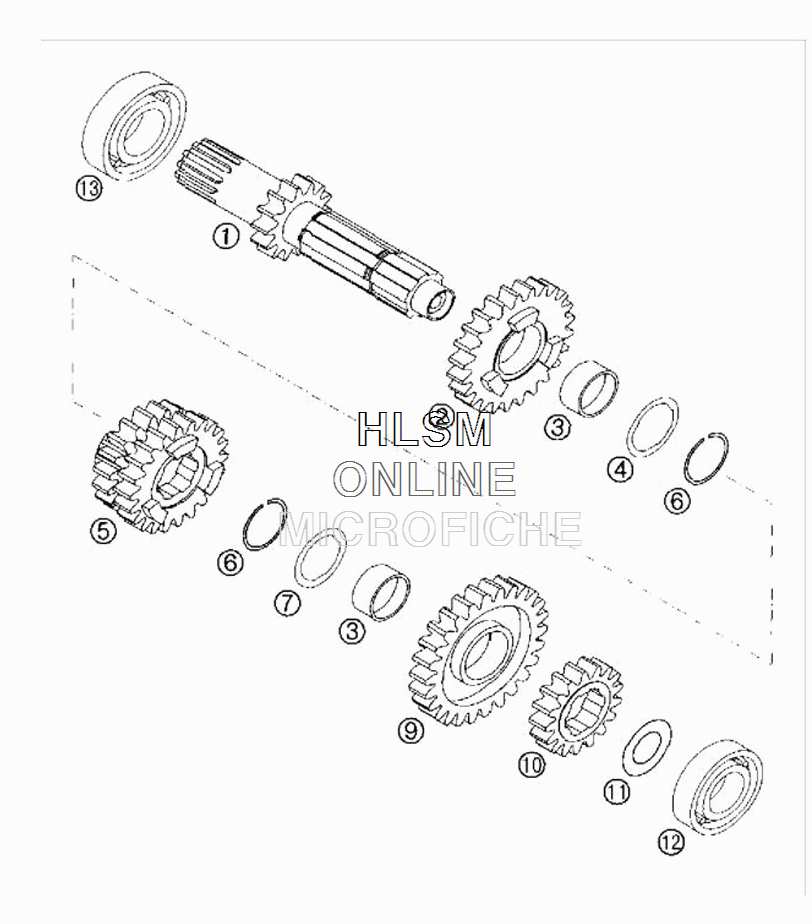

TRANSMISSION - MAIN SHAFT для Ktm 250 EXC RFS - 2004 года выпуска
-
№АртикулНазвание
-
159833001100 MAIN SHAFT 14-TMAIN SHAFT 14-T
-
259833005053 IDLER GEAR 5.G 23-TIDLER GEAR 5.G 23-T
-
350333020000 IDLER GEAR BUSH. 22X25X11,1 AIDLER GEAR BUSH. 22X25X11,1 A
-
450333045000 STOP DISK 22,2X27,8X1STOP DISK 22,2X27,8X1
-
559833003052 SLIDING GEAR 3./4.G 19/21-TSLIDING GEAR 3./4.G 19/21-T
-
650133090000 LOCK RING 22X1,2LOCK RING 22X1,2
-
750333040000 STOP DISC 22,2X27,8X1 ASTOP DISC 22,2X27,8X1 A
-
959833006054 IDLER GEAR CO 22-TIDLER GEAR CO 22-T
-
1059833002051 SOLID GEAR 2.G 16-TSOLID GEAR 2.G 16-T
-
1150333030000 STOP DISK 17,2X24X1STOP DISK 17,2X24X1
-
120625062035 BALL BEARING 6203 C3 NTNBALL BEARING 6203 C3 NTN
-
130625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
