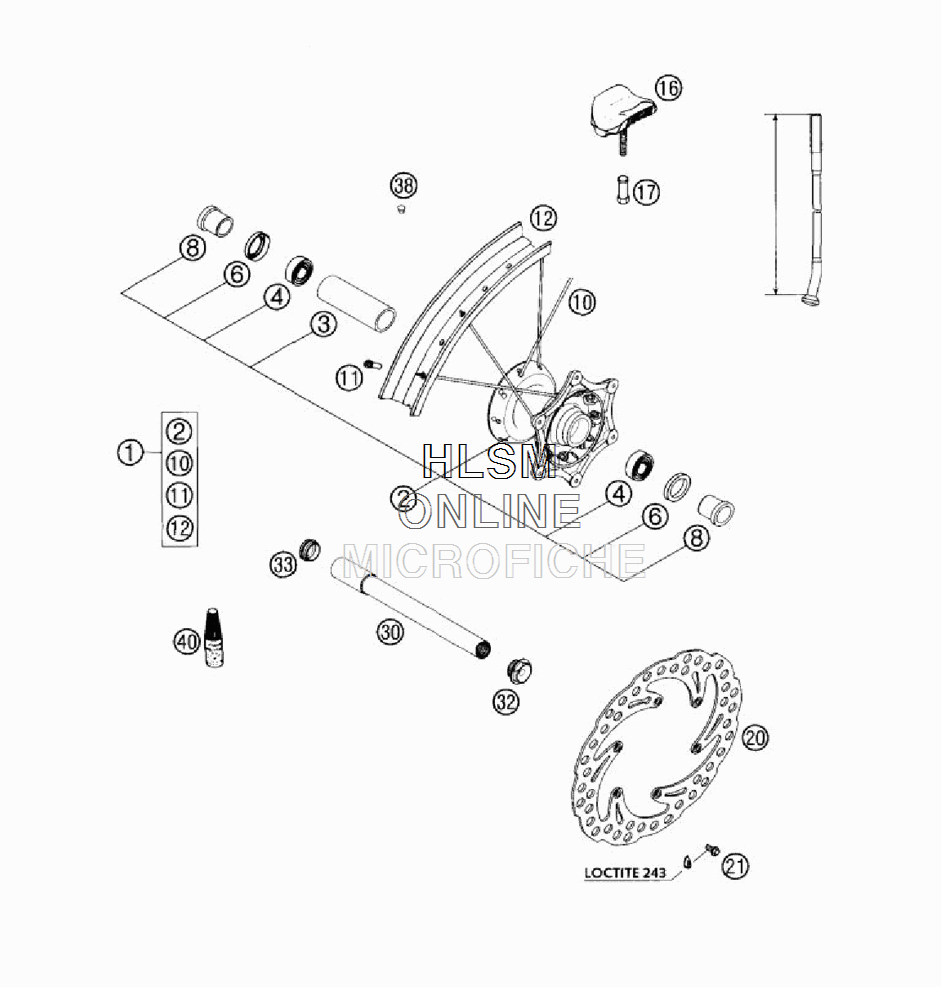

FRONT WHEEL для Ktm 300 EXC - 2004 года выпуска
-
№АртикулНазвание
-
154809001144 FRONT WHEEL 1,6X21" DID (EURO)FRONT WHEEL 1,6X21" DID (EURO)
-
154809001244 FRONT WHEEL 1,6X21" EXCEL (USA/AUS)FRONT WHEEL 1,6X21" EXCEL (USA/AUS)
-
25480901004496 FRONT HUB CPL. GOLDFRONT HUB CPL. GOLD
-
354809011000 BEA.SPACERTUBE 35X2 L=79,4BEA.SPACERTUBE 35X2 L=79,4
-
40625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
60760354771 SHAFT SEAL RING 35X47X7 ASLSHAFT SEAL RING 35X47X7 ASL
-
854809012000 SPACER BUSHING F. FR. WHEELSPACER BUSHING F. FR. WHEEL
-
1050309072230 SPOKE M4,5X230-15G 21" DDESPOKE M4,5X230-15G 21" DDE
-
1150309072000 SPOKE NIPPLE M4,5X0,75 8X21SPOKE NIPPLE M4,5X0,75 8X21
-
1254609070200 FRONT RIM 1,6X21" DID (EURO)FRONT RIM 1,6X21" DID (EURO)
-
1254809070000 FRONT RIM 1,6X21" EXCEL AL7 (USA/AUS)FRONT RIM 1,6X21" EXCEL AL7 (USA/AUS)
-
1651009100100 RIM LOCK VM1 (1,60")RIM LOCK VM1 (1,60")
-
1750310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
2054809060100 BRAKE DISC FRONT D=260MMBRAKE DISC FRONT D=260MM
-
2159009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
3054809081000 WHEEL SPIN.FR. D=26 M24X1,5WHEEL SPIN.FR. D=26 M24X1,5
-
3254809082000 SPINDLE SCREW M24X1,5 WS=27SPINDLE SCREW M24X1,5 WS=27
-
3354809081050 PLUG BUSHING WS=27PLUG BUSHING WS=27
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
406899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
