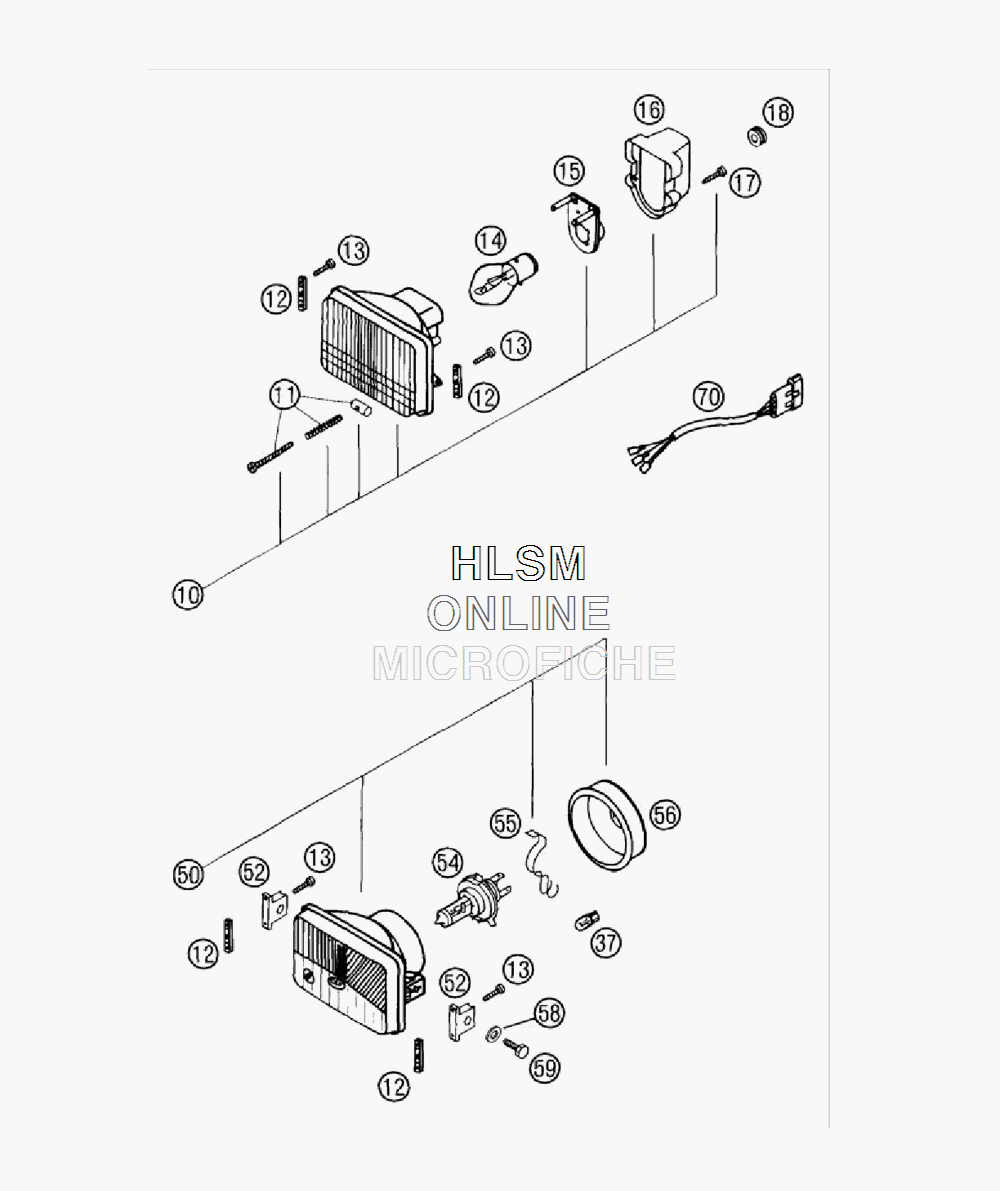

HEADLIGHT для Ktm 300 MXC - 2004 года выпуска
-
№АртикулНазвание
-
1050211610000 HEADLIGHT CPL. ELCOMHEADLIGHT CPL. ELCOM
-
1150211631000 ADJUSTING SCREW CPL. M4X40ADJUSTING SCREW CPL. M4X40
-
1250211410050 HEADLIGHT BRACKETHEADLIGHT BRACKET
-
130016040183 SCREW FOR PLASTIC D=4X18SCREW FOR PLASTIC D=4X18
-
1444111038000 BILUX-BULB 12V 35/35W BA20DBILUX-BULB 12V 35/35W BA20D
-
1557011036000 BULB SOCKETBULB SOCKET
-
1650211637000 COVER CAPCOVER CAP
-
170981350133 SHEET MET.SCR.DIN7981-3,5X13SHEET MET.SCR.DIN7981-3,5X13
-
1831008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
3749011435000 BULB 12V 5W (W2,1X9,5D)BULB 12V 5W (W2,1X9,5D)
-
5059014002000 HEAD LIGHT 186(RI) "1003202 R" (RIGHT TRAFFIC)HEAD LIGHT 186(RI) "1003202 R" (RIGHT TRAFFIC)
-
5059014002100 HEAD LIGHT 186(LE) "1003203 L" (LEFT TRAFFIC)HEAD LIGHT 186(LE) "1003203 L" (LEFT TRAFFIC)
-
5258414010100 HEAD LIGHT SUPPORTHEAD LIGHT SUPPORT
-
5454611038012 BULB HS1 12V 35/35W WHITEBULB HS1 12V 35/35W WHITE
-
5549011436100 BULB HOLDERBULB HOLDER
-
5650211537000 RUBBER CAPRUBBER CAP
-
580125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
590933060203 HH SCREW DIN0933-M 6X20HH SCREW DIN0933-M 6X20
-
7050211610010 CABLE FOR HEADLIGHTCABLE FOR HEADLIGHT
