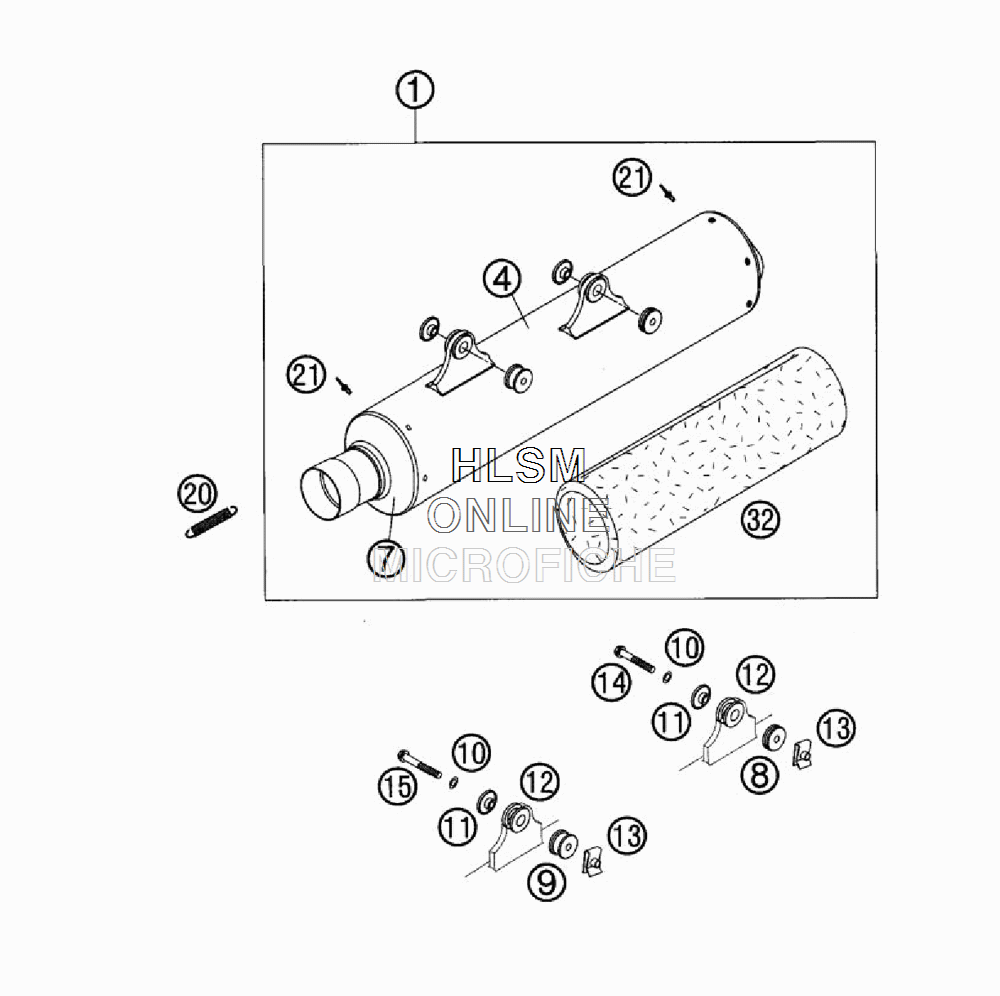

EXHAUST SILENCER для Ktm 450 SMR - 2004 года выпуска
-
№АртикулНазвание
-
159405079100 SILENCERSILENCER
-
459405079050 SILENCER HOUSING CPL.SILENCER HOUSING CPL.
-
759405079009 SILENC.CONNECT. CAP CPL.SILENC.CONNECT. CAP CPL.
-
859405169000 BUSHING SIL.-SMR REARBUSHING SIL.-SMR REAR
-
959405269000 BUSHING SIL.-SMR FRONTBUSHING SIL.-SMR FRONT
-
100137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1154605069000 BUSHING 7,5X12X28X7,8BUSHING 7,5X12X28X7,8
-
1254605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
1354603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
140015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
150015060453 HH COLLAR SCREW M 6X45 WS=8HH COLLAR SCREW M 6X45 WS=8
-
2050305016000 TEN.SPRING L=55MM EY.MOVEABLETEN.SPRING L=55MM EY.MOVEABLE
-
210011480802 DUMMY RIVET 4,8X 8,0 NIRODUMMY RIVET 4,8X 8,0 NIRO
-
3259005078550 STUFF. YARN 550GRAMM L=500MMSTUFF. YARN 550GRAMM L=500MM
