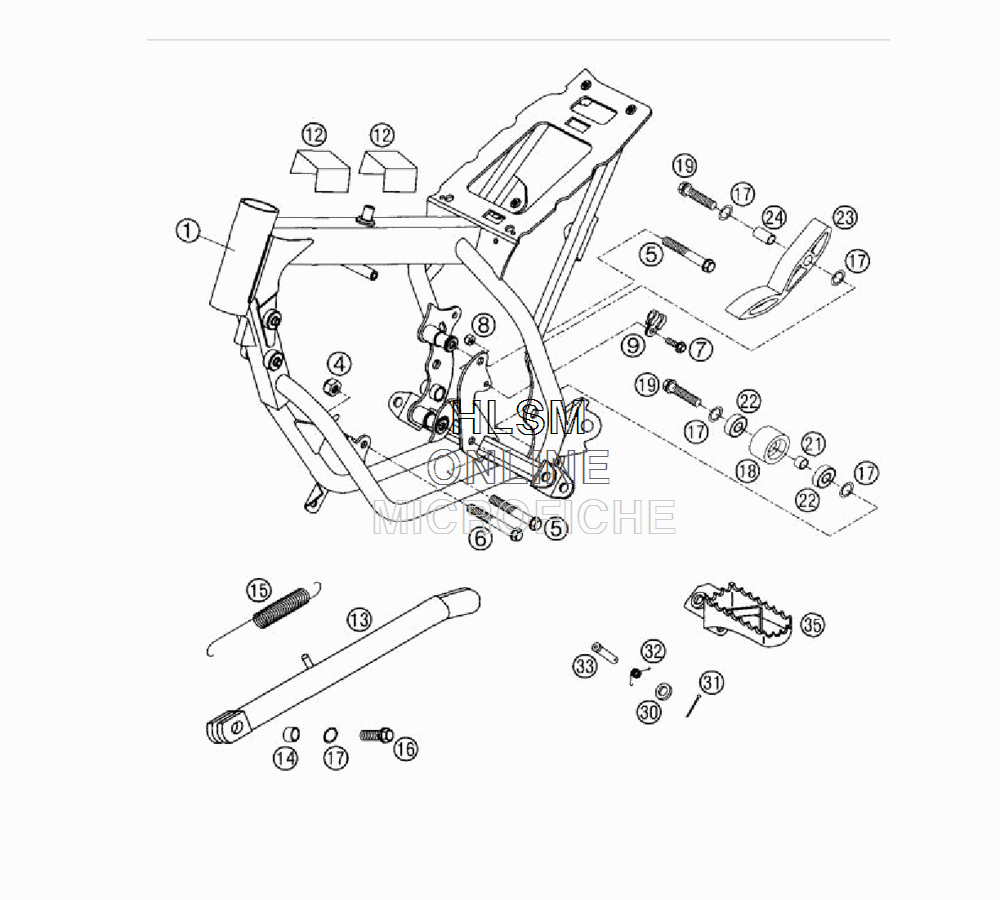

FRAME W/ SUB FRAME для Ktm 50 Mini Adventure - 2004 года выпуска
-
№АртикулНазвание
-
145103001500 FRAME ADVENTURE GS "MF3R"FRAME ADVENTURE GS "MF3R"
-
454310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
50015080603 HH COLLAR SCREW M 8X60 WS=10HH COLLAR SCREW M 8X60 WS=10
-
60015080653 HH COLLAR SCREW M 8X65 WS=10HH COLLAR SCREW M 8X65 WS=10
-
70015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
80985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
945001070000 BRAKE CABLE GUIDEBRAKE CABLE GUIDE
-
1258711054050 METAMOLL FOR BATTERY BRACKETMETAMOLL FOR BATTERY BRACKET
-
134510302310090 SIDE STAND L=270MM SILVERSIDE STAND L=270MM SILVER
-
1445103023250 BUSHING FOR SIDE STANDBUSHING FOR SIDE STAND
-
1551003021000 SIDESTAND SPRING LONGSIDESTAND SPRING LONG
-
160015080203 HH COLLAR SCREW M 8X20 WS=10HH COLLAR SCREW M 8X20 WS=10
-
1736003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
1850203053000 CHAIN ROLL D=30MMCHAIN ROLL D=30MM
-
190015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
2174003021000 BUSHING 8.2 X 12 X 6BUSHING 8.2 X 12 X 6
-
220625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
2351103053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
2451103053051 BUSHING 8,2X10X20BUSHING 8,2X10X20
-
300125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
310094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
3254603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
3354803044000 BOLT FOR FOOT PEDBOLT FOR FOOT PED
-
355460304000090 FOOT REST L/S SILVERFOOT REST L/S SILVER
-
355460314000090 FOOT REST R/S SILVERFOOT REST R/S SILVER
Все узлы модели:
- CARBURETOR DELLORTO 14 PHVA DS
- CLUTCH
- CLUTCH - CASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECAL
- EXHAUST PIPE
- FENDER W/ MASK
- • FRAME W/ SUB FRAME
- FRONT FORK
- FRONT WHEEL
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- OIL PUMP
- REAR BRAKE
- REAR WHEEL
- SHOCK ABSORBER
- SPECIAL TOOLS
- TANK - SEAT - COVER
- TRANSMISSION
