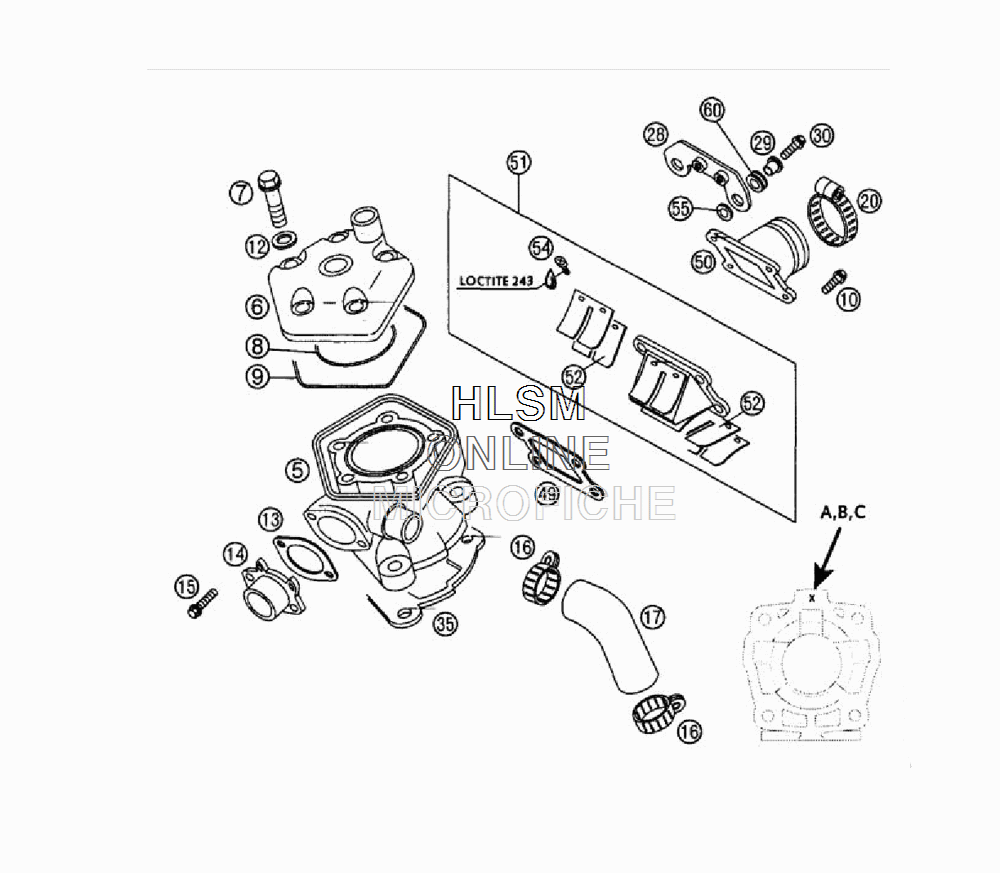

CYLINDER W/ CYLINDER HEAD для Ktm 50 SX Pro Sr LC - 2004 года выпуска

№

Артикул

Название
5

45130005100A CYLINDER "A"

CYLINDER "A"

0 ₽
5

45130005100B CYLINDER "B"

CYLINDER "B"

0 ₽
5

45130005100C CYLINDER "C"

CYLINDER "C"

0 ₽
6

45130006100 CYLINDER HEAD

CYLINDER HEAD

37 850 ₽
7

46030079000 CYLINDERHEADSCR.HH-M7X33

CYLINDERHEADSCR.HH-M7X33

320 ₽
8

46030036000 O-RING 53,7X1,78 VITON

O-RING 53,7X1,78 VITON

2 460 ₽
9

46030037000 O-RING 94,97X1,78

O-RING 94,97X1,78

2 340 ₽
10

0015060203 HH COLLAR SCREW M 6X20 WS=8

HH COLLAR SCREW M 6X20 WS=8

500 ₽
12

50230032010 CU-SEAL RING 7,3 X 12 X 0,5

CU-SEAL RING 7,3 X 12 X 0,5

410 ₽
13

46030046000 EXHAUST GASKET

EXHAUST GASKET

1 670 ₽
14

45105003100 EXHAUST FLANGE

EXHAUST FLANGE

7 710 ₽
15

0015060203 HH COLLAR SCREW M 6X20 WS=8

HH COLLAR SCREW M 6X20 WS=8

500 ₽
16

10001020000 HOSE CLAMP GEMI 16-27

HOSE CLAMP GEMI 16-27

680 ₽
17

45135027000 PRE-FORM HOSE CYL.-W.COVER

PRE-FORM HOSE CYL.-W.COVER

1 080 ₽
20

10001120000 CLAMP 25-40 SGT 4

CLAMP 25-40 SGT 4

1 400 ₽
28

45139028000 BRACKET IGNITI. COIL

BRACKET IGNITI. COIL

1 840 ₽
29

45139128000 COLLAR BUSHING 6,3X8X7,5

COLLAR BUSHING 6,3X8X7,5

1 430 ₽
30

0015060303 HH COLLAR SCREW M 6X30 WS=8

HH COLLAR SCREW M 6X30 WS=8

560 ₽
35

46030035020 CYLINDER BASE GASKET 0,2 MM

CYLINDER BASE GASKET 0,2 MM

3 210 ₽
35

46030035050 CYLINDER BASE GASKET 0,5 MM

CYLINDER BASE GASKET 0,5 MM

2 780 ₽
49

46030049000 INTAKE VALVE GASKET

INTAKE VALVE GASKET

680 ₽
50

45130050000 INLET MANIFOLD

INLET MANIFOLD

14 630 ₽
51

46030051144 MEMBRANE HOUSING CPL.

MEMBRANE HOUSING CPL.

23 340 ₽
52

46030052000 MEMBRANE LOOSE

MEMBRANE LOOSE

4 210 ₽
54

0985030063 FLAT HEAD SCREW DIN7985-M 3X6

FLAT HEAD SCREW DIN7985-M 3X6

30 ₽
55

0125060003 WASHER DIN0125-A 6,4

WASHER DIN0125-A 6,4

120 ₽
60

31008060000 RUBBER SLEEVE D=8MM OPEN

RUBBER SLEEVE D=8MM OPEN

270 ₽
