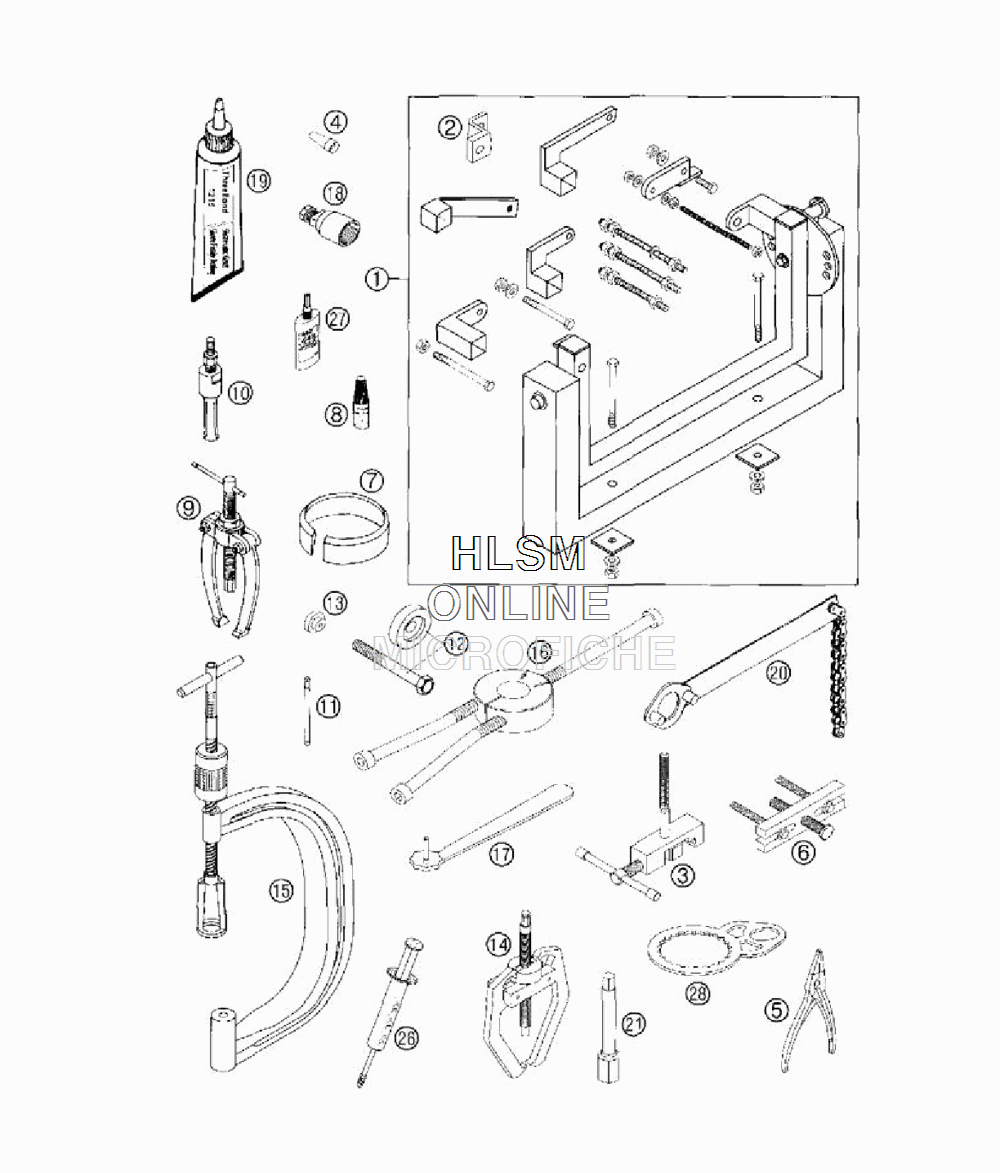

SPECIAL TOOLS для Ktm 525 MXC RFS - 2004 года выпуска
-
№АртикулНазвание
-
156012001000 UNIVERSAL MOUNTING RACKUNIVERSAL MOUNTING RACK
-
259029002000 ENGINE HOLDERENGINE HOLDER
-
359029020000 RIVETTING TOOL TIMING CHAINRIVETTING TOOL TIMING CHAIN
-
459029005010 MOUNTING SLEEVE SEAL RING (FOR WATER PUMP-SEAL RING)MOUNTING SLEEVE SEAL RING (FOR WATER PUMP-SEAL RING)
-
551012011000 SPECIAL CIRCLIP FLIERSPECIAL CIRCLIP FLIER
-
659029021044 EXTRACTOR PRIM. GEAR CPL.EXTRACTOR PRIM. GEAR CPL.
-
759829015075 PISTON R. COMPRESSOR D=75MMPISTON R. COMPRESSOR D=75MM
-
758012015089 PISTON RING COMPRESSOR D=89MMPISTON RING COMPRESSOR D=89MM
-
758012015095 PISTON RING COMPRESSOR D=95MMPISTON RING COMPRESSOR D=95MM
-
86899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
-
915112017000 BUSHING EXTRACTORBUSHING EXTRACTOR
-
1015112018000 INTERN.BEAR.PULLER 12-16 MMINTERN.BEAR.PULLER 12-16 MM
-
1015112018100 INTERN.BEAR.PULLER 18-23 MMINTERN.BEAR.PULLER 18-23 MM
-
1015112018200 INTERN.BEAR.PULLER 5-/ MMINTERN.BEAR.PULLER 5-/ MM
-
1159029026006 LIMIT PLUG GAUGE F.VALVE GUIDELIMIT PLUG GAUGE F.VALVE GUIDE
-
1259029035000 MOUNTING RING FOR INNER CLUTCHMOUNTING RING FOR INNER CLUTCH
-
1359029036000 PROTECTION COVER F.MAIN SHAFTPROTECTION COVER F.MAIN SHAFT
-
1459029033000 EXTRACTOR FOR TIMING GEAREXTRACTOR FOR TIMING GEAR
-
1559029019000 VALVE SPRING LEVERVALVE SPRING LEVER
-
1658429037037 MOUNTING TOOL INNER RING NJ206MOUNTING TOOL INNER RING NJ206
-
1759029034000 WRENCH F.MUXTURE CONTROL SCREWWRENCH F.MUXTURE CONTROL SCREW
-
1858012009000 FLYWHEEL EXTRACTORFLYWHEEL EXTRACTOR
-
19309098 SILICON GASKET THREE-BONDSILICON GASKET THREE-BOND
-
2051012012000 HOLDING SPANNER FOR SPROCKETHOLDING SPANNER FOR SPROCKET
-
2159029072000 SPARK PLUG WRENCH 13/16SPARK PLUG WRENCH 13/16
-
2650329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
2758429059000 LOCTITE 648 GREEN 24MLLOCTITE 648 GREEN 24ML
-
2859029003000 CLUTCH HOLDERCLUTCH HOLDER
