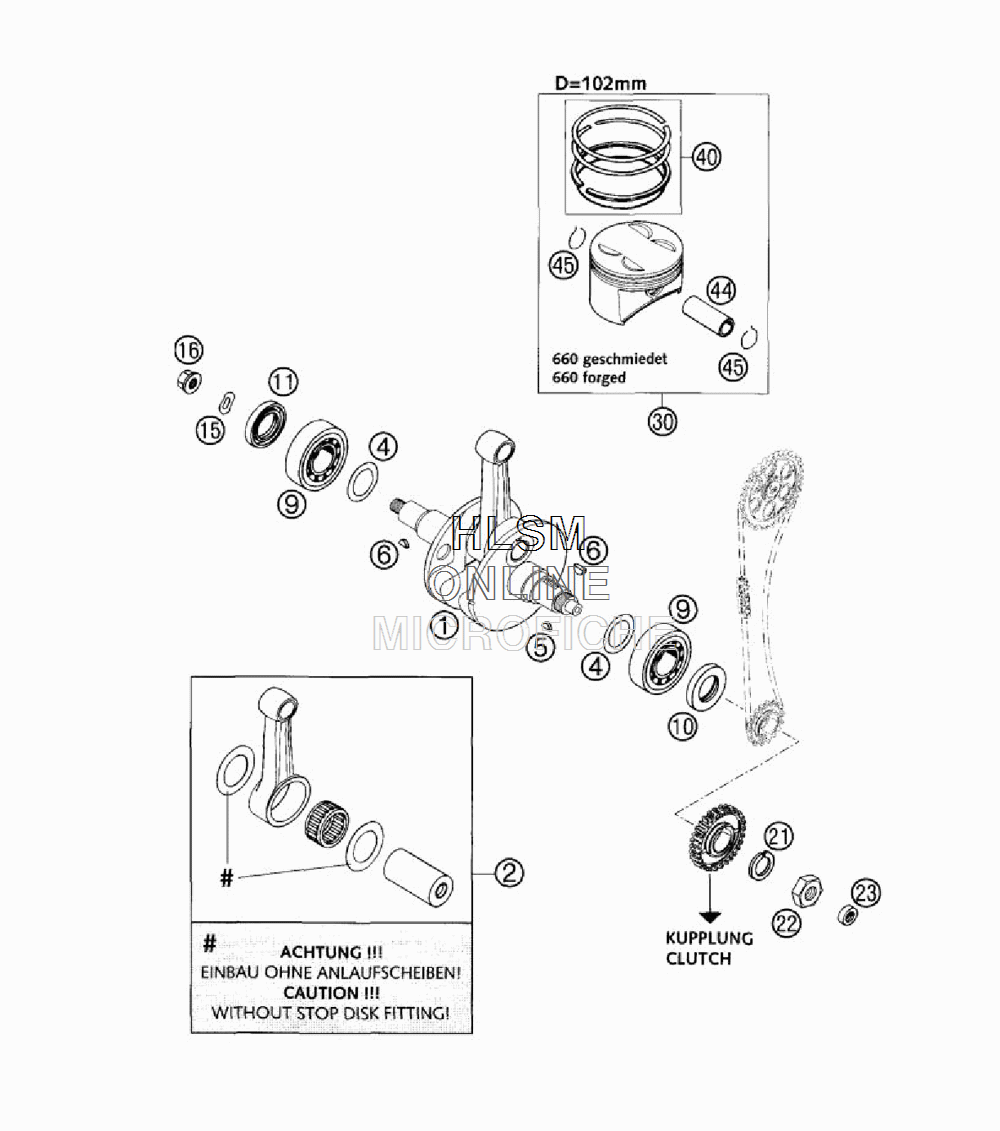

CRANKSHAFT W/ PISTON для Ktm 660 SMC - 2004 года выпуска

№

Артикул

Название
1

57330018000 CRANKSHAFT 80STROKE KICKST.

CRANKSHAFT 80STROKE KICKST.

0 ₽
2

58530015044 CONNECTING ROD REPAIR SET (L=141,5MM)

CONNECTING ROD REPAIR SET (L=141,5MM)

0 ₽
4

56530081000 SHIM WASHER 36X48X0,10

SHIM WASHER 36X48X0,10

350 ₽
4

56530081100 SHIM WASHER 36X48X0,15

SHIM WASHER 36X48X0,15

350 ₽
4

56530081300 SHIM WASHER 36X48X0,30

SHIM WASHER 36X48X0,30

350 ₽
5

0888030050 WOODRUFF KEY DIN6888-3X5X13

WOODRUFF KEY DIN6888-3X5X13

290 ₽
6

6946005 WOODRUFF KEY 5X6,5 HARDED

WOODRUFF KEY 5X6,5 HARDED

290 ₽
9

56530123000 CYL. ROLLER BEARING NJ 207 ECP

CYL. ROLLER BEARING NJ 207 ECP

24 360 ₽
10

0760304071 SHAFT SEAL RING 3OX40X7 BSL

SHAFT SEAL RING 3OX40X7 BSL

0 ₽
11

0760304772 SH.SEAL RING 30X47X7 BSL VITON

SH.SEAL RING 30X47X7 BSL VITON

5 490 ₽
15

0137120000 SPRING WASHER DIN0137-B12

SPRING WASHER DIN0137-B12

120 ₽
16

51030028100 COLLAR NUT M12X1 LEFT SW=17

COLLAR NUT M12X1 LEFT SW=17

2 780 ₽
21

58030019000 LOCKING RING VSK 20

LOCKING RING VSK 20

470 ₽
22

0936200155 HEXAGON NUT DIN0936-M20X1,5

HEXAGON NUT DIN0936-M20X1,5

2 080 ₽
23

0760122270 SHAFT SEAL RING 12 X 22 X 7 B

SHAFT SEAL RING 12 X 22 X 7 B

4 260 ₽
30

58530007300I PISTON I CPL. D=102MM

PISTON I CPL. D=102MM

128 850 ₽
30

58530007300II PISTON II CPL. D=102MM

PISTON II CPL. D=102MM

0 ₽
40

58530031144 PISTONRING SET ELKO

PISTONRING SET ELKO

0 ₽
44

58330833000 PISTON PIN 22 X 13 X 60

PISTON PIN 22 X 13 X 60

12 500 ₽
45

58430074000 CIRCLIP 22 X 1,6

CIRCLIP 22 X 1,6

2 570 ₽
