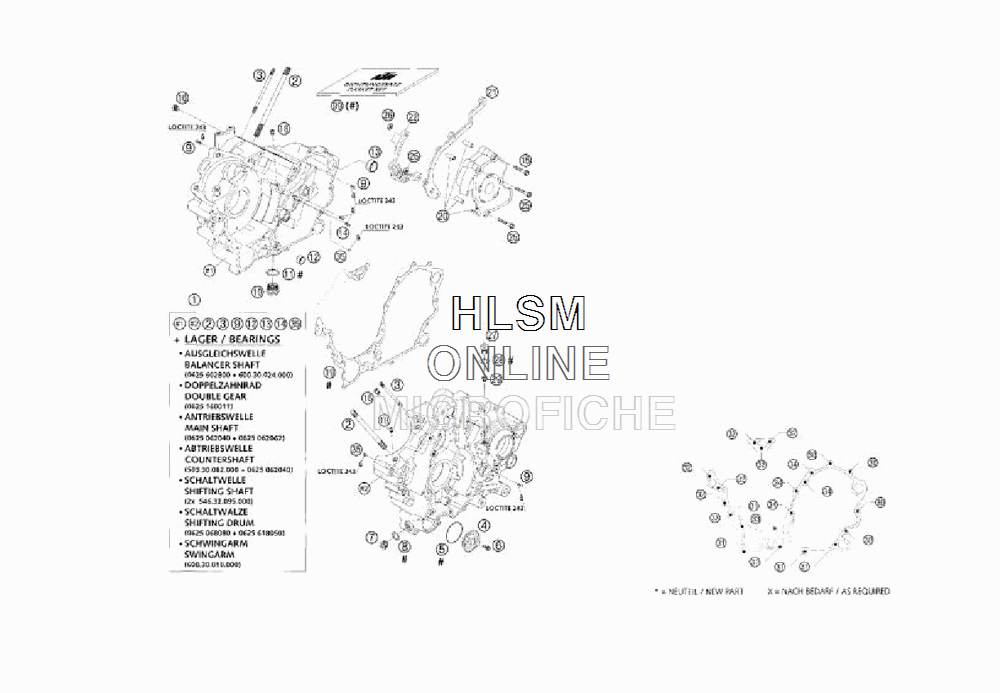

ENGINE CASE для Ktm 950 Adventure S - 2004 года выпуска
-
№АртикулНазвание
-
160030000044 ENGINE CASE CPL. W.BEARINGSENGINE CASE CPL. W.BEARINGS
-
260030043000 STUD M 10X161 10.9STUD M 10X161 10.9
-
360030043010 STUD M 6X101 10.9STUD M 6X101 10.9
-
459038041000 OIL FILTER COVEROIL FILTER COVER
-
50770400025 O-RING 40,00X2,50 NBR 70O-RING 40,00X2,50 NBR 70
-
60015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
760038033050 PLUG SCREW M14X1,5 ALU AHPLUG SCREW M14X1,5 ALU AH
-
80603142016 CU-SEAL RING 14X20X1,5CU-SEAL RING 14X20X1,5
-
90018050103 INT. TORX OVAL HEAD M 5X10 8.8INT. TORX OVAL HEAD M 5X10 8.8
-
1058038019050 DRAIN PLUG W MAGNETDRAIN PLUG W MAGNET
-
1158038017100 CU-SEAL RING DIN7603-22X27X2CU-SEAL RING DIN7603-22X27X2
-
1258330023000 DOWEL 17 X 14 X 9,5DOWEL 17 X 14 X 9,5
-
1360030023000 DOWEL 20,1X24X12DOWEL 20,1X24X12
-
140019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
150015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
1659030054000 JET 60 DELLORTO M6X0,75JET 60 DELLORTO M6X0,75
-
1857031523090 CARBURETOR JET DELLORTO 90CARBURETOR JET DELLORTO 90
-
1960030039000 ENGINE CASE GASKETENGINE CASE GASKET
-
2060030060044 CHAIN SPROCKET COVER CPL.CHAIN SPROCKET COVER CPL.
-
2160030047000 CHAIN FAIL. PROTECTIONCHAIN FAIL. PROTECTION
-
2260032063000 ADAPTER F. HYDR. CLUTCHADAPTER F. HYDR. CLUTCH
-
250015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
260985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
2749030029000 OIL DRAIN PLUG M10X1,5 AH-WS=6OIL DRAIN PLUG M10X1,5 AH-WS=6
-
280603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
2960038029000 REDUCING JET "30" M6X0,75REDUCING JET "30" M6X0,75
-
300015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
310015060603 HH COLLAR SCREW M 6X60 WS=8HH COLLAR SCREW M 6X60 WS=8
-
320015060653 HH COLLAR SCREW M 6X65 WS=8HH COLLAR SCREW M 6X65 WS=8
-
330015060753 HH COLLAR SCREW M 6X75 WS=8HH COLLAR SCREW M 6X75 WS=8
-
340015060903 HH COLLAR SCREW M 6X90 WS=8HH COLLAR SCREW M 6X90 WS=8
-
350551060050 THREAD PIN DIN0551-M 6X 5THREAD PIN DIN0551-M 6X 5
-
9960030099000 GASKET SET CPL.GASKET SET CPL.
