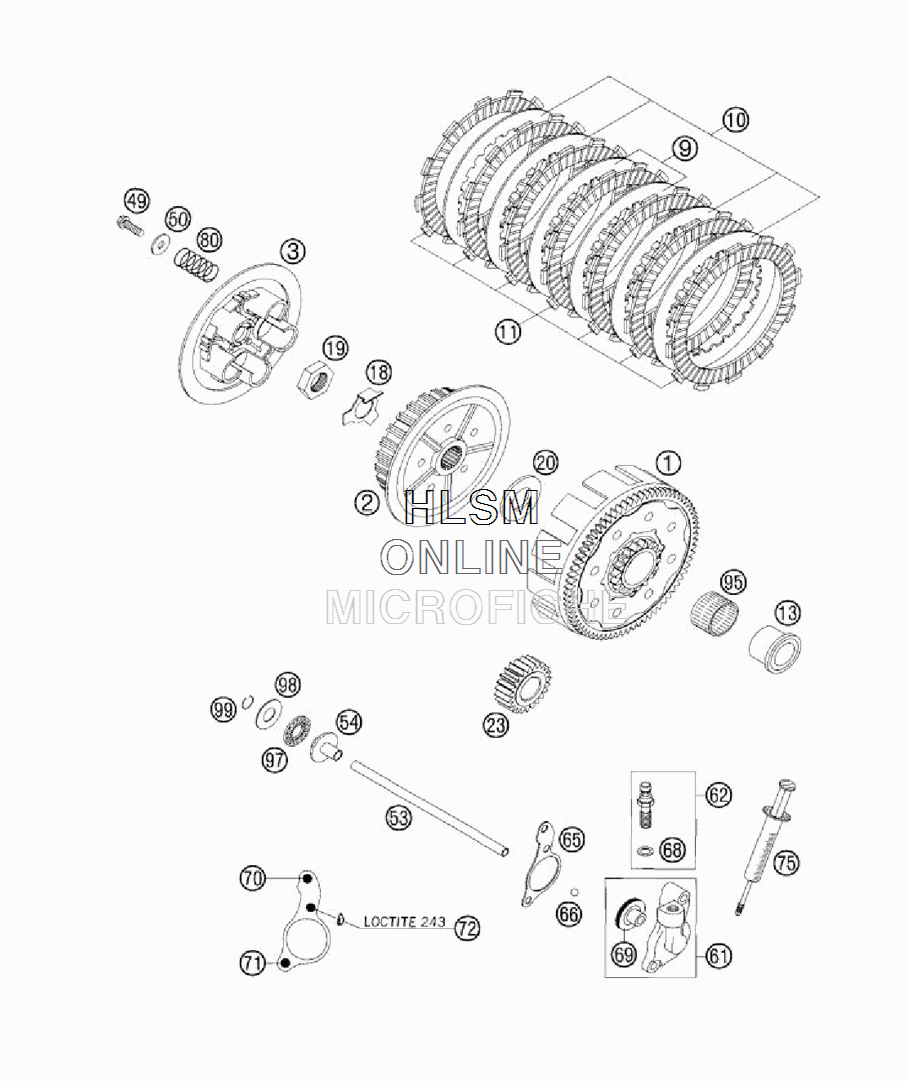

CLUTCH для Ktm 125 EXC SIXDAYS - 2005 года выпуска
-
№АртикулНазвание
-
150332000073 OUTER CLUTCH H.73-T (WITHOUT PRIMARY PINION)OUTER CLUTCH H.73-T (WITHOUT PRIMARY PINION)
-
250332002000 INNER CLUTCH HUBINNER CLUTCH HUB
-
350332003000 PRESSURE PLATEPRESSURE PLATE
-
950332010100 INTERMEDI. DISC STEEL 1,5MMINTERMEDI. DISC STEEL 1,5MM
-
1050332010000 INTERMEDIATE DISC ALU 1,5MMINTERMEDIATE DISC ALU 1,5MM
-
1150332011000 ORGANIC DISK 3MMORGANIC DISK 3MM
-
1350332013000 INNER RING 2OX26X25,9INNER RING 2OX26X25,9
-
1850332018000 SHEET METAL LOCK 1,5MMSHEET METAL LOCK 1,5MM
-
190936181505 HEXAGON NUT DINO936-M18X1,5 R.HEXAGON NUT DINO936-M18X1,5 R.
-
2050332020000 STOP DISK 20X39, 6X3STOP DISK 20X39, 6X3
-
2350332023023 PRIMARY PINION 23-TPRIMARY PINION 23-T
-
490015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
5050232050000 WASHER 6,2X18X2WASHER 6,2X18X2
-
5350332017200 PUSH ROD L=179MMPUSH ROD L=179MM
-
5450332054051 PRESSURE PIECEPRESSURE PIECE
-
6150332061044 CYLINDER CPL.CYLINDER CPL.
-
6250332062000 HOLLOW SCREW CPL. M10X1HOLLOW SCREW CPL. M10X1
-
6550332065051 CLUTCH RELEASE GASKET 0,3MMCLUTCH RELEASE GASKET 0,3MM
-
6550332065052 CLUTCH RELEASE GASKET 0,5MMCLUTCH RELEASE GASKET 0,5MM
-
6550332065053 CLUTCH RELEASE GASKET 0,75MMCLUTCH RELEASE GASKET 0,75MM
-
660401070003 BALL DIN5401-7BALL DIN5401-7
-
6842013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
6950332066000 PISTON W. O-RINGPISTON W. O-RING
-
700015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
710015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
720015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
7550329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
8050332005000 CLUTCH SPRING 2,3X39,5CLUTCH SPRING 2,3X39,5
-
9556532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
9754637097200 AXIAL NEEDLE BEARING AXK 1226AXIAL NEEDLE BEARING AXK 1226
-
9854637098300 AXIAL WASHER 12,5X25.8X1,5AXIAL WASHER 12,5X25.8X1,5
-
990993012000 CIRCLIP DIN7993-RW12CIRCLIP DIN7993-RW12
