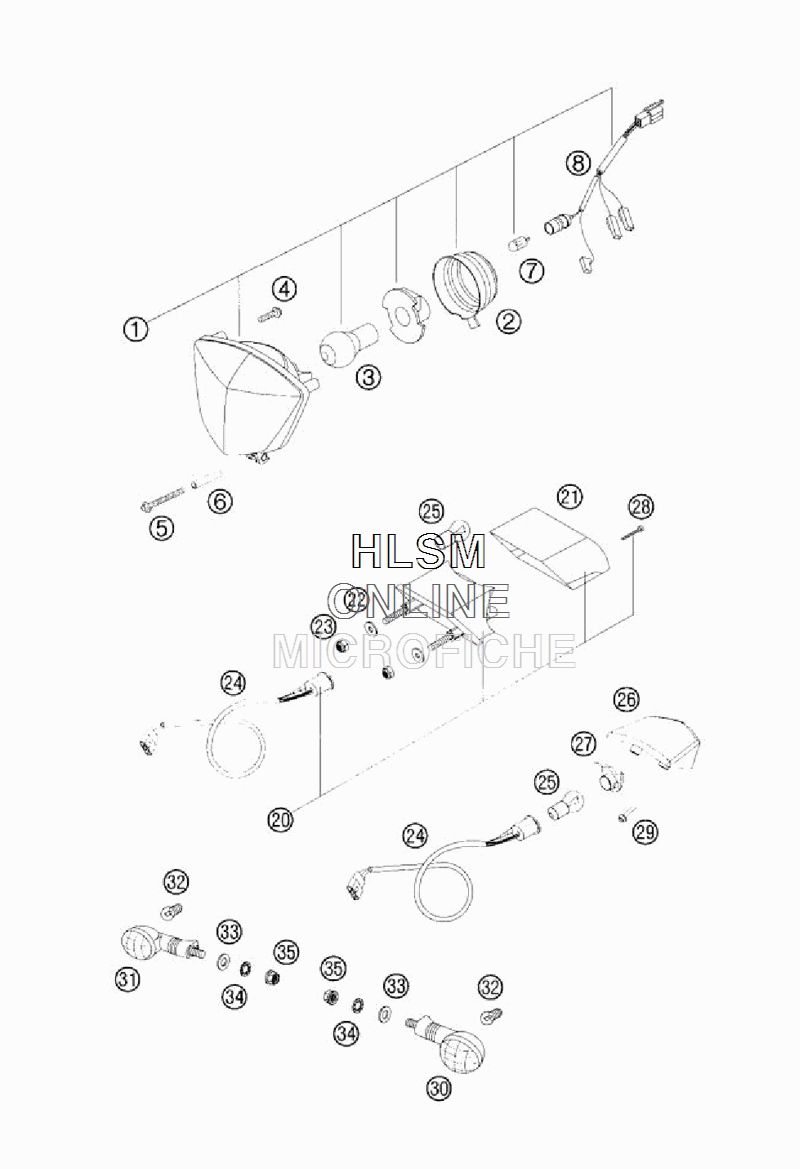

LIGHTING SYSTEM для Ktm 125 SXS - 2005 года выпуска
-
№АртикулНазвание
-
154814001000 HEAD LIGHT CPL.HEAD LIGHT CPL.
-
254814001050 RUBBER CAP FOR HEAD LIGHTRUBBER CAP FOR HEAD LIGHT
-
344111038000 BILUX-BULB 12V 35/35W BA20DBILUX-BULB 12V 35/35W BA20D
-
40081500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
50014050603 HH COLLAR SCREW M 5X60 WS=6HH COLLAR SCREW M 5X60 WS=6
-
654808008001 HOSE 6X10 PER METREHOSE 6X10 PER METRE
-
749011435000 BULB 12V 5W (W2,1X9,5D)BULB 12V 5W (W2,1X9,5D)
-
854811001050 CABLE FOR HEAD LIGHTCABLE FOR HEAD LIGHT
-
2050314040100 REAR LIGHT CPL.REAR LIGHT CPL.
-
2150314041100 REAR LIGHT LENSREAR LIGHT LENS
-
220021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
230985060003 SELF LOCK NUT DIN0985-M 6SELF LOCK NUT DIN0985-M 6
-
2450311076000 WIRING HARNESS REARWIRING HARNESS REAR
-
2558414042000 BULB 12V 21/5W (BAY15S) REINFO.BULB 12V 21/5W (BAY15S) REINFO.
-
2650314041200 REAR LIGHT LENSREAR LIGHT LENS
-
2754811076050 LAMP HOLDERLAMP HOLDER
-
280981350323 SHEET MET SCR. DIN79813,5X32SHEET MET SCR. DIN79813,5X32
-
290017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
3054814025000 FLASHER CPL. FRONT L/S REAR R/SFLASHER CPL. FRONT L/S REAR R/S
-
3154814026000 FLASHER CPL.FRONT R/S REAR L/SFLASHER CPL.FRONT R/S REAR L/S
-
3244111015100 BULB 12V 10W (BA15S)BULB 12V 10W (BA15S)
-
330125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
340797100003 LOCK WASHER DIN6797-J10,5Z1LOCK WASHER DIN6797-J10,5Z1
-
3558414030000 HH COLLAR NUT M1OX1,25 WS=13HH COLLAR NUT M1OX1,25 WS=13
