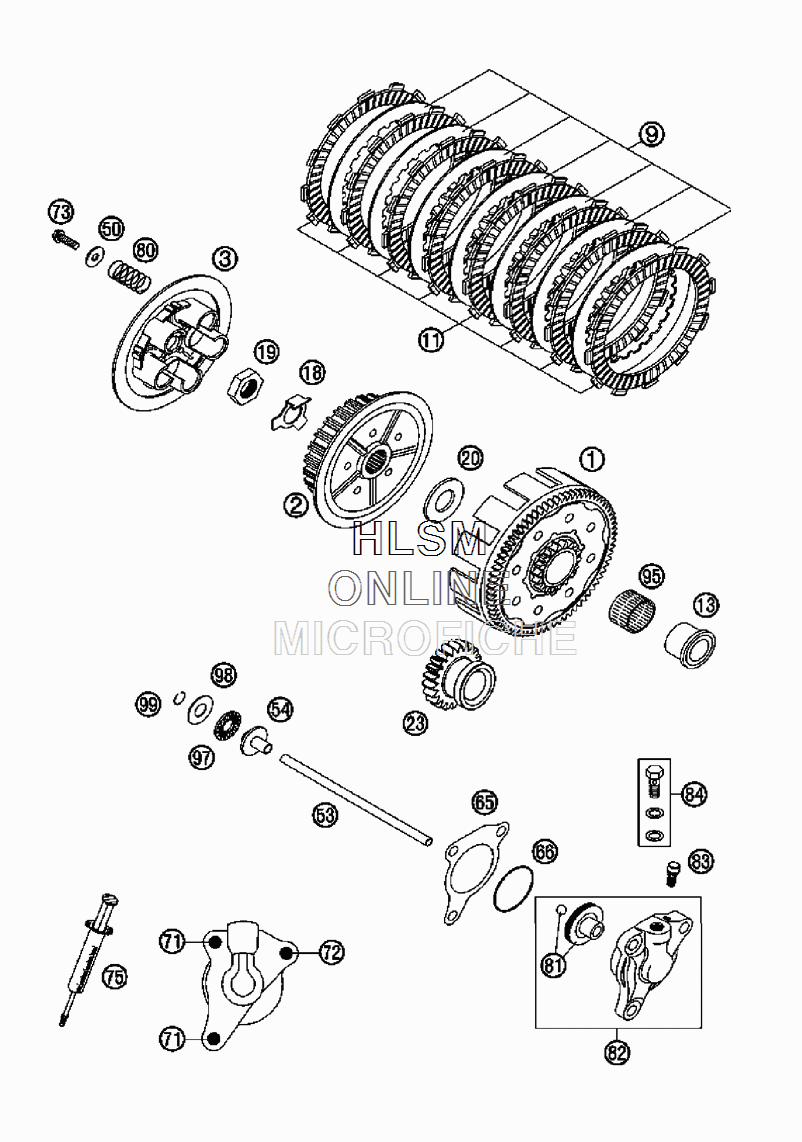

CLUTCH для Ktm 250 SXF - 2005 года выпуска
-
№АртикулНазвание
-
177032001000 OUTER CLUTCH CPL.OUTER CLUTCH CPL.
-
277032002000 INNER CLUTCH HUBINNER CLUTCH HUB
-
377032003000 PRESSURE PLATEPRESSURE PLATE
-
977032010000 INTERMEDI. DISC STEELINTERMEDI. DISC STEEL
-
1177032011000 LINING DISC 3,0MMLINING DISC 3,0MM
-
1350332013000 INNER RING 20X26X25,9INNER RING 20X26X25,9
-
1850332018000 SHEET METAL LOCK 1,5MMSHEET METAL LOCK 1,5MM
-
190936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
2050332020000 STOP DISK 20X39,6X3STOP DISK 20X39,6X3
-
2377032000122 PRIMARY GEAR 22T.PRIMARY GEAR 22T.
-
5050232050000 WASHER 6,2X18X2WASHER 6,2X18X2
-
5377032054000 PUSH RODPUSH ROD
-
5450332054051 PRESSURE PIECEPRESSURE PIECE
-
6559032065000 GASKET FOR SLAVE CYLINDERGASKET FOR SLAVE CYLINDER
-
660770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
710015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
720015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
730015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
7550329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
8077032005000 CLUTCH SPRINGCLUTCH SPRING
-
8159032066000 PISTON WITH O-RING AND BALLPISTON WITH O-RING AND BALL
-
8259032061044 OUTPUT CYLINDER CPL.OUTPUT CYLINDER CPL.
-
8354732064000 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
8459032062000 HOLLOW SCREW HYDR. CLUTCH CPL.HOLLOW SCREW HYDR. CLUTCH CPL.
-
9556532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
9754637097200 AXIAL NEEDLE BEARING AXK 1226AXIAL NEEDLE BEARING AXK 1226
-
9854637098200 AXIAL WASHER AS1226 12X26X1AXIAL WASHER AS1226 12X26X1
-
990993012000 CIRCLIP DIN7993-RW12CIRCLIP DIN7993-RW12
