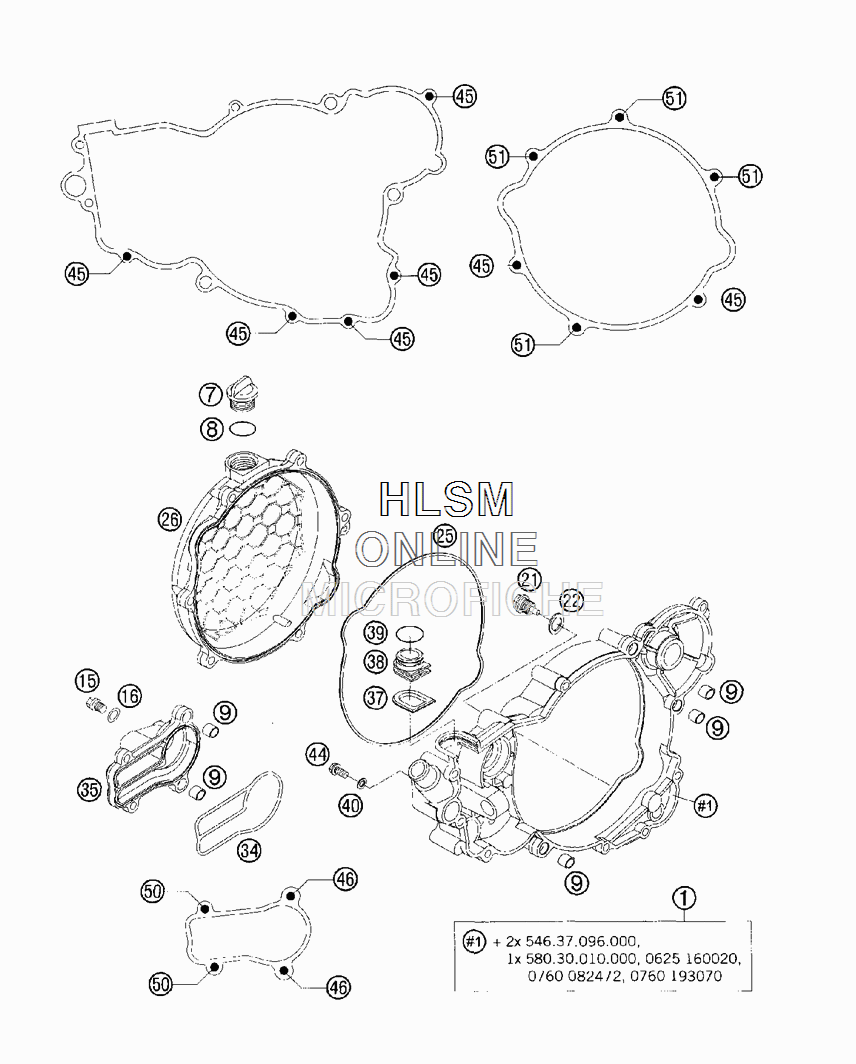

CLUTCH COVER для Ktm 250 SXS - 2005 года выпуска

№

Артикул

Название
1

54830001044 INTERM. CLUTCH COVER CPL

INTERM. CLUTCH COVER CPL

49 850 ₽
7

58030020000 PLUG M 24X3

PLUG M 24X3

1 080 ₽
8

0770191015 O-RING 19,00X3,00 NBR

O-RING 19,00X3,00 NBR

290 ₽
9

49030090000 DOWEL 9,8 X 7 X 10

DOWEL 9,8 X 7 X 10

290 ₽
15

0910100003 PLUG DIN0910-M 10X1

PLUG DIN0910-M 10X1

790 ₽
16

0603100141 COPPER GASKET DIN7603-10X1 4X1

COPPER GASKET DIN7603-10X1 4X1

290 ₽
21

58030021000 OIL DRAIN PLUG W.MAG. M 12X1,5

OIL DRAIN PLUG W.MAG. M 12X1,5

2 800 ₽
22

58038022000 CU-SEAL RING DIN7603-12X18X1,5

CU-SEAL RING DIN7603-12X18X1,5

440 ₽
25

54830025000 GASKET E CLU.COVER 250/300 03

GASKET E CLU.COVER 250/300 03

2 690 ₽
26

5483002600098 CLUTCH COVER OUTSIDE 03

CLUTCH COVER OUTSIDE 03

17 210 ₽
34

54835003000 GASKET WAPU-COVER

GASKET WAPU-COVER

1 380 ₽
35

54835001000 WATERPUMP COVER

WATERPUMP COVER

9 230 ₽
37

54637107000 SEALING ELEMENT BOTTOM

SEALING ELEMENT BOTTOM

1 730 ₽
38

54837091000 SEALING CARRIER

SEALING CARRIER

930 ₽
39

0770021160 O-RING 18,72X2,62

O-RING 18,72X2,62

590 ₽
40

0603061001 CU-SEAL RING DIN7603-6X10X1

CU-SEAL RING DIN7603-6X10X1

320 ₽
44

0015060123 HH COLLAR SCREW M 6X12 WS=8

HH COLLAR SCREW M 6X12 WS=8

500 ₽
45

0015060203 HH COLLAR SCREW M 6X20 WS=8

HH COLLAR SCREW M 6X20 WS=8

500 ₽
46

0015060253 HH COLLAR SCREW M 6X25 WS=8

HH COLLAR SCREW M 6X25 WS=8

560 ₽
50

0015060553 HH COLLAR SCREW M 6X55 WS=8

HH COLLAR SCREW M 6X55 WS=8

470 ₽
51

0015060603 HH COLLAR SCREW M 6X60 WS=8

HH COLLAR SCREW M 6X60 WS=8

560 ₽
