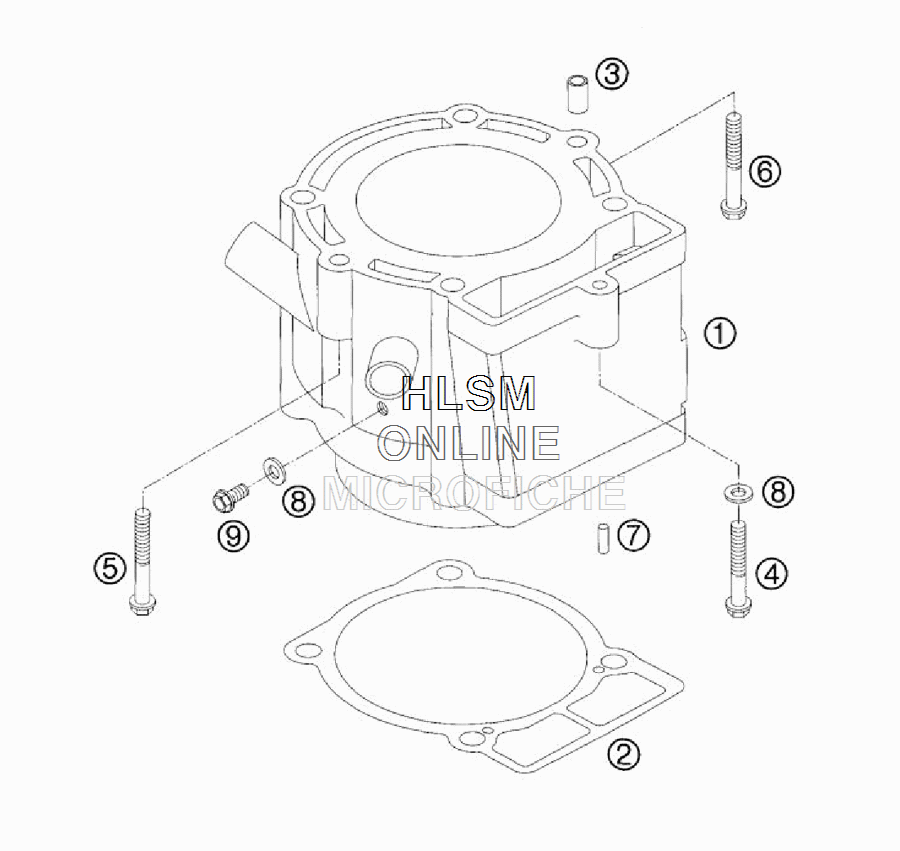

CYLINDER для Ktm 450 SMR - 2005 года выпуска
-
№АртикулНазвание
-
159430005000 CYLINDER D=95/L=68CYLINDER D=95/L=68
-
259030035050 CYLINDER BASE GASKET 0,5MMCYLINDER BASE GASKET 0,5MM
-
359030023000 DOWEL 6X8X11,5DOWEL 6X8X11,5
-
40015060303 HH COLLAR SCREW M6X30 WS=8HH COLLAR SCREW M6X30 WS=8
-
50015060403 HHCOLLAR SCREW M6X4O WS=8HHCOLLAR SCREW M6X4O WS=8
-
60015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
70402040980 NEEDLE ROL, DIN5402 NRB 4X9,8NEEDLE ROL, DIN5402 NRB 4X9,8
-
80603061001 CU-SEAL RING DIN7603-6X1OX1CU-SEAL RING DIN7603-6X1OX1
-
90015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
