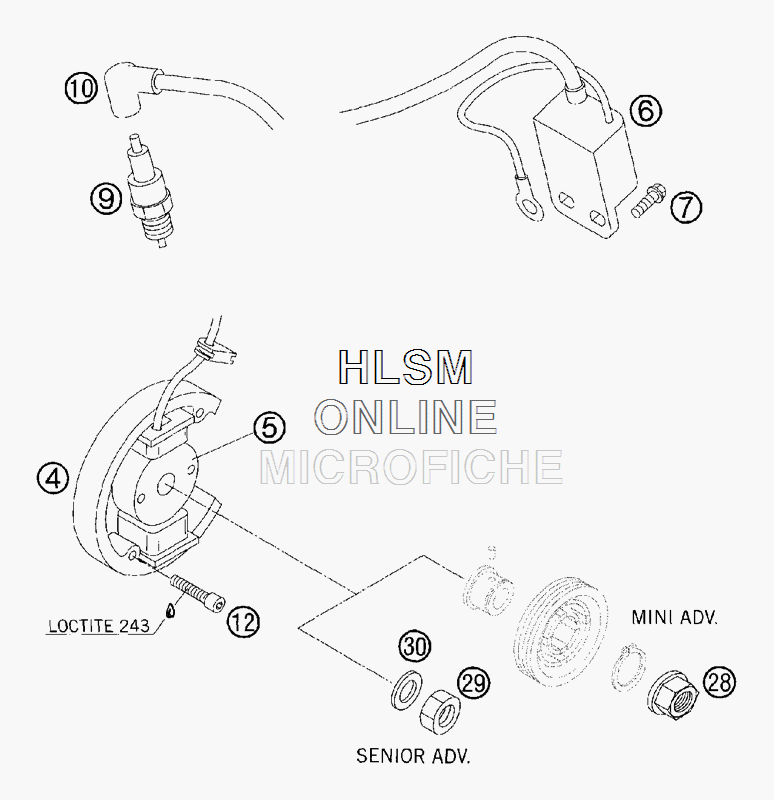

IGNITION SYSTEM для Ktm 50 Mini Adventure - 2005 года выпуска
-
№АртикулНазвание
-
445139004000 FLYWHEEL STATOR 5000MFLYWHEEL STATOR 5000M
-
545139005100 FLYWEEL ROTORFLYWEEL ROTOR
-
645139006000 IGNITION COIL 50CCMIGNITION COIL 50CCM
-
70015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
954331093410 SPARK PLUG NGK BR8ECMSPARK PLUG NGK BR8ECM
-
1054531010000 SPARK PLUG CAP LB05EMH NGKSPARK PLUG CAP LB05EMH NGK
-
120912050253 AH SCREW DIN0912-M 5X25AH SCREW DIN0912-M 5X25
-
2858414030000 HHCOLLAR NUTM10X1,25 WS=13HHCOLLAR NUTM10X1,25 WS=13
-
2945130028000 SPECIAL NUT M10X1,25X6SPECIAL NUT M10X1,25X6
-
3045132020000 WASHER 10,4X16,8X0,4WASHER 10,4X16,8X0,4
