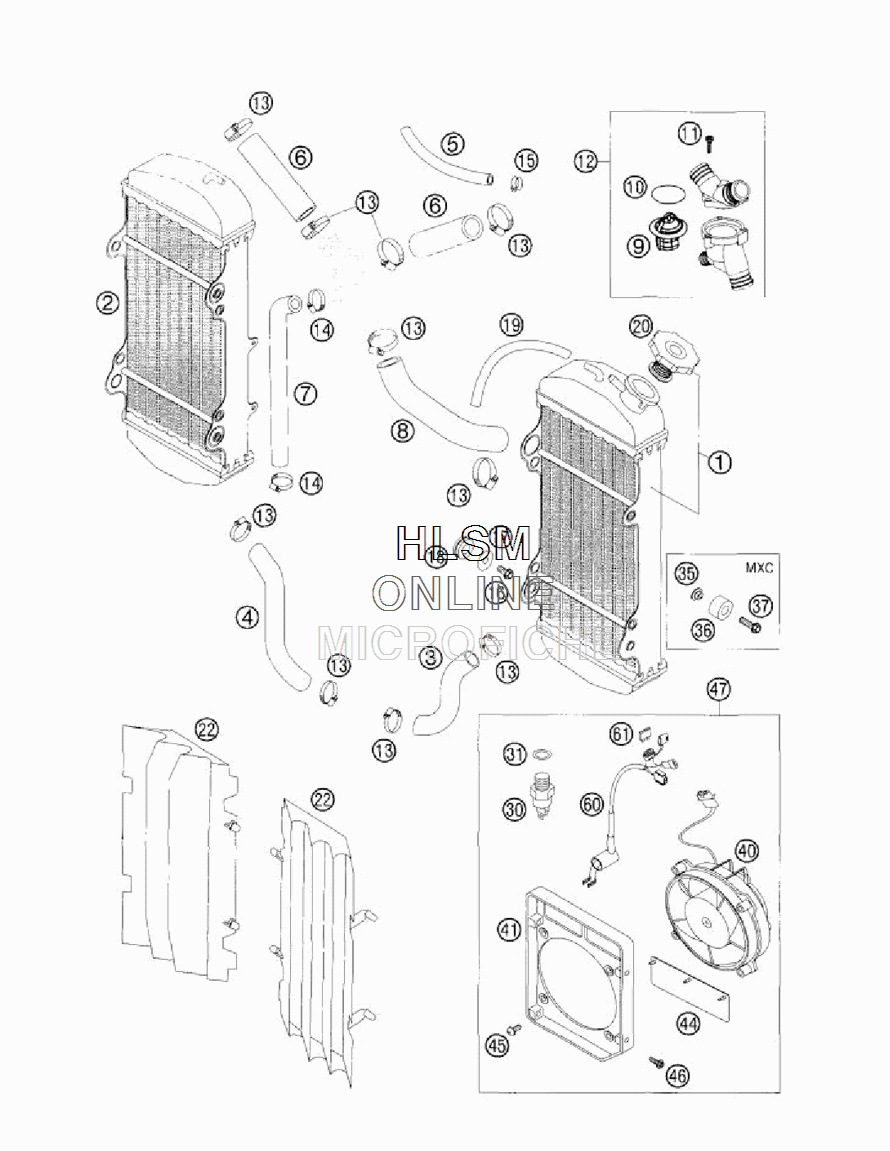

COOLING SYSTEM для Ktm 525 EXC RACING SIXDAYS - 2005 года выпуска
-
№АртикулНазвание
-
159035007300 RADIATOR US 45.407RADIATOR US 45.407
-
259035008400 RADIATOR R/S 45.409RADIATOR R/S 45.409
-
359035024100 RADIATOR HOSE US RAD.-CYL.RADIATOR HOSE US RAD.-CYL.
-
459035124100 RADIATORHOSER/SRAD.-CYL.RADIATORHOSER/SRAD.-CYL.
-
554435024001 HOSE ID 7,5 PER METERHOSE ID 7,5 PER METER
-
659035126100 RADIATOR HOSE RAD.-THERMOS.RADIATOR HOSE RAD.-THERMOS.
-
759035025101 RADIATOR HOSE SECONDARY (RADIATOR-THERMOSTAT)RADIATOR HOSE SECONDARY (RADIATOR-THERMOSTAT)
-
859035025100 RADIATOR HOSE THERMOS.-HEADRADIATOR HOSE THERMOS.-HEAD
-
959435017000 THERMOSTAT 70 DEGREESTHERMOSTAT 70 DEGREES
-
100770320020 O-RING 32,00X200O-RING 32,00X200
-
110016040183 SCREW FOR PLASTIC D=4X18SCREW FOR PLASTIC D=4X18
-
1259435013044 THERMOSTAT CPL. 70 DEGREESTHERMOSTAT CPL. 70 DEGREES
-
1310001020000 HOSE CLAMP GEMI 16-27HOSE CLAMP GEMI 16-27
-
1458335099000 HOSE CLAMP GEMI 10-16HOSE CLAMP GEMI 10-16
-
1550231005000 HOSE CLAMP YDNAC 10119 11MMHOSE CLAMP YDNAC 10119 11MM
-
160015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
170021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
1841001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
1931007107001 PVC-HOSE 6X9 MM PER METREPVC-HOSE 6X9 MM PER METRE
-
2059035009000 RADIAT.CAP 20,3PSI (1,4BAR)RADIAT.CAP 20,3PSI (1,4BAR)
-
2259035040000 RAD. PROTECLRAC. COLORLESSRAD. PROTECLRAC. COLORLESS
-
225903504000004 RADIAT PROTECT RAC. ORANGERADIAT PROTECT RAC. ORANGE
-
3058035045000 THERMOSWITCH 80-85 DGTHERMOSWITCH 80-85 DG
-
310603142015 ALUSEALRINGDIN7603-14X20X1,5ALUSEALRINGDIN7603-14X20X1,5
-
3550308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
3650307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
370015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
4058435041000 FAN CPL. 12VFAN CPL. 12V
-
4159035044000 FAN CAPFAN CAP
-
4458435044050 FAN FLAP RUBBER XFAN FLAP RUBBER X
-
450081500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
460017060203 SPECIAL SCREW T60 6X20 WS=6SPECIAL SCREW T60 6X20 WS=6
-
4759035041044 FAN CPL. RACINGFAN CPL. RACING
-
6059011079000 FAN WIRING HARNESSFAN WIRING HARNESS
-
6158011109005 FUSE5AFUSE5A
