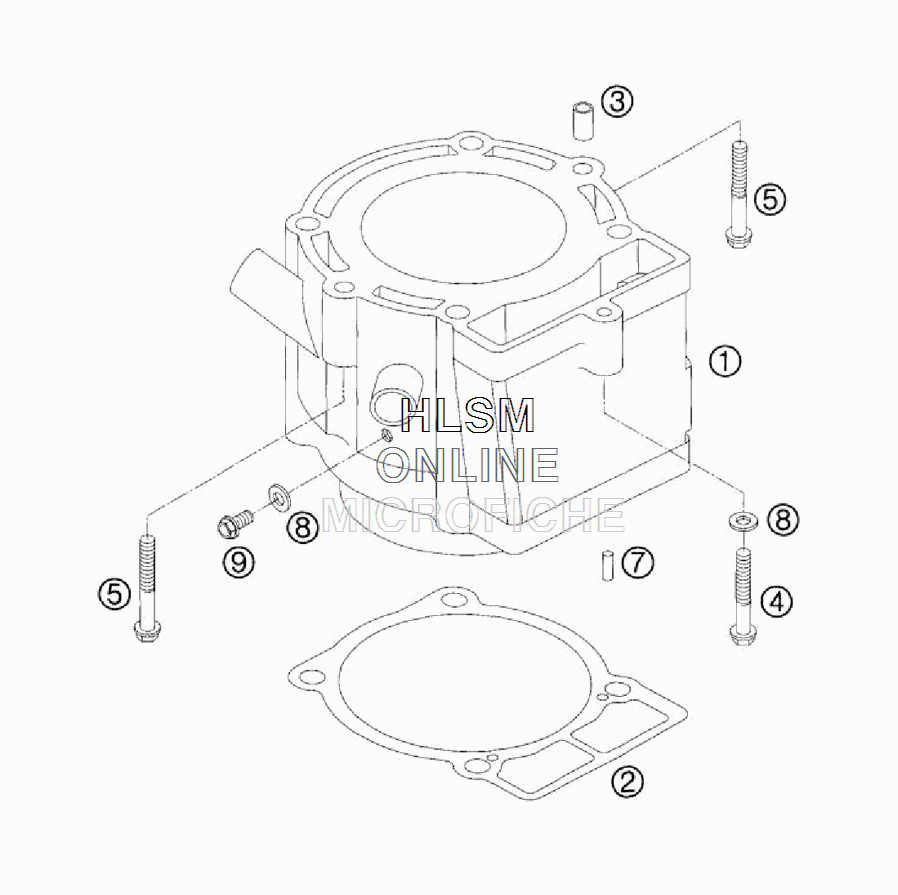

CYLINDER для Ktm 525 EXC RFS - 2005 года выпуска
-
№АртикулНазвание
-
159030005000 CYLINDER 95MMCYLINDER 95MM
-
259030035050 CYLINDER BASE GASKET 0,5MMCYLINDER BASE GASKET 0,5MM
-
359030023000 DOWEL 6X8X11,5DOWEL 6X8X11,5
-
40015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
50015060453 HH COLLAR SCREW M 6X45 WS=8HH COLLAR SCREW M 6X45 WS=8
-
70402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
80603061001 CU-SEAL RING DIN7603-6X1OX1CU-SEAL RING DIN7603-6X1OX1
-
90015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
