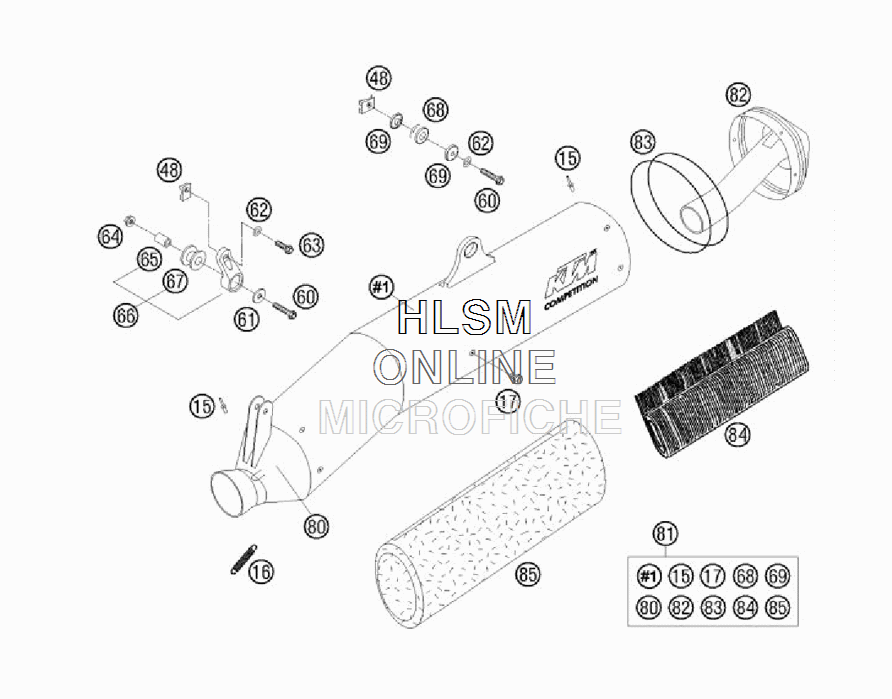

EXHAUST SILENCER для Ktm 625 SXC - 2005 года выпуска
-
№АртикулНазвание
-
150011480802 DUMMY RIVET 4,8X 8,0 NIRODUMMY RIVET 4,8X 8,0 NIRO
-
1650305016000 TEN.SPRING L=62MM EY. MOVEABLETEN.SPRING L=62MM EY. MOVEABLE
-
170009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
4854603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
600015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
610021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
620137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
630015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
6456509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
6554305069000 BUSHING 7X12X16BUSHING 7X12X16
-
6658305165244 SILENCER BRACKET CPL. SHORTSILENCER BRACKET CPL. SHORT
-
6754305068100 DAMP. COMPONENT SILICONE GREYDAMP. COMPONENT SILICONE GREY
-
6854605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
6954605069000 BUSHING 7,5X12X28X7,8BUSHING 7,5X12X28X7,8
-
8058305081001 SIL.-CONNECT.CAP CPL.SIL.-CONNECT.CAP CPL.
-
8158305081200 SILENCER SC THROTTLEDSILENCER SC THROTTLED
-
8158305081300 SILENCER SC UNTHROTTLEDSILENCER SC UNTHROTTLED
-
8258305081203 SIL.-END CAP THROTTLEDSIL.-END CAP THROTTLED
-
8258305081204 SIL.-END CAP UNTHROTTLEDSIL.-END CAP UNTHROTTLED
-
830770223601 O-RING 82,14X3,53 SILICONEO-RING 82,14X3,53 SILICONE
-
8458305078002 STUFFING YARN REAR 90 GRAMMSTUFFING YARN REAR 90 GRAMM
-
8558305078000 STUFFING YARN FRONT 400 GRAMMSTUFFING YARN FRONT 400 GRAMM
