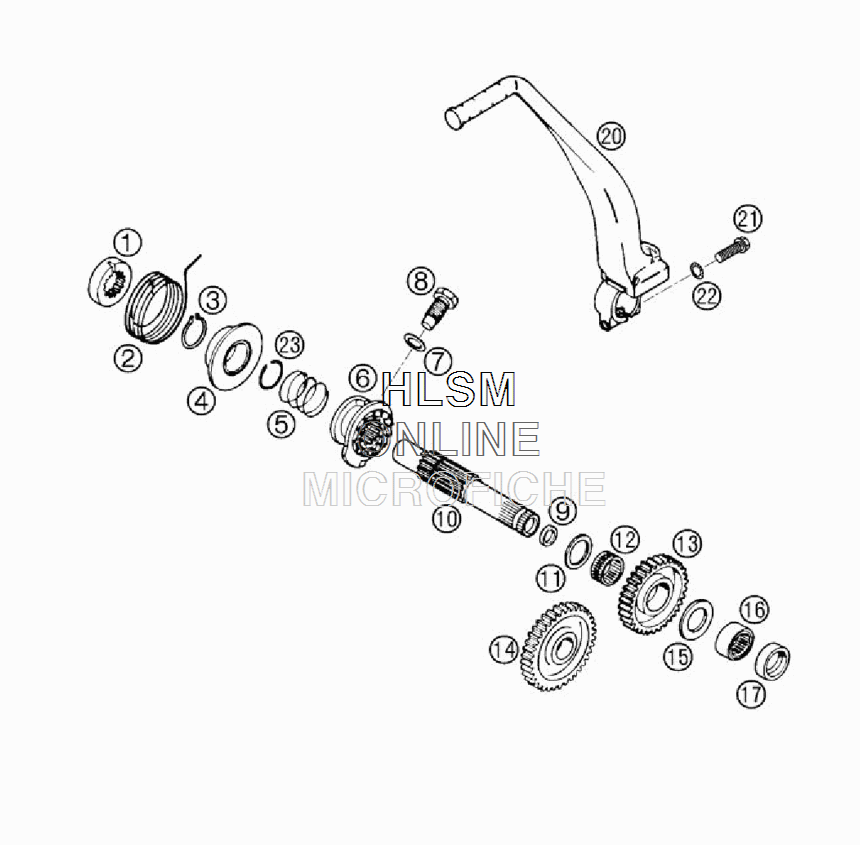

KICKSTARTER для Ktm 640 ADVENTURE - 2005 года выпуска
-
№АртикулНазвание
-
158033026200 DRIVING HUBDRIVING HUB
-
258033020000 KICKSTARTER SPRINGKICKSTARTER SPRING
-
352033096000 LOCK RING DIN0471-25X1,64SDLOCK RING DIN0471-25X1,64SD
-
458033037000 SPRING BUSHINGSPRING BUSHING
-
558033028000 RATCHET GEAR SPRING 1,2 MMRATCHET GEAR SPRING 1,2 MM
-
658033023200 RATCHET GEAR 24-TRATCHET GEAR 24-T
-
758038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
858033033000 STOP SCREW M12X1,5STOP SCREW M12X1,5
-
954632090000 SEAL RING DH/GR 12X16X3SEAL RING DH/GR 12X16X3
-
1058033021300 KICKSTARTER SHAFTKICKSTARTER SHAFT
-
1158033031000 STOP DISK 22,2 X 30 X 1,5STOP DISK 22,2 X 30 X 1,5
-
1256533098000 NEEDLE BEARING K22X26X13HNEEDLE BEARING K22X26X13H
-
1358033022700 KICKSTARTER GEAR 35-T LOCKING TOOTH 24-TKICKSTARTER GEAR 35-T LOCKING TOOTH 24-T
-
1458033024000 INTERMEDIATE GEAR 37-TINTERMEDIATE GEAR 37-T
-
1556532012000 STOP DISK 22,2 X 35 X 2STOP DISK 22,2 X 35 X 2
-
1658033090000 NEEDLE BEARING RNA 4903NEEDLE BEARING RNA 4903
-
170760223270 SHAFT SEAL RING 22X32X7 BSLSHAFT SEAL RING 22X32X7 BSL
-
2058333036044 KICKSTARTER CPL. ALUKICKSTARTER CPL. ALU
-
210015080253 HH COLLAR SCREW M 8X25 WS=10HH COLLAR SCREW M 8X25 WS=10
-
2236003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
2352033090100 LOCK RING 25X1,2LOCK RING 25X1,2
