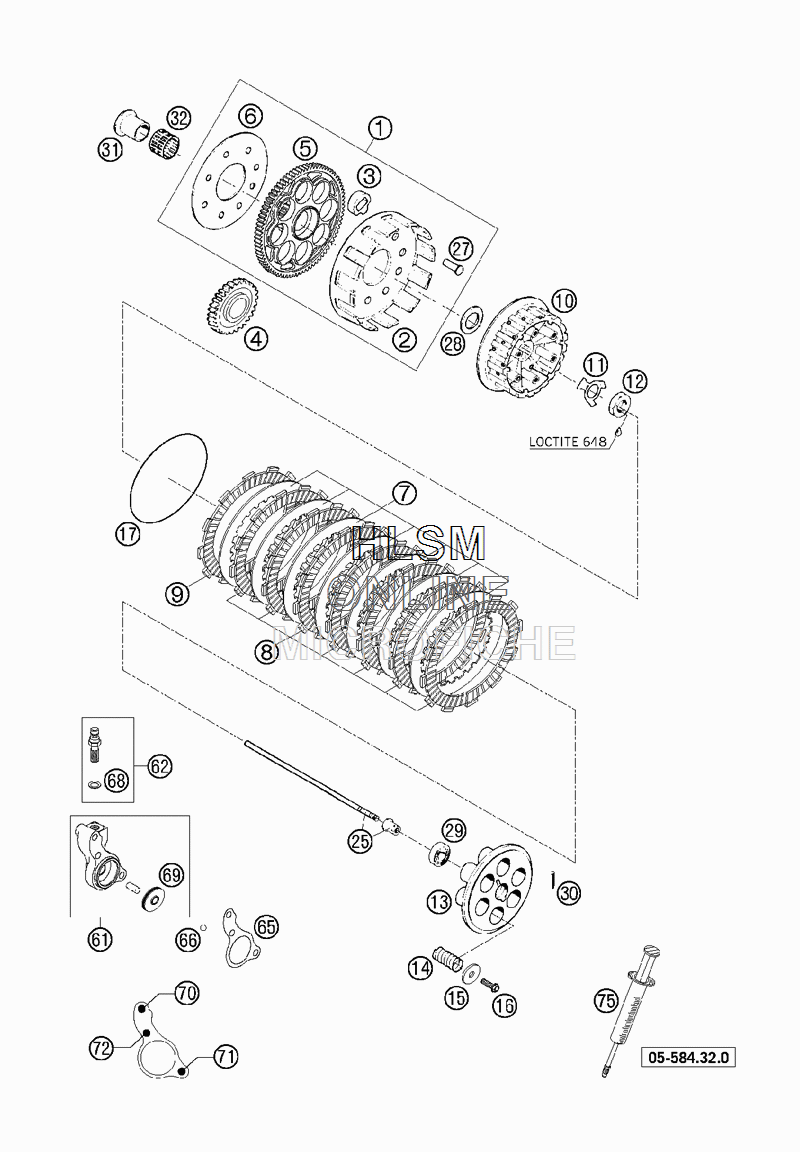

CLUTCH для Ktm 640 SUPERMOTO BLUE CHASSIS - 2005 года выпуска
-
№АртикулНазвание
-
158432001144 OUT.CLUTCH HUB CPL.79-TOUT.CLUTCH HUB CPL.79-T
-
258432001000 OUTER CLUTCH HUB LOOSEOUTER CLUTCH HUB LOOSE
-
358332026000 DAMPING ELEMENTDAMPING ELEMENT
-
458532000131 PRIMARY GEAR WHEEL 31-TPRIMARY GEAR WHEEL 31-T
-
558532000079 CLUTCH WHEEL 79-TCLUTCH WHEEL 79-T
-
658332028000 BRACKET 57 X 132 X 1,5BRACKET 57 X 132 X 1,5
-
758332112000 STEEL DISK 1,5 MMSTEEL DISK 1,5 MM
-
858332011300 LINING DISK 2,7MM FCCLINING DISK 2,7MM FCC
-
958332111300 LINING DISK TURN OUT FCCLINING DISK TURN OUT FCC
-
1058332002300 INNER CLUTCH HUBINNER CLUTCH HUB
-
1158332018000 LOCK WASHERLOCK WASHER
-
120936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
1358332003300 PRESSURE CAPPRESSURE CAP
-
1458332080000 CLUTCH SPRING 2,8 X 37CLUTCH SPRING 2,8 X 37
-
1558432081000 WASHER 6,5 X 20 X 2WASHER 6,5 X 20 X 2
-
160015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
170770116030 O-RING 116,00X3,00 HNBR 70O-RING 116,00X3,00 HNBR 70
-
2557332017044 PUSH ROD L=215MM CPL. WITH PRESSURE BOLTPUSH ROD L=215MM CPL. WITH PRESSURE BOLT
-
2758332007000 RIVET 6 X 23 X 11,2RIVET 6 X 23 X 11,2
-
2857532013000 SUPPORTWASHER 22,2X35X3 HARDE.SUPPORTWASHER 22,2X35X3 HARDE.
-
290625060016 GROOV.BALL BEAR. 6001.2RSR C3GROOV.BALL BEAR. 6001.2RSR C3
-
300094020163 PIN DIN0094-2,0X16PIN DIN0094-2,0X16
-
3150332070000 INNER RING WITH COLLARINNER RING WITH COLLAR
-
3256532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
6150332061044 CYLINDER CPL.CYLINDER CPL.
-
6250332062000 HOLLOW SCREW CPL. M 10X1HOLLOW SCREW CPL. M 10X1
-
6558632065000 CLUTCH RELEASE GASKETCLUTCH RELEASE GASKET
-
660401070003 BALL DIN5401-7BALL DIN5401-7
-
6842013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
6950332066000 PISTON W. O-RINGPISTON W. O-RING
-
700912060303 AH SCREW DIN0912-M 6X30AH SCREW DIN0912-M 6X30
-
710984060163 AH SCREW DIN6912-M 6X16 WITH LOW HEADAH SCREW DIN6912-M 6X16 WITH LOW HEAD
-
720912060253 AH SCREW DIN0912-M 6X25AH SCREW DIN0912-M 6X25
-
7550329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
