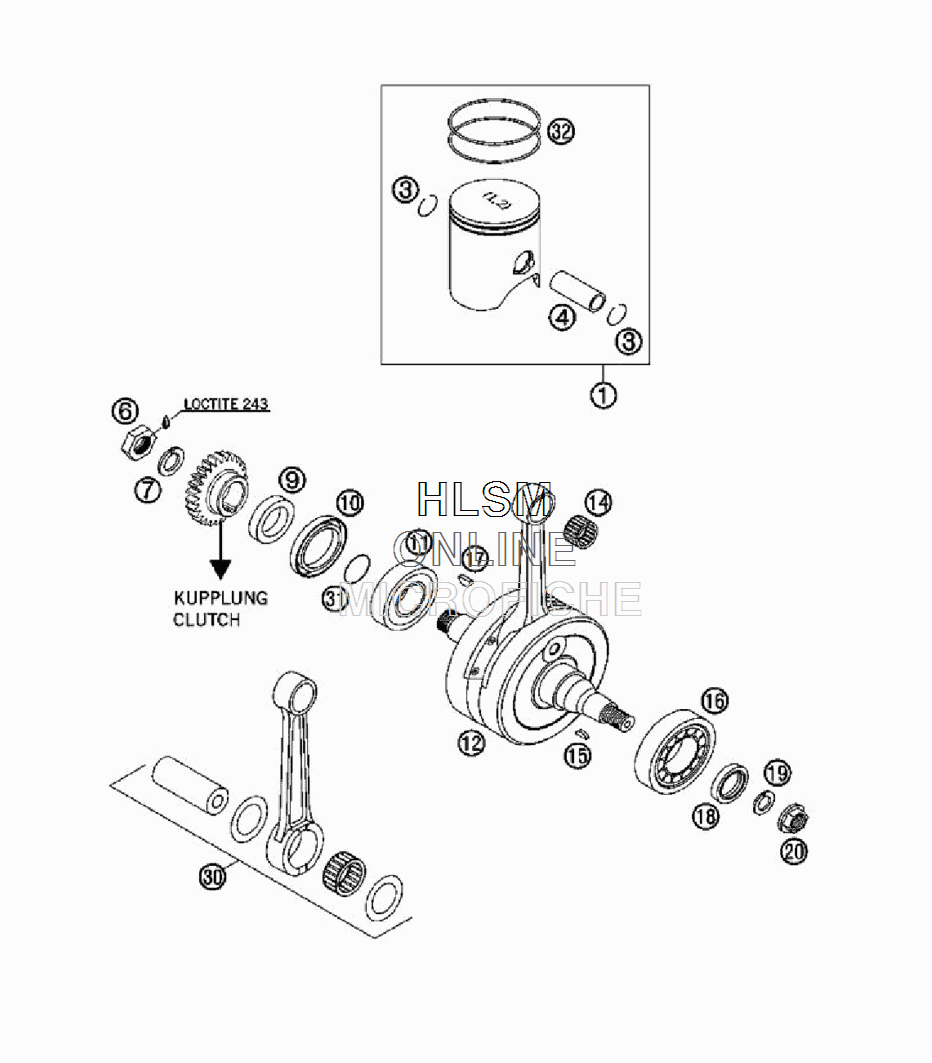

CRANKSHAFT W/ PISTON для Ktm 250 SX - 2006 года выпуска
-
№АртикулНазвание
-
154830007200I PISTON CPL. 250 2 RINGSPISTON CPL. 250 2 RINGS
-
154830007200II PISTON CPL. 250 2 RINGSPISTON CPL. 250 2 RINGS
-
354030074000 WIRE LOCK RING C18X1,5WIRE LOCK RING C18X1,5
-
454830233000 PISTON PINPISTON PIN
-
654630029000 HEX.NUT L/SH M18X1,5HEX.NUT L/SH M18X1,5
-
758132072000 LOCK WASHER VSK 18LOCK WASHER VSK 18
-
954830016000 SPACER SLEEVE 28X38X1003SPACER SLEEVE 28X38X1003
-
100760385273 SHAFT SEAL RING 38X52X7BTSLSHAFT SEAL RING 38X52X7BTSL
-
110625623204 BALL BEARING 32X65X17 NTNBALL BEARING 32X65X17 NTN
-
1254830018200 CRANKSHAFTCRANKSHAFT
-
1454430034000 NEEDLE BEARING KBK 18X22X20NEEDLE BEARING KBK 18X22X20
-
150888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
1656530123200 CYLIND.ROL.BEAR. NJ207ET2XCS42CYLIND.ROL.BEAR. NJ207ET2XCS42
-
176946005 WOODRUFF KEY 5X6,5 HARDEDWOODRUFF KEY 5X6,5 HARDED
-
180760253570 SHAFT SEAL RING 25X35X7 BTSLSHAFT SEAL RING 25X35X7 BTSL
-
1950230029012 LOCKING RING VSK 12LOCKING RING VSK 12
-
2049030021000 COLLAR NUT M12X1 R/SCOLLAR NUT M12X1 R/S
-
3054830015044 CONROD REP. KITCONROD REP. KIT
-
310770250015 O-RING 25,00X1,50 NBR 70O-RING 25,00X1,50 NBR 70
-
3254630232000 SQUARE RING 66,4MMSQUARE RING 66,4MM
