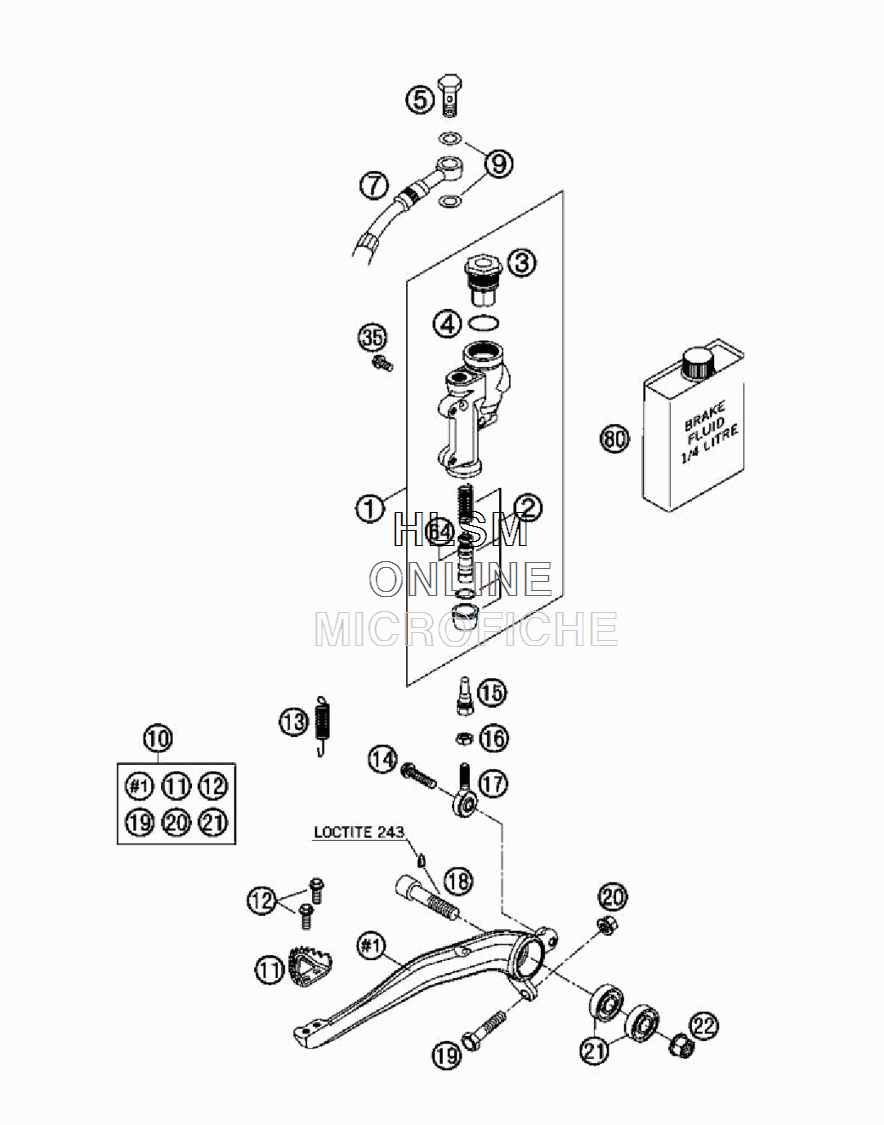

REAR BRAKE CONTROL для Ktm 300 XC - 2006 года выпуска
-
№АртикулНазвание
-
154813060100 REAR BRAKE CYLINDER CPL.REAR BRAKE CYLINDER CPL.
-
254813061200 REPAIR KIT PISTON 13MMREPAIR KIT PISTON 13MM
-
354813062100 REAR BRAKE CYL. COVER CPL.REAR BRAKE CYL. COVER CPL.
-
454813063000 FOOT-BRAKE CYL. GASKETFOOT-BRAKE CYL. GASKET
-
554813020100 HOLLOW SCREW BLACK M10X1X19HOLLOW SCREW BLACK M10X1X19
-
754813070000 BRAKE HOSE REAR 655MMBRAKE HOSE REAR 655MM
-
942013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
1054813050044 FOOT BRAKE LEVER CPL.FOOT BRAKE LEVER CPL.
-
1154813051000 STEP PLATE FOR BRAKE LEVERSTEP PLATE FOR BRAKE LEVER
-
120015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
1354603062000 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
140015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
1554813056000 PUSH ROD L=28MMPUSH ROD L=28MM
-
160934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
1754813055000 SWIVEL HEAD KA6SWIVEL HEAD KA6
-
180912100406 AH SCREW DIN6912 M10X40 10.9AH SCREW DIN6912 M10X40 10.9
-
1959001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
2046030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
210625060002 BALL BEARING SKF 6000-2RS1BALL BEARING SKF 6000-2RS1
-
2254630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
350015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
6454813064200 BELLOWS FOR REPAIR KITBELLOWS FOR REPAIR KIT
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
