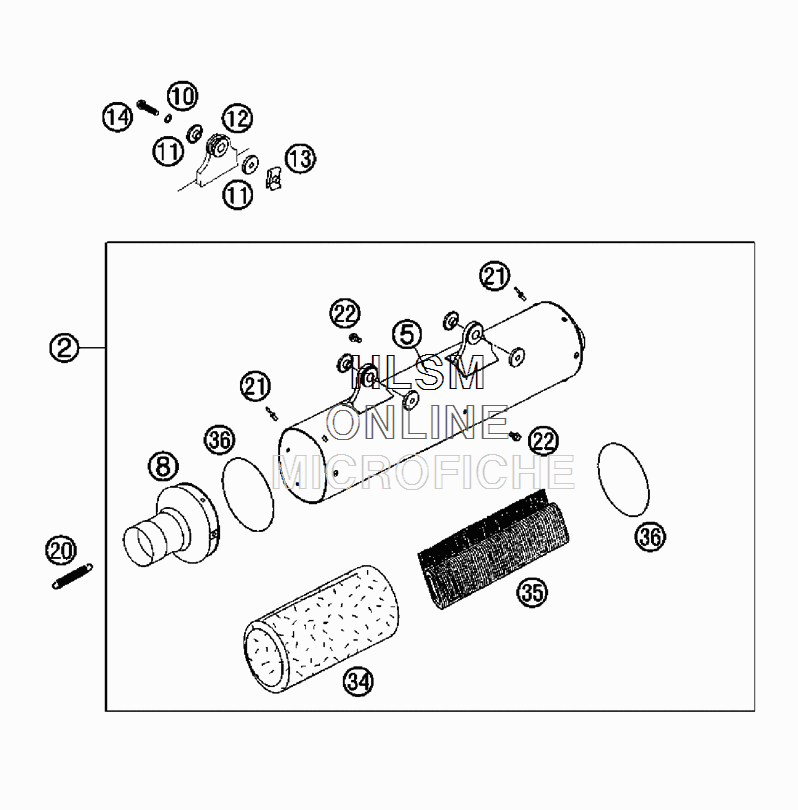

SILENCER для Ktm 400 EXC - 2006 года выпуска
-
№АртикулНазвание
-
259005082300 SILENCER SPARKYSILENCER SPARKY
-
559005082350 SILENCER HOUSING SPARKYSILENCER HOUSING SPARKY
-
859405079009 SILENCER CONNECT. CAP CPLSILENCER CONNECT. CAP CPL
-
100137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1154605069000 BUSHING 7,5X12X28X7,8BUSHING 7,5X12X28X7,8
-
1254605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
1354603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
140015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
2050305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
-
210011480802 DUMMY RIVET 4,8X 8,0 NIRODUMMY RIVET 4,8X 8,0 NIRO
-
220009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
3458705078350 STUFFINGYARN 350 GRAMMSTUFFINGYARN 350 GRAMM
-
3559005078076 STUFFING YARN 560X340X76GSTUFFING YARN 560X340X76G
-
360770740015 O-RING 74,00X1,50 FKM 75SHO-RING 74,00X1,50 FKM 75SH
