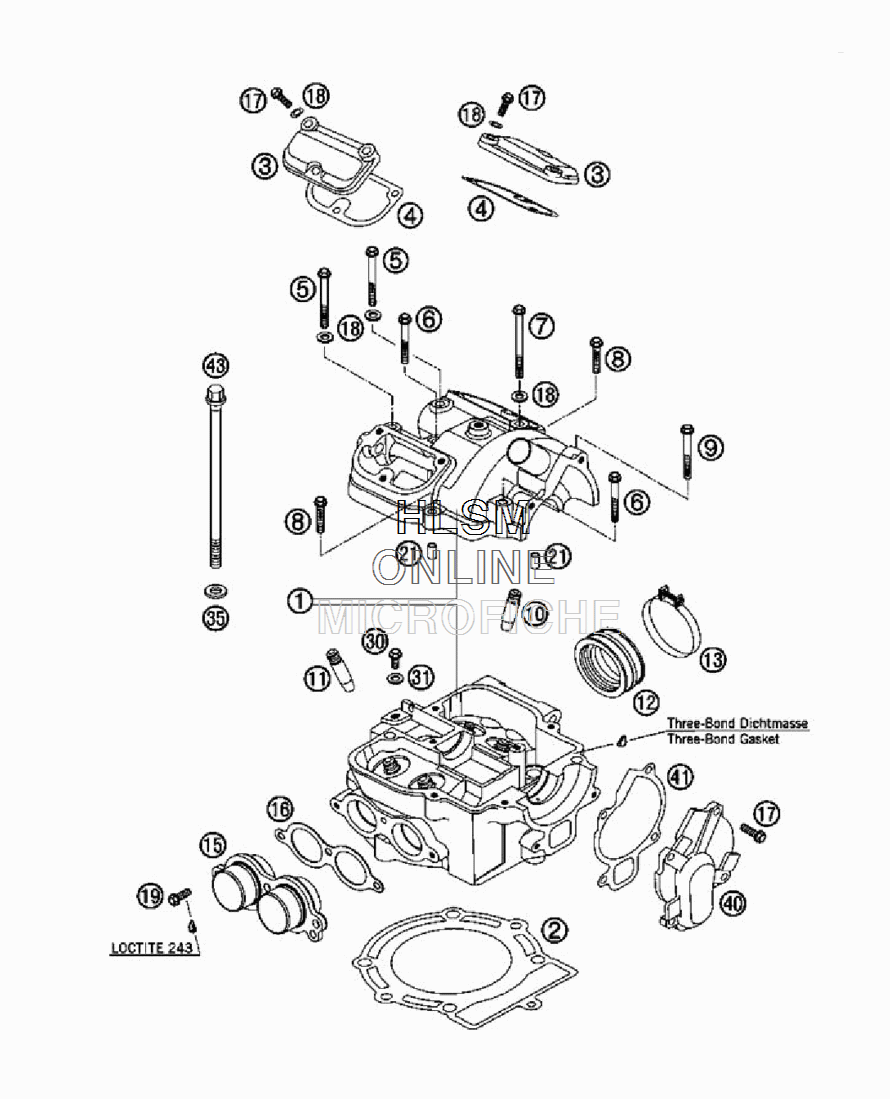

CYLINDER HEAD для Ktm 450 XC - 2006 года выпуска

№

Артикул

Название
1

59036020144 CYLINDER HEAD CPL.

CYLINDER HEAD CPL.

170 ₽
2

59030036000 CYLINDER HEAD GASKET 95,3 MM

CYLINDER HEAD GASKET 95,3 MM

11 770 ₽
3

58036052200 VALVE COVER REAR

VALVE COVER REAR

3 520 ₽
4

58036053000 VALVE COVER GASKET

VALVE COVER GASKET

910 ₽
5

0015060556 HH COLLAR SCR. M6X55 WS=8 10.9

HH COLLAR SCR. M6X55 WS=8 10.9

470 ₽
6

0015060453 HH COLLAR SCREW M 6X45 WS=8

HH COLLAR SCREW M 6X45 WS=8

470 ₽
7

0015060753 HH COLLAR SCREW M 6X75 WS=8

HH COLLAR SCREW M 6X75 WS=8

560 ₽
8

0015060303 HH COLLAR SCREW M 6X30 WS=8

HH COLLAR SCREW M 6X30 WS=8

560 ₽
9

0015060503 HH COLLAR SCREW M 6X50 WS=8

HH COLLAR SCREW M 6X50 WS=8

640 ₽
10

59036025101 VALVE GUIDE INTAKE

VALVE GUIDE INTAKE

7 480 ₽
11

59036026101 VALVE GUIDE EXHAUST

VALVE GUIDE EXHAUST

7 100 ₽
12

77036044000 INTAKE BOOT

INTAKE BOOT

8 040 ₽
13

59030061000 CLAMP D=56MM B=9MM M4X25

CLAMP D=56MM B=9MM M4X25

1 000 ₽
15

59436039000 EXHAUST FLANGE CPL.

EXHAUST FLANGE CPL.

15 300 ₽
16

59036041000 GASKET EXHAUST FLANGE

GASKET EXHAUST FLANGE

1 460 ₽
17

0015060203 HH COLLAR SCREW M 6X20 WS=8

HH COLLAR SCREW M 6X20 WS=8

500 ₽
18

0603061001 CU-SEAL RING DIN7603-6X10X1

CU-SEAL RING DIN7603-6X10X1

320 ₽
19

0015060163 HH COLLAR SCREW M 6X16 WS=8

HH COLLAR SCREW M 6X16 WS=8

290 ₽
21

59030023000 DOWEL 6X8X11,5

DOWEL 6X8X11,5

910 ₽
30

59036006090 VENT SCREW M6X10 CPL.

VENT SCREW M6X10 CPL.

1 030 ₽
31

58036065100 CU-SEAL RING 6 X 10 X 2

CU-SEAL RING 6 X 10 X 2

270 ₽
35

59036090000 WASHER 10,8X18,8X1,5

WASHER 10,8X18,8X1,5

180 ₽
40

59035052000 WATER PUMP COVER

WATER PUMP COVER

17 230 ₽
41

59035053000 WATER PUMP COVER GASKET 0,8MM

WATER PUMP COVER GASKET 0,8MM

1 490 ₽
43

59036079000 CYL. HEAD SCREW M10X158 WS=13

CYL. HEAD SCREW M10X158 WS=13

1 580 ₽
