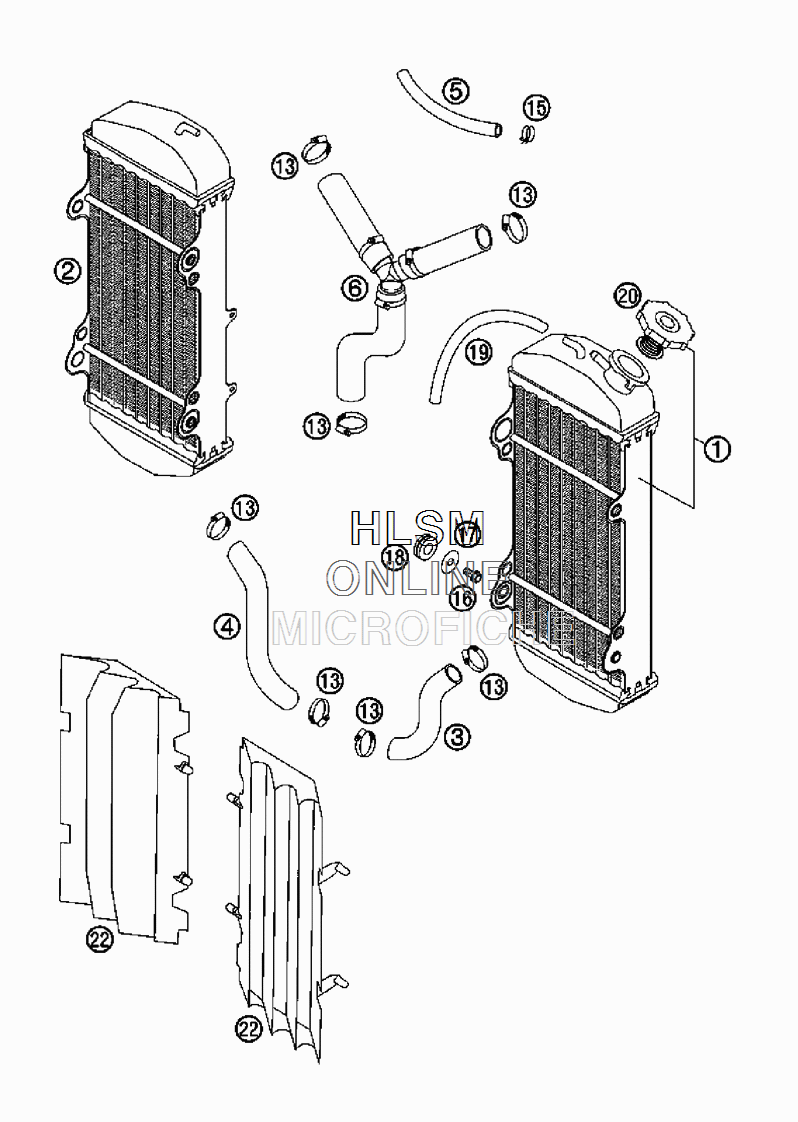

COOLING SYSTEM для Ktm 560 SMR - 2006 года выпуска
-
№АртикулНазвание
-
159035007300 RADIATOR L/S 45.407RADIATOR L/S 45.407
-
259035008300 RADIATOR R/S 45.408RADIATOR R/S 45.408
-
359035024100 RADIATOR HOSE L/S RAD.-CYL.RADIATOR HOSE L/S RAD.-CYL.
-
459035124100 RADIATOR HOSE R/S RAD.-CYL.RADIATOR HOSE R/S RAD.-CYL.
-
554435024001 HOSE ID 7,5 PER METERHOSE ID 7,5 PER METER
-
659035125000 RADIATOR HOSE CYL.HEAD-RAD.RADIATOR HOSE CYL.HEAD-RAD.
-
1310001020000 HOSE CLAMP GEMI 16-27HOSE CLAMP GEMI 16-27
-
1550231005000 HOSE CLAMP YDNAC 10119 11MMHOSE CLAMP YDNAC 10119 11MM
-
160015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
170021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
1841001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
1955007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
2059035009000 RADIAT.CAP 20,3PSI (1,4BAR)RADIAT.CAP 20,3PSI (1,4BAR)
-
225903504000004 RADIAT. PROTECT.RAC. ORANGERADIAT. PROTECT.RAC. ORANGE
-
225903504000030 RADIAT. PROTECT. RAC. BLACKRADIAT. PROTECT. RAC. BLACK
