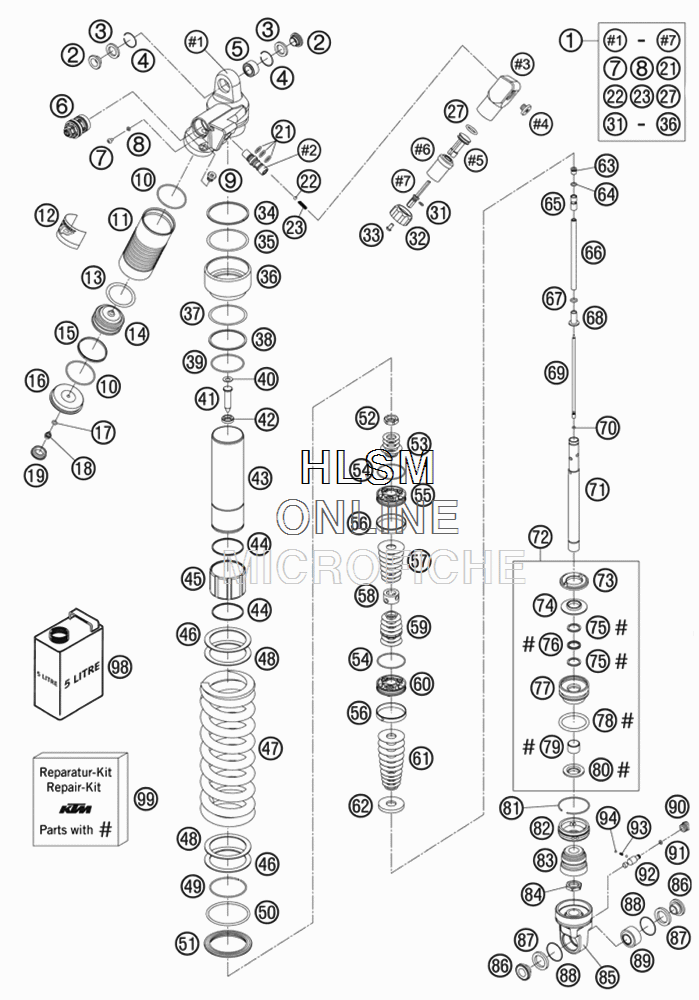

SHOCK ABSORBER DISASSEMBLED для Ktm 950 ADVENTURE ORANGE - 2006 года выпуска
-
№АртикулНазвание
-
11200Y002 PRELOAD ADJUSTER 5018 LC8PRELOAD ADJUSTER 5018 LC8
-
250180366 ADAPTOR BUSH KGW 14X24ADAPTOR BUSH KGW 14X24
-
346180003 OIL SEAL KGW D=25OIL SEAL KGW D=25
-
450180168 WASHER KGW D=25WASHER KGW D=25
-
550180005 BUSHING KGW 1525 HDBUSHING KGW 1525 HD
-
650180213S4 DCC-COMPR.DAMP.CONTROL CPL.DCC-COMPR.DAMP.CONTROL CPL.
-
748600058 VENT SCREW M4X6VENT SCREW M4X6
-
848600009 O-RING NBR 3,7X1,6O-RING NBR 3,7X1,6
-
950180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
1046810016 O-RING NBR 48X2O-RING NBR 48X2
-
1150180237 RESERVOIR SCREW L=123,5 D=52RESERVOIR SCREW L=123,5 D=52
-
1252000044 STICKER WP KTMSTICKER WP KTM
-
1346180014 O-RING VITON 41X5O-RING VITON 41X5
-
1446180002 SEPARATION PISTON D=52, H=32SEPARATION PISTON D=52, H=32
-
1546180015 PISTON RING 3,9X1,5X156PISTON RING 3,9X1,5X156
-
1650180344 RESERVOIR CAP D=58RESERVOIR CAP D=58
-
1746810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
1836120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
1946811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
2135480083 O-RING NBR 10X2O-RING NBR 10X2
-
2240540440 STEEL BALL D=5STEEL BALL D=5
-
2346810332 SPRING D=4,8 ADJUST KNOB CCSPRING D=4,8 ADJUST KNOB CC
-
2746810003 O-RING NBR 17X3O-RING NBR 17X3
-
3148600044 O-RING NBR 6X1,5O-RING NBR 6X1,5
-
3250180381 ADJUST KNOB PAADJUST KNOB PA
-
3346811771 AH SCREW M 5X10AH SCREW M 5X10
-
3450180370 BACKUP RING BG 2700646BACKUP RING BG 2700646
-
3550180369 O-RING NBR 63,09X3,53O-RING NBR 63,09X3,53
-
3650180371 OUTER RING PA LC8OUTER RING PA LC8
-
3750180372 O-RING 57,15X3,53 NBRO-RING 57,15X3,53 NBR
-
3850180373 BACKUP RING BU 2700580BACKUP RING BU 2700580
-
3950180097 O-RING 52X2O-RING 52X2
-
4050180177 WASHER 16X8,2X0,6WASHER 16X8,2X0,6
-
4150180300 NEEDLE D=10 L=37NEEDLE D=10 L=37
-
4250180437 SCREW CAP M20X1 D=11,5 H=5SCREW CAP M20X1 D=11,5 H=5
-
4350180367 TUBE M54X1 L=180 PDSTUBE M54X1 L=180 PDS
