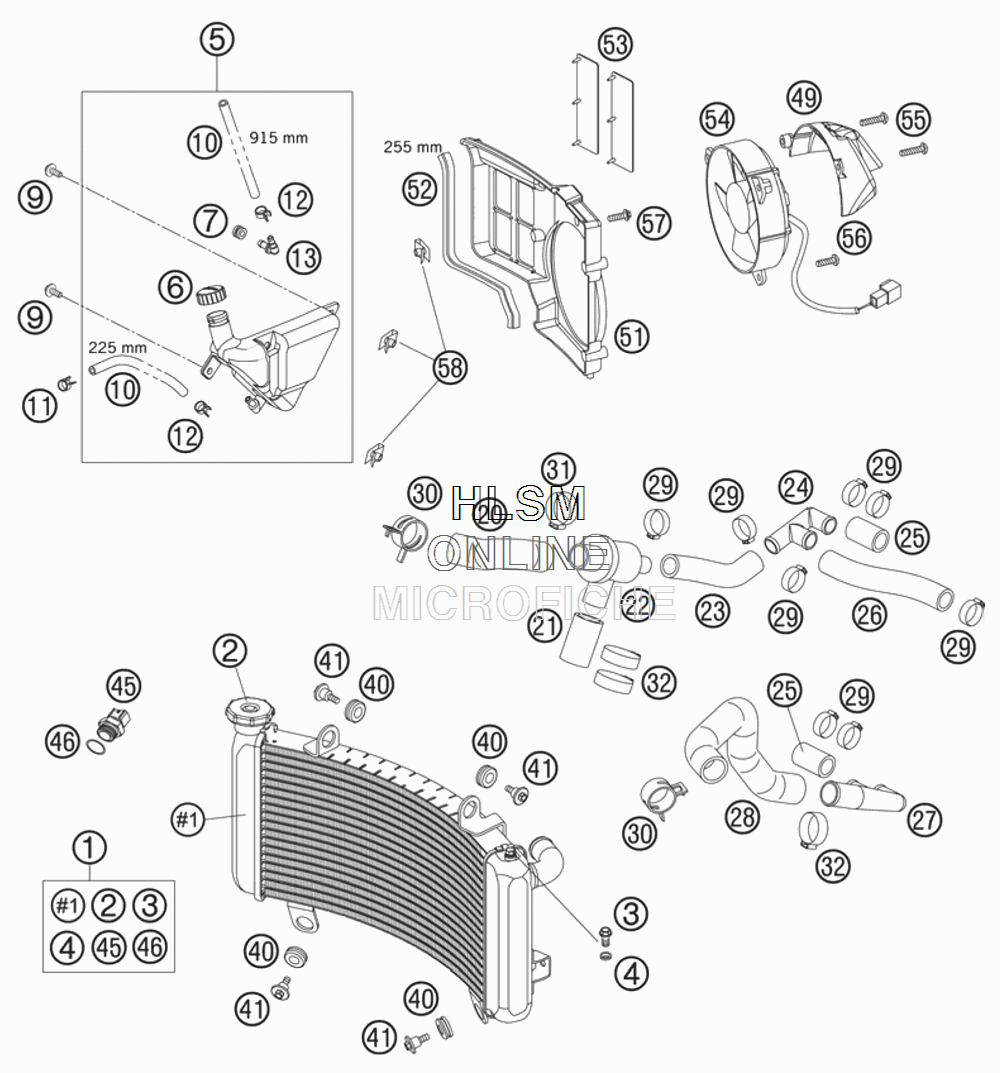

COOLING SYSTEM для Ktm 990 Superduke Black EU - 2006 года выпуска
-
№АртикулНазвание
-
161035010000 RADIATOR 990 DUKERADIATOR 990 DUKE
-
261035016000 RADIATOR CAP 990 DUKERADIATOR CAP 990 DUKE
-
30015060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
40125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
561035065000 EXPANSION TANK CPL.EXPANSION TANK CPL.
-
660035066000 PLUG F. EXPANSION TANKPLUG F. EXPANSION TANK
-
758214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
90014060153 HH COLLAR SCREW M 6X15HH COLLAR SCREW M 6X15
-
1060035067001 HOSE 6X10 EPDMHOSE 6X10 EPDM
-
1150231005000 HOSE CLAMP YDNAC 10119 11MMHOSE CLAMP YDNAC 10119 11MM
-
1258007117000 YDNAC-CLAMP 10107 10MMYDNAC-CLAMP 10107 10MM
-
1360035068000 ANGLE CONNECTION EXPANS. TANKANGLE CONNECTION EXPANS. TANK
-
2060035031000 RADIATOR HOSE THERM./RAD.RADIATOR HOSE THERM./RAD.
-
2160035030000 RADIATOR HOSE THERM./PUMPRADIATOR HOSE THERM./PUMP
-
2260035017000 THERMOSTAT 75° CPL. W. CASETHERMOSTAT 75° CPL. W. CASE
-
2360035025000 RADIATOR HOSE THERM./DISTR.RADIATOR HOSE THERM./DISTR.
-
2460035019000 DISTRIBUTOR R/S 18/18/18MMDISTRIBUTOR R/S 18/18/18MM
-
2560035026000 RADIATOR HOSE CYL./DISTR.RADIATOR HOSE CYL./DISTR.
-
2660035027000 RADIATOR HOSE DISTR./DISTR.RADIATOR HOSE DISTR./DISTR.
-
2760035028000 DISTRIBUTOR L/S 18/18/25MMDISTRIBUTOR L/S 18/18/25MM
-
2860035024000 RADIATOR HOSE RADIATOR L/SRADIATOR HOSE RADIATOR L/S
-
2900050271708 VARIABLE ONE-EAR CLAMP 27,1MMVARIABLE ONE-EAR CLAMP 27,1MM
-
3000049320121 CLAMP STD DN32CLAMP STD DN32
-
3100050346706 VARIABLE ONE-EAR CLAMP 34,6MMVARIABLE ONE-EAR CLAMP 34,6MM
-
3200050331706 VARIABLE ONE-EAR CLAMP 33,1MMVARIABLE ONE-EAR CLAMP 33,1MM
-
4041001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
4160035001000 SCREW RADIATOR BRACKET M6SCREW RADIATOR BRACKET M6
-
4560035045000 THERMOSWITCH LC8 102DGTHERMOSWITCH LC8 102DG
-
460770017015 O-RING 17X1,5 NB75O-RING 17X1,5 NB75
-
4961035044050 FAN CAPFAN CAP
-
5160035044000 FAN COWL L/SFAN COWL L/S
-
5258312085100 EDGE PROTECTOR PER METEREDGE PROTECTOR PER METER
-
5358435044050 FAN FLAP RUBBER LC4FAN FLAP RUBBER LC4
-
5460035041000 FAN L/SFAN L/S
-
550017060303 SPECIAL SCREW T60 6X30SPECIAL SCREW T60 6X30
-
560017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
-
570014060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
5854603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
