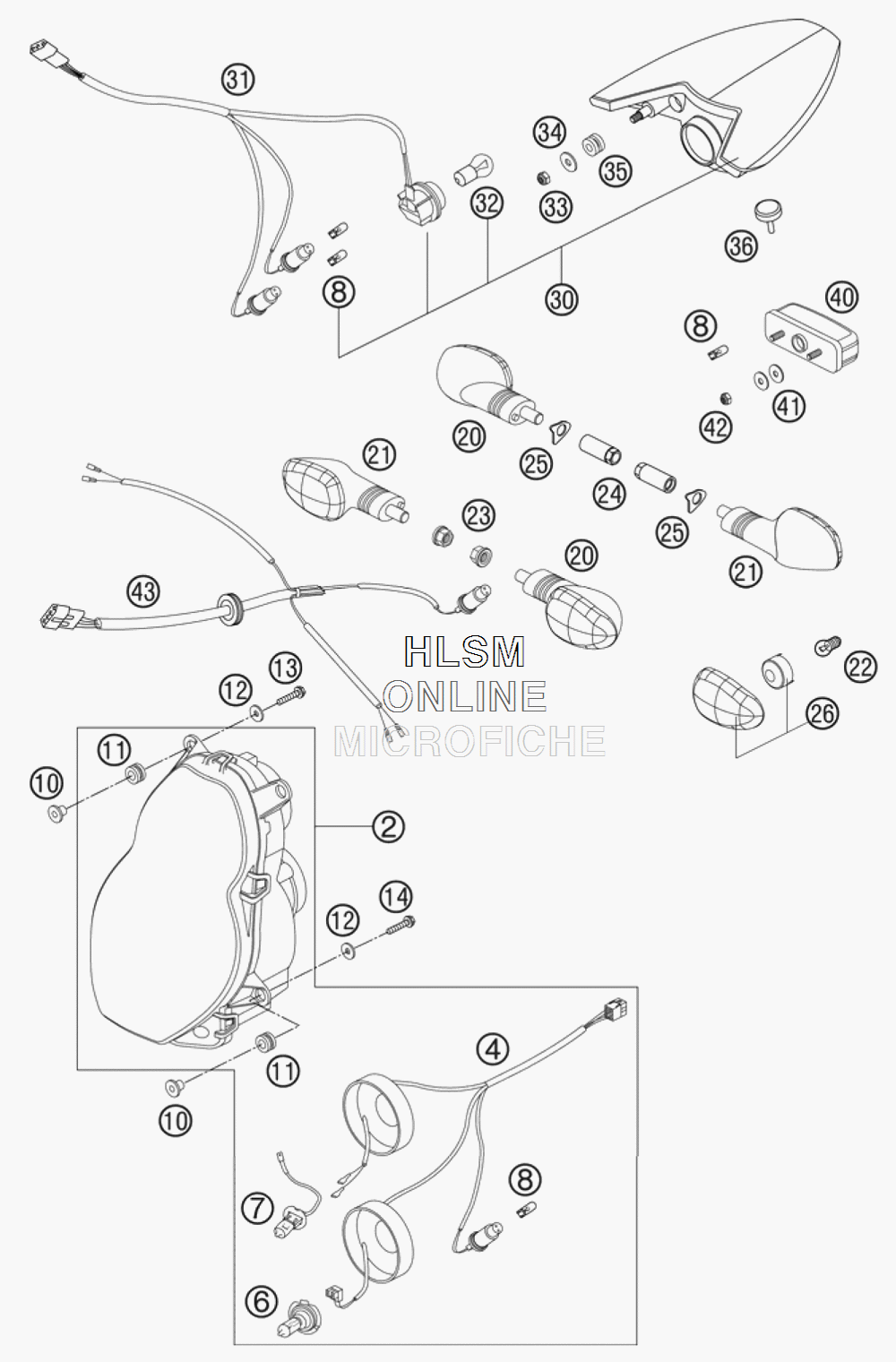

LIGHTING SYSTEM для Ktm 990 Superduke Black EU - 2006 года выпуска
-
№АртикулНазвание
-
260014001000 HEAD LIGHT RIGHT TR. EUHEAD LIGHT RIGHT TR. EU
-
460014001050 HEAD LIGHT WIRING HARN. EU/GBHEAD LIGHT WIRING HARN. EU/GB
-
660014003100 BULB H7 12V 55WBULB H7 12V 55W
-
760014003000 BULB H3 12V 55WBULB H3 12V 55W
-
849011435100 BULB 12V 5W (W2,1X9,5D) PHIL.BULB 12V 5W (W2,1X9,5D) PHIL.
-
1060014007000 SPACER BUSHING HEAD LIGHTSPACER BUSHING HEAD LIGHT
-
1131008008000 RUBBER GROMMIT BLACKRUBBER GROMMIT BLACK
-
120021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
130016050253 SCREW FOR PLASTICSCREW FOR PLASTIC
-
140015050203 HH COLLAR SCREW M 5X20HH COLLAR SCREW M 5X20
-
2058414025100 FLASHER CPL.FRONT L/S REAR R/SFLASHER CPL.FRONT L/S REAR R/S
-
2158414026100 FLASHER CPL.FRONT R/S REAR L/SFLASHER CPL.FRONT R/S REAR L/S
-
2244111015100 BULB 12V 10WBULB 12V 10W
-
2358414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
2461014030000 FLASHER NUT M10X1,25 WS=12FLASHER NUT M10X1,25 WS=12
-
2561014031000 FLASHER WASHERFLASHER WASHER
-
2658414028100 FLASHER LENS L/S & R/SFLASHER LENS L/S & R/S
-
3061014040000 REAR LIGHT DUKEREAR LIGHT DUKE
-
3158611076100 CABLE HARNESS REAR PARTCABLE HARNESS REAR PART
-
3260014048000 BULB 12V 21WBULB 12V 21W
-
330985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
340021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
3558214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
3660006001021 DISTANCE RUBBER AIRBOXDISTANCE RUBBER AIRBOX
-
4058414047000 LICENSE-PLATE ILLUMINATIONLICENSE-PLATE ILLUMINATION
-
410021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
420985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
4362511076000 WIRING HARNESS REARWIRING HARNESS REAR
