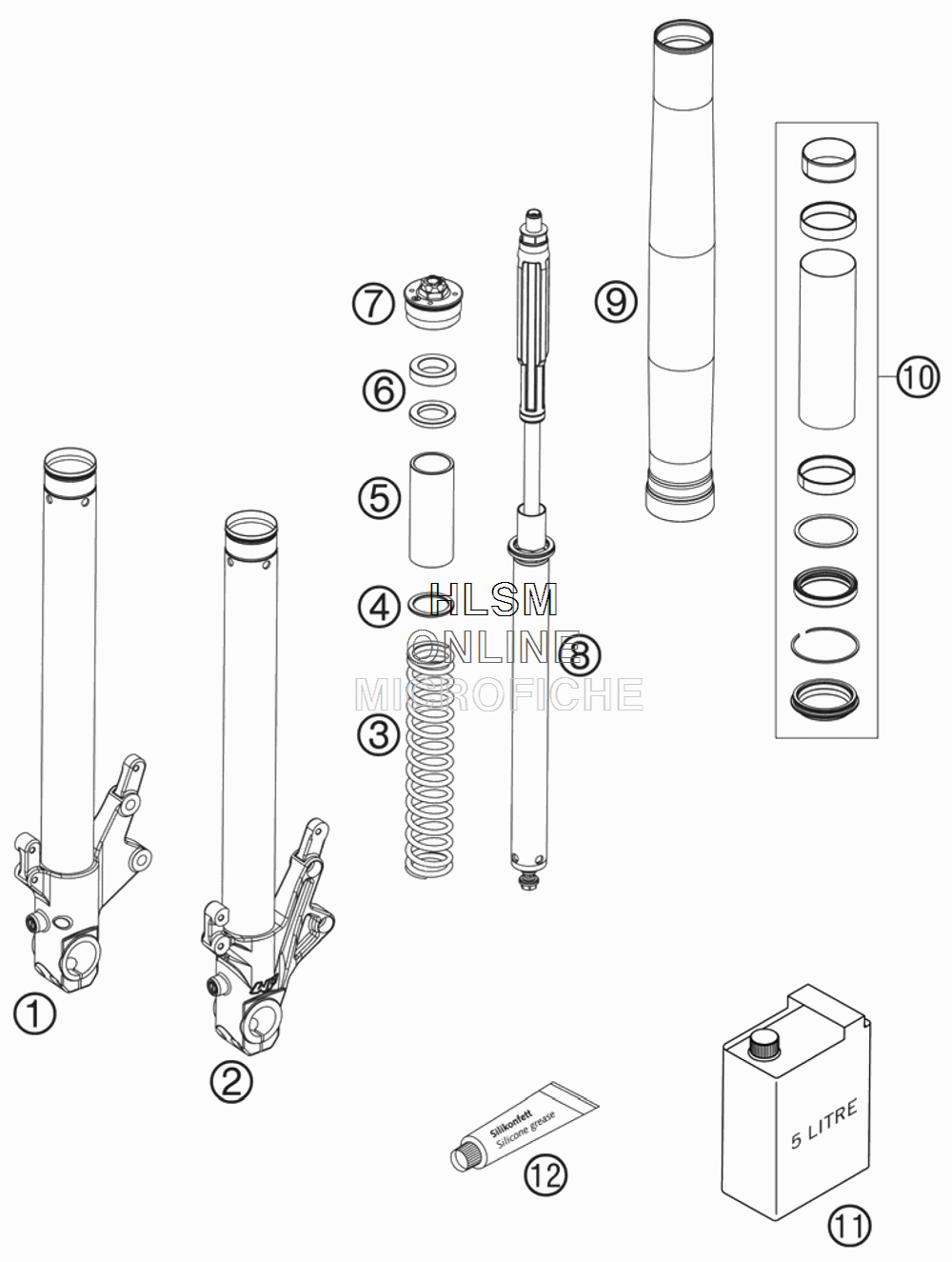

FORK LEGS для Ktm 990 Superduke Europe - 2006 года выпуска
-
№АртикулНазвание
-
148600259S1 AXLE CLAMP R/S CPL.AXLE CLAMP R/S CPL.
-
248600258S1 AXLE CLAMP L/S CPL.AXLE CLAMP L/S CPL.
-
391410034S SPRING C=8,5 L=250 D=5,1SPRING C=8,5 L=250 D=5,1
-
391410038S SPRING C=9 L=250 D=5,1SPRING C=9 L=250 D=5,1
-
391410039S SPRING C=9,5 L=250 D=5,25SPRING C=9,5 L=250 D=5,25
-
448600460 WASHER 32X42X2,5WASHER 32X42X2,5
-
548600361 SPACER ALU D40 X 100SPACER ALU D40 X 100
-
648600036 SPACER 42X26,5X2,5SPACER 42X26,5X2,5
-
648600037 SPACER 42X26,5X5SPACER 42X26,5X5
-
648600053 SPACER 42X26,5X1,5SPACER 42X26,5X1,5
-
748600431S PRE-LOAD ADJ. CPL. M51X1,5PRE-LOAD ADJ. CPL. M51X1,5
-
848600358S CARTRIDGE CPL.CARTRIDGE CPL.
-
948600362E OUTER TUBE L=500MM D=54/60 SETOUTER TUBE L=500MM D=54/60 SET
-
10R14009 REPAIR-KIT GASKET 4860 MXMAREPAIR-KIT GASKET 4860 MXMA
-
1148600401S1 FORK OIL SAE 5FORK OIL SAE 5
-
12T511 SILICONE GREASE F. DUST STRIPESILICONE GREASE F. DUST STRIPE
