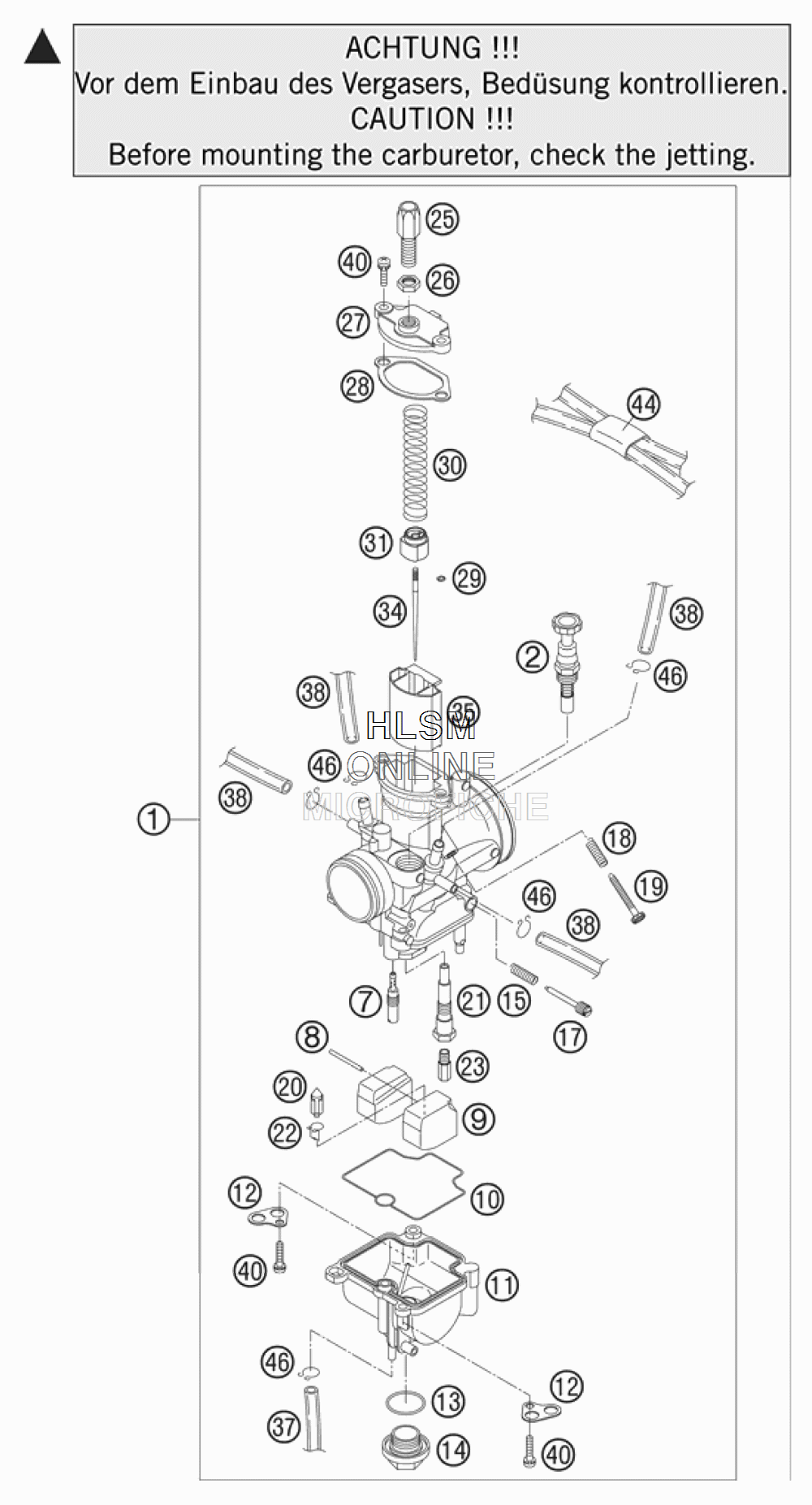

CARBURETOR для Ktm 105 SX - 2007 года выпуска

№

Артикул

Название
1

47031001000 CARBURETOR KEIHIN PWK 28

CARBURETOR KEIHIN PWK 28

110 740 ₽
2

54631245000 STARTER PISTON CPL.

STARTER PISTON CPL.

24 300 ₽
7

54531607038 IDLE JET 38 KEIHIN

IDLE JET 38 KEIHIN

3 300 ₽
7

54531607040 IDLE JET 40 KEIHIN

IDLE JET 40 KEIHIN

3 210 ₽
7

54531607042 IDLE JET 42 KEIHIN

IDLE JET 42 KEIHIN

3 300 ₽
7

54531607045 IDLE JET 45 KEIHIN

IDLE JET 45 KEIHIN

3 240 ₽
7

54531607048 IDLE JET 48 KEIHIN

IDLE JET 48 KEIHIN

3 130 ₽
7

54531607050 IDLE JET 50 KEIHIN

IDLE JET 50 KEIHIN

3 100 ₽
8

57331008000 ARM PIN FLOAT

ARM PIN FLOAT

470 ₽
9

47031009000 FLOAT CPL. PWK28

FLOAT CPL. PWK28

12 650 ₽
10

47031010000 FLOAT CHAMBER GASKET

FLOAT CHAMBER GASKET

2 080 ₽
11

47031011000 FLOAT CHAMBER PWK28

FLOAT CHAMBER PWK28

19 450 ₽
12

54531612100 RETAINING PLATE FOR BLEEDER

RETAINING PLATE FOR BLEEDER

590 ₽
13

0770180230 O-RING 18,00X2,30 NBR 70

O-RING 18,00X2,30 NBR 70

640 ₽
14

54531699000 PLUG M 18X1

PLUG M 18X1

5 430 ₽
15

54531615000 SPRING FOR ADJUSTMENT SCREW

SPRING FOR ADJUSTMENT SCREW

620 ₽
17

54531617000 ADJUSTMENT SCREW

ADJUSTMENT SCREW

2 080 ₽
18

54631118000 SPRING

SPRING

2 630 ₽
19

54631219100 ADJUSTMENT SCREW M 5

ADJUSTMENT SCREW M 5

4 590 ₽
20

47031020000 FLOAT NEEDLE CPL.

FLOAT NEEDLE CPL.

7 100 ₽
21

47031021000 NEEDLE JET

NEEDLE JET

9 060 ₽
22

47031022000 CLIP FOR FLOAT VALVE

CLIP FOR FLOAT VALVE

880 ₽
23

54531623115 MAIN JET 115 KEIHIN

MAIN JET 115 KEIHIN

3 300 ₽
23

54531623115 MAIN JET 115 KEIHIN

MAIN JET 115 KEIHIN

3 300 ₽
23

54531623118 MAIN JET 118 KEIHIN

MAIN JET 118 KEIHIN

3 210 ₽
23

54531623120 MAIN JET 120 KEIHIN

MAIN JET 120 KEIHIN

3 680 ₽
23

54531623122 MAIN JET 122 KEIHIN

MAIN JET 122 KEIHIN

3 620 ₽
23

54531623125 MAIN JET 125 KEIHIN

MAIN JET 125 KEIHIN

3 480 ₽
25

54531625000 ADJUSTMENT SCREW M 6X0,75

ADJUSTMENT SCREW M 6X0,75

1 960 ₽
26

52031126000 HEXAGON NUT M 6X0,75 DIN0439

HEXAGON NUT M 6X0,75 DIN0439

2 250 ₽
27

47031027000 CARBURETOR COVER PWK28

CARBURETOR COVER PWK28

8 040 ₽
28

47031028000 CARBURETOR COVER GASKET PWK28

CARBURETOR COVER GASKET PWK28

1 520 ₽
29

54531629000 CLIP FOR JET NEEDLE

CLIP FOR JET NEEDLE

680 ₽
30

47031030000 THROTTLE VALVE SPRING

THROTTLE VALVE SPRING

2 750 ₽
31

47031031000 SPRING CAP

SPRING CAP

1 730 ₽
34

47031034000 JET NEEDLE N5HG KEIHIN

JET NEEDLE N5HG KEIHIN

3 710 ₽
34

47031034100 JET NEEDLE N5HF KEIHIN

JET NEEDLE N5HF KEIHIN

3 830 ₽
34

47031034200 JET NEEDLE N5HH KEIHIN

JET NEEDLE N5HH KEIHIN

3 850 ₽
35

47031035000 THROTTLE VALVE 3,5

THROTTLE VALVE 3,5

51 750 ₽
37

52031137001 PVC-HOSE 3X5MM

PVC-HOSE 3X5MM

1 000 ₽
38

31007007101 PVC-HOSE 4X6MM

PVC-HOSE 4X6MM

760 ₽
40

0016040163 HH COLLAR SCREW M 4X16 WS=6

HH COLLAR SCREW M 4X16 WS=6

290 ₽
44

47031084000 PLASTIC-CLIP

PLASTIC-CLIP

3 360 ₽
46

54531696000 CLAMP 6 MM

CLAMP 6 MM

590 ₽
