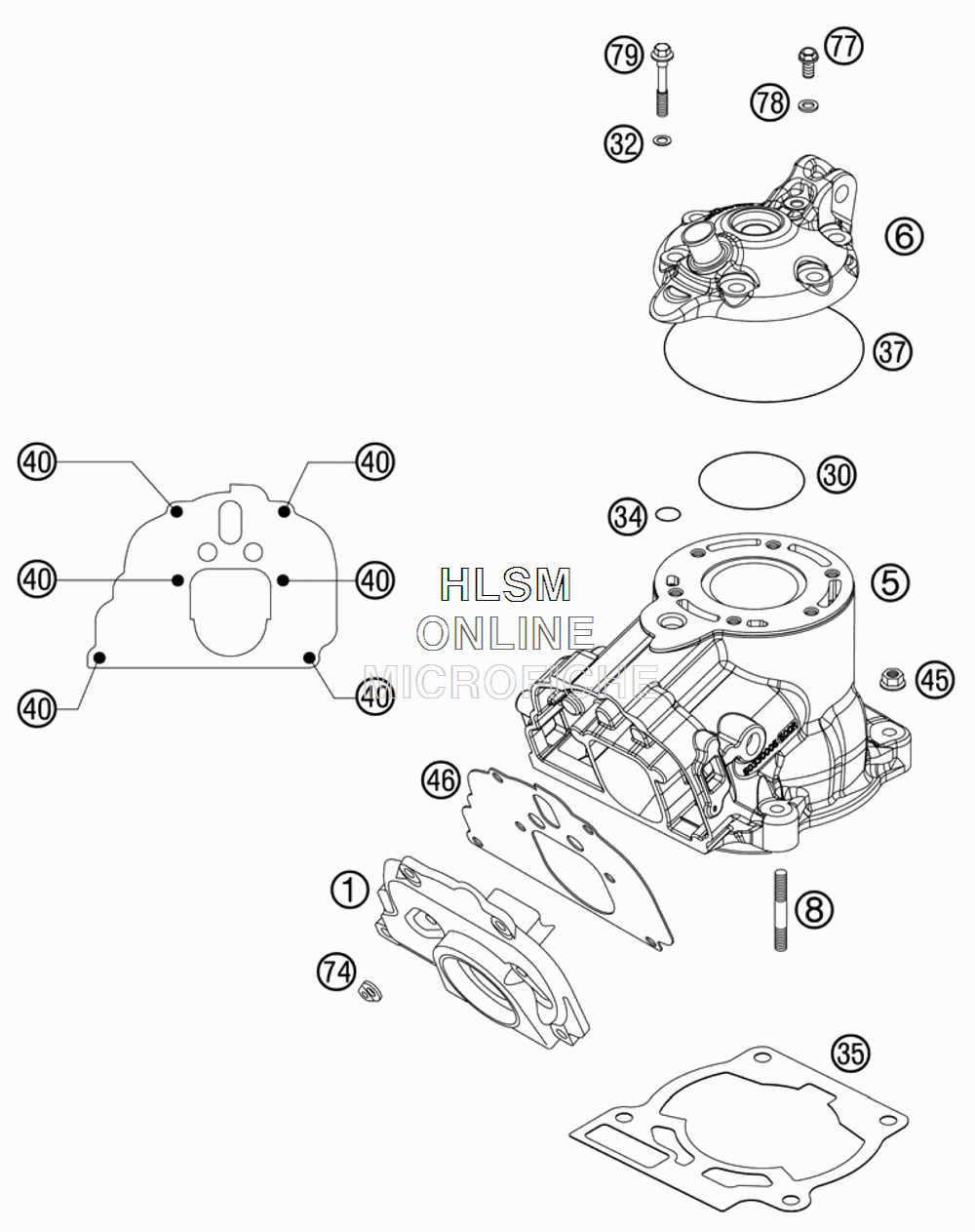

CYLINDER CYLINDER HEAD для Ktm 144 SX - 2007 года выпуска
-
№АртикулНазвание
-
150337001200 INTERMEDIATE FLANGE 125INTERMEDIATE FLANGE 125
-
551530005000 CYLINDER 144CYLINDER 144
-
651530006000 CYLINDER HEAD 144 SXCYLINDER HEAD 144 SX
-
80835080273 STUD DIN0835-M 8X27STUD DIN0835-M 8X27
-
300770062020 O-RING 62,00X2,00 VITONO-RING 62,00X2,00 VITON
-
3250230032010 CU-SEAL RING 7,3 X 12 X 0,5CU-SEAL RING 7,3 X 12 X 0,5
-
340770012021 O-RING 12X2 VITON GREENO-RING 12X2 VITON GREEN
-
3550330035020 CYLINDER BASE GASKET 0,20MMCYLINDER BASE GASKET 0,20MM
-
3550330035025 CYLINDER BASE GASKET 0,25MMCYLINDER BASE GASKET 0,25MM
-
3550330035040 CYLINDER BASE GASKET 0,40MMCYLINDER BASE GASKET 0,40MM
-
3550330035050 CYLINDER BASE GASKET 0,50MMCYLINDER BASE GASKET 0,50MM
-
3550330035075 CYLINDER BASE GASKET 0,75MMCYLINDER BASE GASKET 0,75MM
-
370770086020 O-RING 86X2 VITON75SHORE GREENO-RING 86X2 VITON75SHORE GREEN
-
400014050203 HH COLLAR SCREW M 5X20HH COLLAR SCREW M 5X20
-
4550330045000 HH COLLAR NUT M 8HH COLLAR NUT M 8
-
4650337046200 INTERMED. GASKET 125INTERMED. GASKET 125
-
7451005074000 RETAINING PLATERETAINING PLATE
-
770015060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
780603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
7950330079000 CYL. HEAD BOLT M 7X30CYL. HEAD BOLT M 7X30
