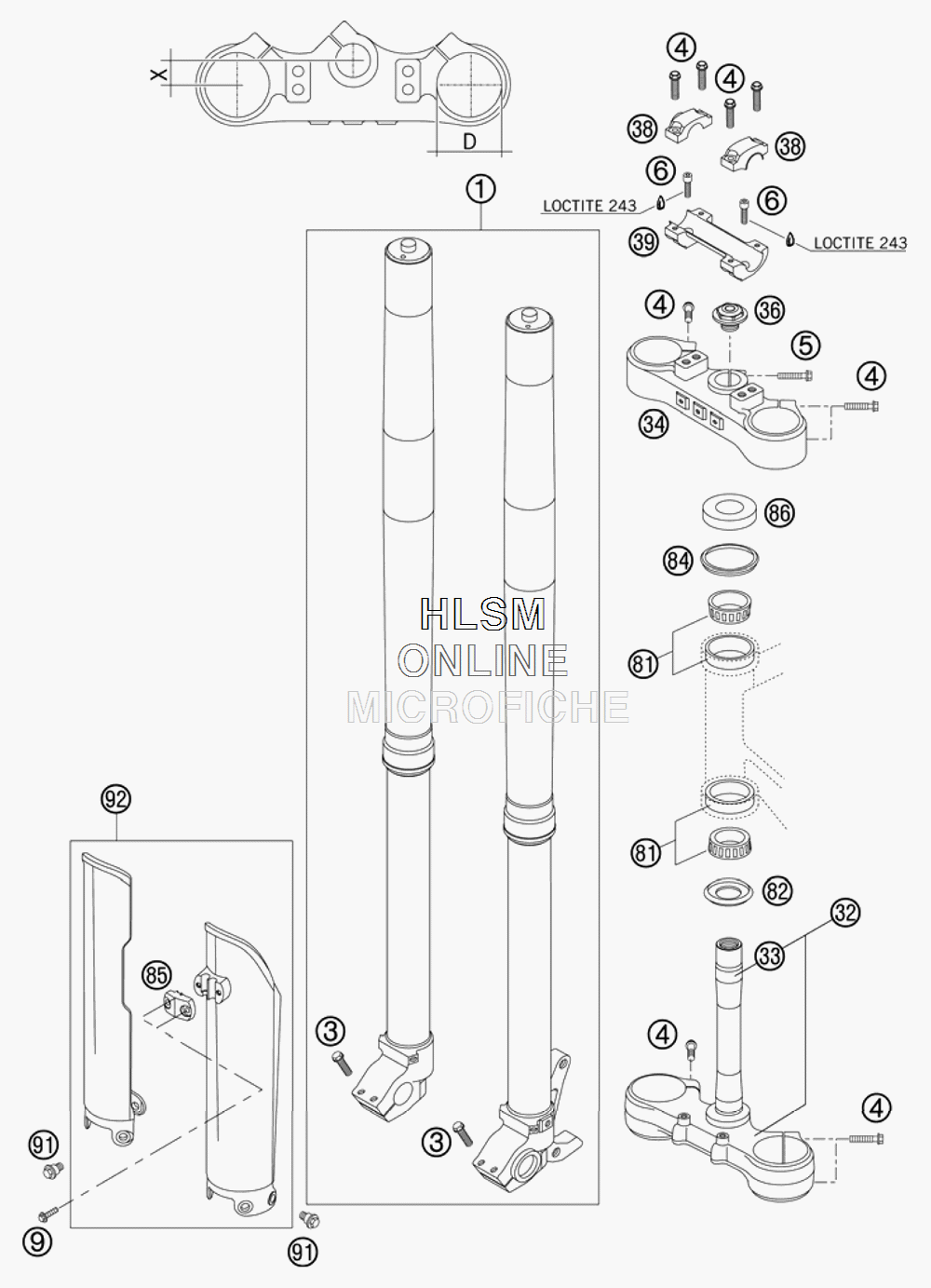

FRONT FORK для Ktm 200 XC-W - 2007 года выпуска
-
№АртикулНазвание
-
114187C02 FRONT LEG WP D48FRONT LEG WP D48
-
30015080253 HH COLLAR SCREW M 8X25 WS=10HH COLLAR SCREW M 8X25 WS=10
-
40015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
50015080353 HH COLLAR SCREW M 8X35 WS=10HH COLLAR SCREW M 8X35 WS=10
-
60912100250 AH SCREW DIN6912-M10X25,10.9,LAH SCREW DIN6912-M10X25,10.9,L
-
90017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
3259001132120 BOT.TRIP.CL.CPL. X= 20MM/D=60MMBOT.TRIP.CL.CPL. X= 20MM/D=60MM
-
3350101033100 FORK TUBE L= 244FORK TUBE L= 244
-
3459001034120 TOP TRIPLE CLAMP X= 20MM/D=54MMTOP TRIPLE CLAMP X= 20MM/D=54MM
-
3654801036000 STEER.H EAD SCREW M20X1,5 WS=27STEER.H EAD SCREW M20X1,5 WS=27
-
3859001038200 HANDLEBAR CLAMP D = 28MMHANDLEBAR CLAMP D = 28MM
-
3959001039100 HANDLEBAR SUPPORT 28MMHANDLEBAR SUPPORT 28MM
-
8154201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8254601084100 O-RING SUPPORT W.SEALING LIPO-RING SUPPORT W.SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
855900108510004 CLAMP F.SPEED.CABLE ORANGECLAMP F.SPEED.CABLE ORANGE
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
925900109400004 FORK PROT.L/S + R/S ORG 02FORK PROT.L/S + R/S ORG 02
