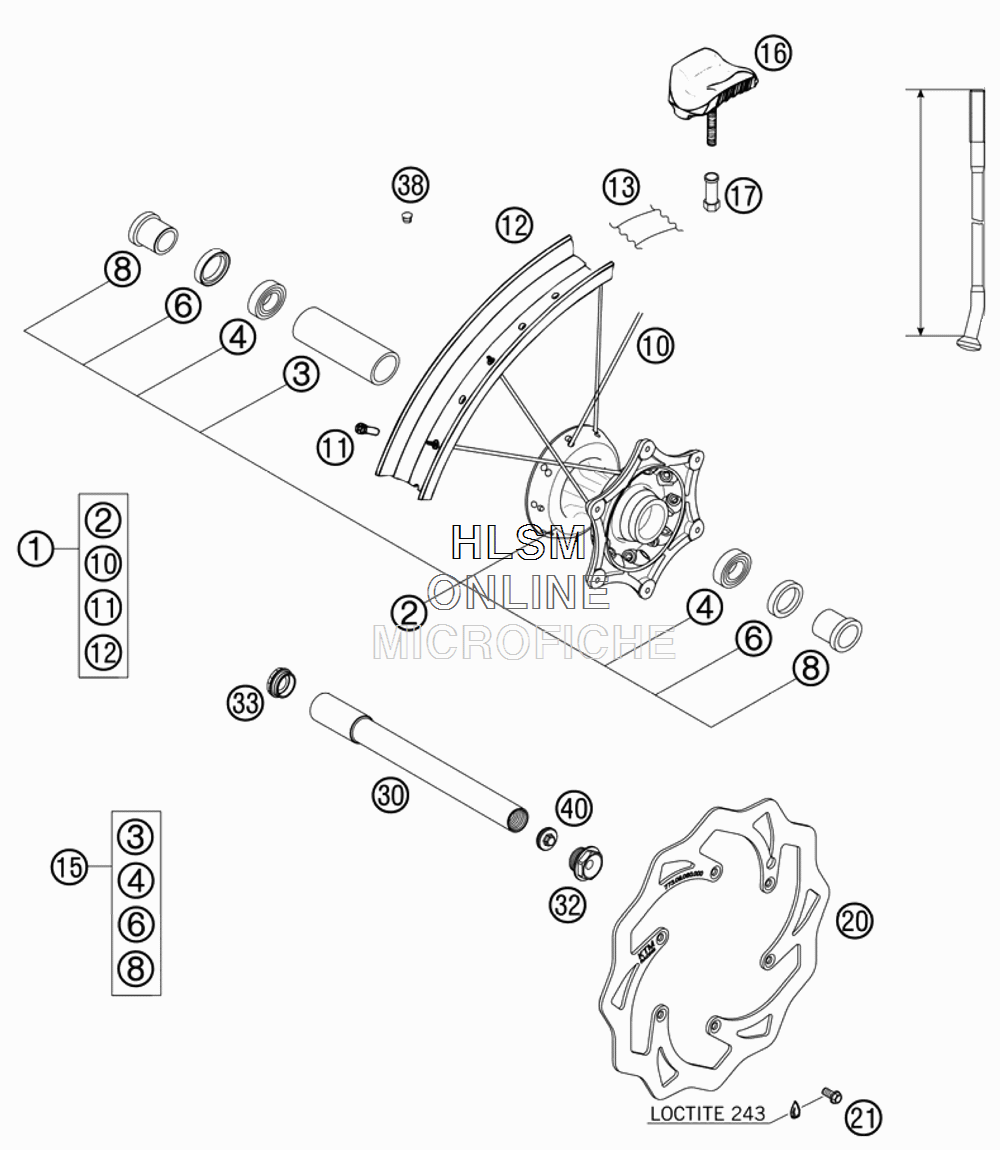

FRONT WHEEL для Ktm 300 XC - 2007 года выпуска
-
№АртикулНазвание
-
15480900184430 FRONT WHEEL CPL.1,6X21 EXCELFRONT WHEEL CPL.1,6X21 EXCEL
-
25480901004491 FRONT HUB CPL. SX SILVERFRONT HUB CPL. SX SILVER
-
354809011000 BEA.SPACERTUBE 35X2 L=79,4BEA.SPACERTUBE 35X2 L=79,4
-
40625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
60760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
854809012000 SPACER BUSHING F. FR. WHEELSPACER BUSHING F. FR. WHEEL
-
1050309072228 SPOKE M4,5X228-15G 21" DDESPOKE M4,5X228-15G 21" DDE
-
1150309072000 SPOKE NIPPLE M4,5X0,75 8X21SPOKE NIPPLE M4,5X0,75 8X21
-
125480907000030 FRONT RIM 1,6X21" EXCEL AL7FRONT RIM 1,6X21" EXCEL AL7
-
1350309073000 RIM BAND 21"RIM BAND 21"
-
1554809015000 FRONT WHEEL REP. KITFRONT WHEEL REP. KIT
-
1651009100100 RIM LOCK VM1 (1,60")RIM LOCK VM1 (1,60")
-
1750310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
2077309060000 BRAKE DISC FRONT 260BRAKE DISC FRONT 260
-
2159009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
3077309081000 WHEEL SPIN.FR. D=26 M24X1,5WHEEL SPIN.FR. D=26 M24X1,5
-
3254809082000 SPINDLE SCREW M24X1,5 WS=27SPINDLE SCREW M24X1,5 WS=27
-
3354809081050 PLUG BUSHING WS=27PLUG BUSHING WS=27
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
4054809081070 AUXILIARY SCREW FRONTAUXILIARY SCREW FRONT
