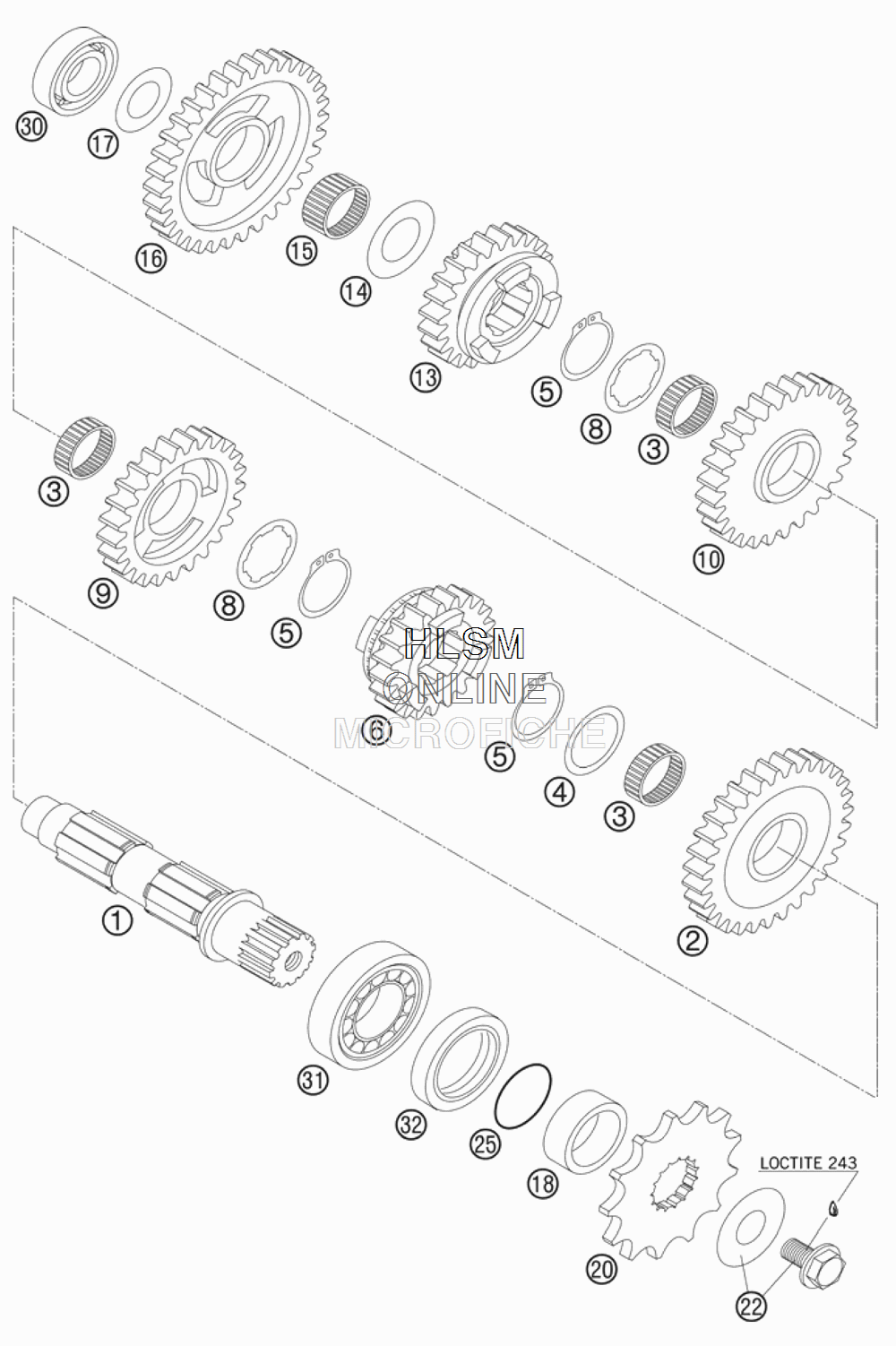

TRANSMISSION - COUNTER SHAFT для Ktm 400 XC-W - 2007 года выпуска

№

Артикул

Название
1

59033010000 COUNTER SHAFT

COUNTER SHAFT

41 180 ₽
2

59033012025 IDLER GEAR 2.G 31-T "25"

IDLER GEAR 2.G 31-T "25"

27 040 ₽
3

0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED

NEEDLE BEAR.K 22X26X10 DIVIDED

3 130 ₽
4

59033031000 STOP DISC 25,2X32X1,5

STOP DISC 25,2X32X1,5

470 ₽
5

0471250120 CIRCLIP DIN0471-25X1,2

CIRCLIP DIN0471-25X1,2

290 ₽
6

59033016026 SLIDING GEAR 6.G 21-T "26"

SLIDING GEAR 6.G 21-T "26"

28 680 ₽
8

59033030000 STOP DISC 25,2X32X1,5

STOP DISC 25,2X32X1,5

500 ₽
9

59033014033 IDLER GEAR 4.G 26-T "33"

IDLER GEAR 4.G 26-T "33"

30 960 ₽
10

59033013028 IDLER GEAR 3.G 28-T "28"

IDLER GEAR 3.G 28-T "28"

38 780 ₽
13

59033015029 SLIDING GEAR 5.G 23-T "29"

SLIDING GEAR 5.G 23-T "29"

28 680 ₽
14

59033080000 SHIM 20X32X1

SHIM 20X32X1

440 ₽
15

0405202612 NEEDLE BEARING K 20X26X12

NEEDLE BEARING K 20X26X12

2 950 ₽
16

59033011030 IDLER GEAR 1.G 34-T "30"

IDLER GEAR 1.G 34-T "30"

36 010 ₽
17

56033030000 STOP DISC 17,2X30X1

STOP DISC 17,2X30X1

970 ₽
18

54633014100 SPACER BUSHING 12MM

SPACER BUSHING 12MM

5 140 ₽
20

50033029013 SPROCKET 13-T

SPROCKET 13-T

8 110 ₽
20

50033029014 SPROCKET 14-T

SPROCKET 14-T

8 110 ₽
20

50033029015 SPROCKET 15-T

SPROCKET 15-T

7 100 ₽
22

59033034044 SCREW+SPRING WASHER

SCREW+SPRING WASHER

2 050 ₽
25

0770020220 O-RING 25,12X1,78 NBR70

O-RING 25,12X1,78 NBR70

590 ₽
30

0625062035 BALL BEARING 6203 JR2 C3

BALL BEARING 6203 JR2 C3

3 890 ₽
31

49030023000 CYL.ROLL BEARING NJ205

CYL.ROLL BEARING NJ205

20 130 ₽
32

0760324571 SHAFT SEAL RING 32X45X7 BSLNBR

SHAFT SEAL RING 32X45X7 BSLNBR

1 140 ₽
