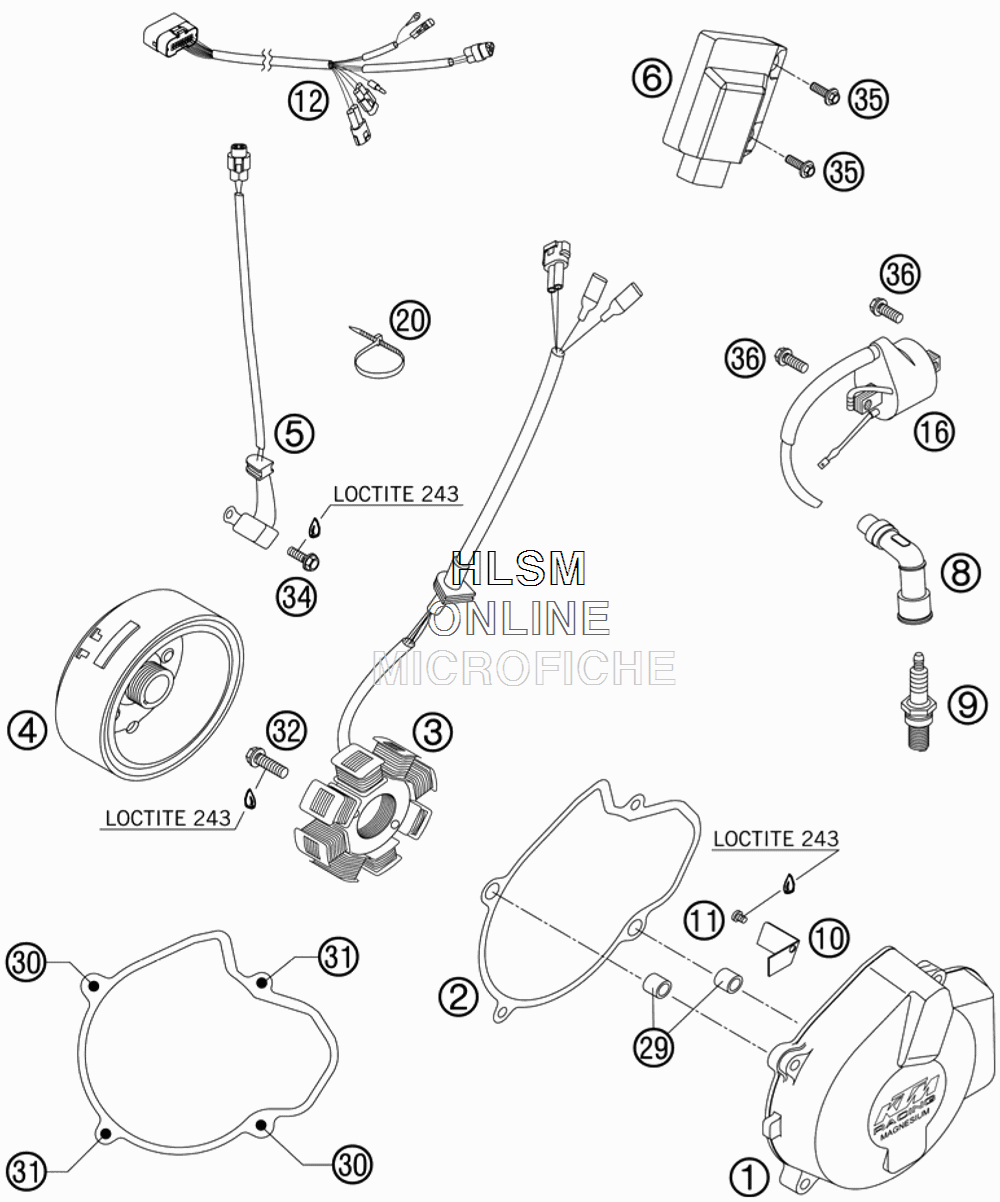

IGNITION SYSTEM для Ktm 450 EXC - 2007 года выпуска
-
№АртикулНазвание
-
159030002000 IGNITION COVER 4K3BIGNITION COVER 4K3B
-
259030040000 IGNITION COVER GASKET 0,8MMIGNITION COVER GASKET 0,8MM
-
3*59039104200 STATOR 4-K3-BSTATOR 4-K3-B
-
459039105200 FLYWHEEL 4K3B RACINGFLYWHEEL 4K3B RACING
-
559039034000 PULSER COIL KOKUSAN 4K3-A/BPULSER COIL KOKUSAN 4K3-A/B
-
659439031000 CDI UNIT 450 EXCCDI UNIT 450 EXC
-
859039090100 SPARK PLUG CONNECT. VD05EGSPARK PLUG CONNECT. VD05EG
-
959039093100 SPARK PLUG NGK DCPR8ESPARK PLUG NGK DCPR8E
-
1059030002050 SUPPORT FOR WIRESUPPORT FOR WIRE
-
110084040063 CYL.HEAD SCREW DIN0084-M 4X 6ACYL.HEAD SCREW DIN0084-M 4X 6A
-
1259439032100 WIRING HARNESS FOR CDI EXC 04WIRING HARNESS FOR CDI EXC 04
-
1659039006000 IGNITIONCOIL KOKUSAN 4K3-A/BIGNITIONCOIL KOKUSAN 4K3-A/B
-
2044011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
2949030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
300015060353 HH COLLAR SCREW M 6X35HH COLLAR SCREW M 6X35
-
310015060303 HH COLLAR SCREW M 6X30HH COLLAR SCREW M 6X30
-
320015060203 HH COLLAR SCREW M 6X20HH COLLAR SCREW M 6X20
-
340015050163 HH COLLAR SCREW M 5X16HH COLLAR SCREW M 5X16
-
350014060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
360015060163 HH COLLAR SCREW M 6X16HH COLLAR SCREW M 6X16
