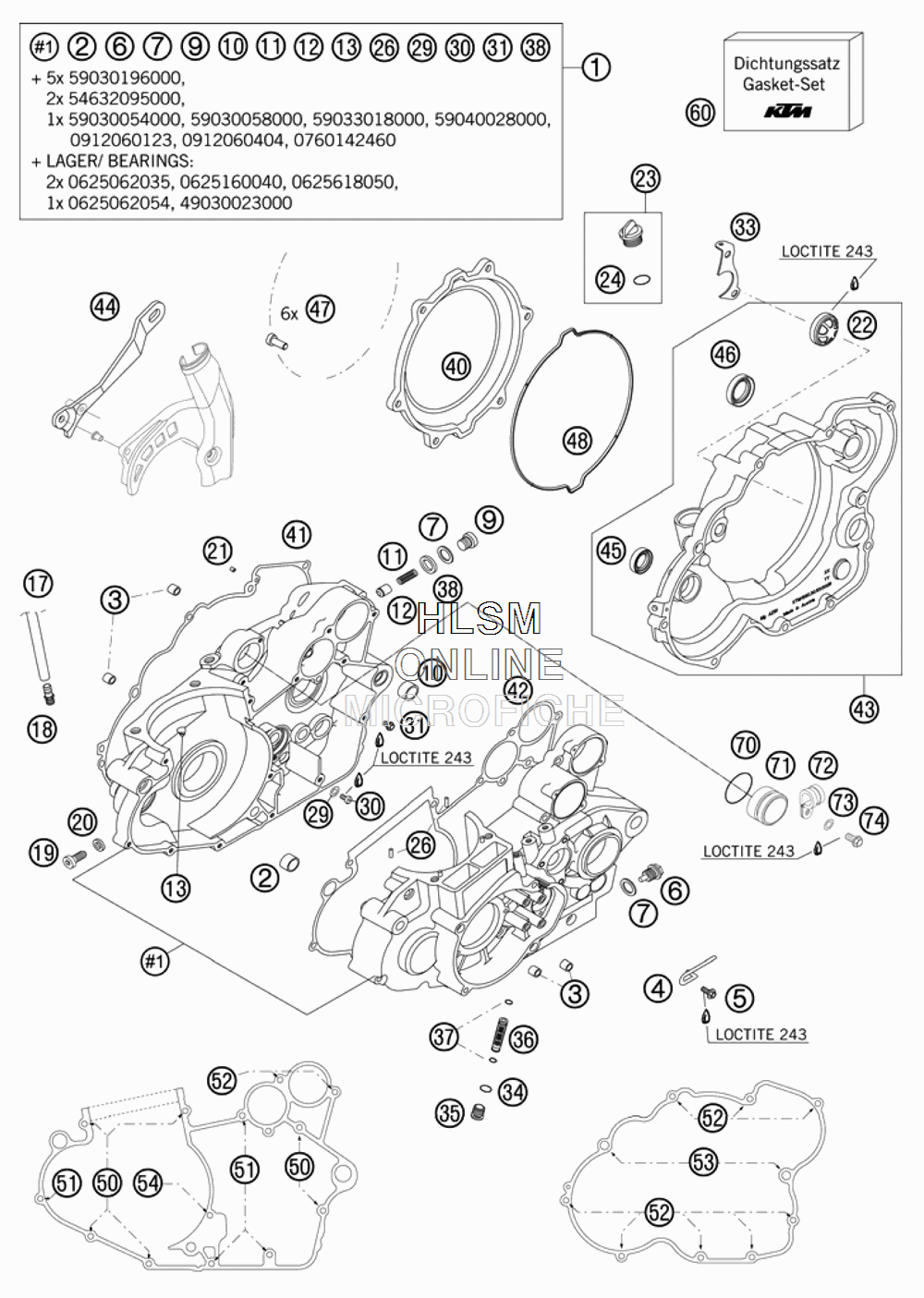

ENGINE CASE для Ktm 450 SMR - 2007 года выпуска

№

Артикул

Название
1

59030000444 ENGINE CASE

ENGINE CASE

170 ₽
2

51030026100 DOWEL 17 X 13 X 12

DOWEL 17 X 13 X 12

1 550 ₽
3

49030090000 DOWEL 9,8 X 7 X 10

DOWEL 9,8 X 7 X 10

290 ₽
4

59030090000 HANGER FOR VENT HOSE

HANGER FOR VENT HOSE

850 ₽
5

0014060153 HH COLLAR SCREW M 6X15 WS=8

HH COLLAR SCREW M 6X15 WS=8

560 ₽
6

58030021000 OILDRAIN PLUG W.MAG. M 12X1,5

OILDRAIN PLUG W.MAG. M 12X1,5

2 800 ₽
7

58038022000 CU-SEAL RING DIN7603-12X18X1,5

CU-SEAL RING DIN7603-12X18X1,5

440 ₽
9

0908120153 PLUG DIN0908-M12X1,5

PLUG DIN0908-M12X1,5

850 ₽
10

59030024000 DOWEL 17 X 19 X 12

DOWEL 17 X 19 X 12

1 230 ₽
11

58038023300 PRESSURE SPRING L=25MM D=1MM

PRESSURE SPRING L=25MM D=1MM

1 200 ₽
12

58038028000 VALVE PISTON D=10MM

VALVE PISTON D=10MM

10 200 ₽
13

59030054000 JET 60 DELLORTO M6X0,75

JET 60 DELLORTO M6X0,75

3 520 ₽
17

59031050100 ENGINE BREATHER TUBE

ENGINE BREATHER TUBE

3 920 ₽
18

59030022100 BLEEDER FLANGE M12X1,5 WS=13

BLEEDER FLANGE M12X1,5 WS=13

1 990 ₽
19

59430080000 LOCATING SCREW L=27

LOCATING SCREW L=27

1 490 ₽
20

58030081000 CU-SEAL RING 8 X 14 X 3

CU-SEAL RING 8 X 14 X 3

410 ₽
21

0402025980 NEEDLE ROLLER DIN5402 2,5X9,8

NEEDLE ROLLER DIN5402 2,5X9,8

740 ₽
22

59030019000 OIL LEVEL GLASS G 1777 Y

OIL LEVEL GLASS G 1777 Y

5 720 ₽
23

58030120000 OIL FILLER CAP M24X3 WITH O-R

OIL FILLER CAP M24X3 WITH O-R

1 840 ₽
24

0770191015 O-RING 19,00X3,00 NBR

O-RING 19,00X3,00 NBR

290 ₽
26

0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8

NEEDLE ROL.DIN5402 NRB 4X9,8

560 ₽
29

0125050003 WASHER DIN0125-A 5,3

WASHER DIN0125-A 5,3

150 ₽
30

0985050083 FLAT HEAD SCREW DIN7985-M 5X 8

FLAT HEAD SCREW DIN7985-M 5X 8

80 ₽
31

0015060083 HH COLLAR SCREW M 6X8 WS=8

HH COLLAR SCREW M 6X8 WS=8

470 ₽
33

59030001090 RET.BRACKET F.BRAKE LEVER HUB

RET.BRACKET F.BRAKE LEVER HUB

920 ₽
34

0770120020 O-RING 12,00X2,00 NBR 70

O-RING 12,00X2,00 NBR 70

470 ₽
35

59038014100 PLUG M16X1,5

PLUG M16X1,5

4 530 ₽
36

59038015000 OIL SCREEN 11,8X44,5MM

OIL SCREEN 11,8X44,5MM

3 390 ₽
37

0770090015 O-RING 9X1,5 NBR

O-RING 9X1,5 NBR

470 ₽
38

0603121830 SEAL RING DIN7603 12X18X3

SEAL RING DIN7603 12X18X3

290 ₽
40

59030026000 CLUTCH COVER

CLUTCH COVER

0 ₽
41

59030025100 GASKET FOR CLUTCH COVER

GASKET FOR CLUTCH COVER

6 340 ₽
42

59030039200 ENGINE CASE GASKET

ENGINE CASE GASKET

10 100 ₽
43

59030101044 CLUTCH COVER CPL.

CLUTCH COVER CPL.

27 040 ₽
44

59030047100 CHAIN DAMPING PLATE RAC.

CHAIN DAMPING PLATE RAC.

3 560 ₽
45

0760142460 SHAFT SEAL RING 14X2 4X6 B

SHAFT SEAL RING 14X2 4X6 B

2 430 ₽
46

0760193070 SHAFT SEAL RING 19X30X7 B

SHAFT SEAL RING 19X30X7 B

1 290 ₽
47

0984060163 AH SCREW DIN6912-M 6X16

AH SCREW DIN6912-M 6X16

410 ₽
48

59030027000 GASKET F. OUTER CLUTCH COV.

GASKET F. OUTER CLUTCH COV.

1 640 ₽
50

0015060453 HH COLLAR SCREW M 6X45 WS=8

HH COLLAR SCREW M 6X45 WS=8

470 ₽
51

0015060603 HH COLLAR SCREW M 6X60 WS=8

HH COLLAR SCREW M 6X60 WS=8

560 ₽
52

0015060303 HH COLLAR SCREW M 6X30 WS=8

HH COLLAR SCREW M 6X30 WS=8

560 ₽
53

0015060353 HH COLLAR SCREW M 6X35 WS=8

HH COLLAR SCREW M 6X35 WS=8

560 ₽
54

0015060753 HH COLLAR SCREW M 6X75 WS=8

HH COLLAR SCREW M 6X75 WS=8

560 ₽
60

59030099000 GASKET SET CPL. RACING

GASKET SET CPL. RACING

98 620 ₽
70

0770250030 O-RING 25,00X3,00 NBR 70

O-RING 25,00X3,00 NBR 70

620 ₽
71

59040034000 CAP COVER

CAP COVER

2 370 ₽
72

59007439000 CLAMP RSGU 18/15

CLAMP RSGU 18/15

1 560 ₽
73

0125060003 WASHER DIN0125-A 6,4

WASHER DIN0125-A 6,4

120 ₽
74

0015060123 HH COLLAR SCREW M 6X12 WS=8

HH COLLAR SCREW M 6X12 WS=8

500 ₽
