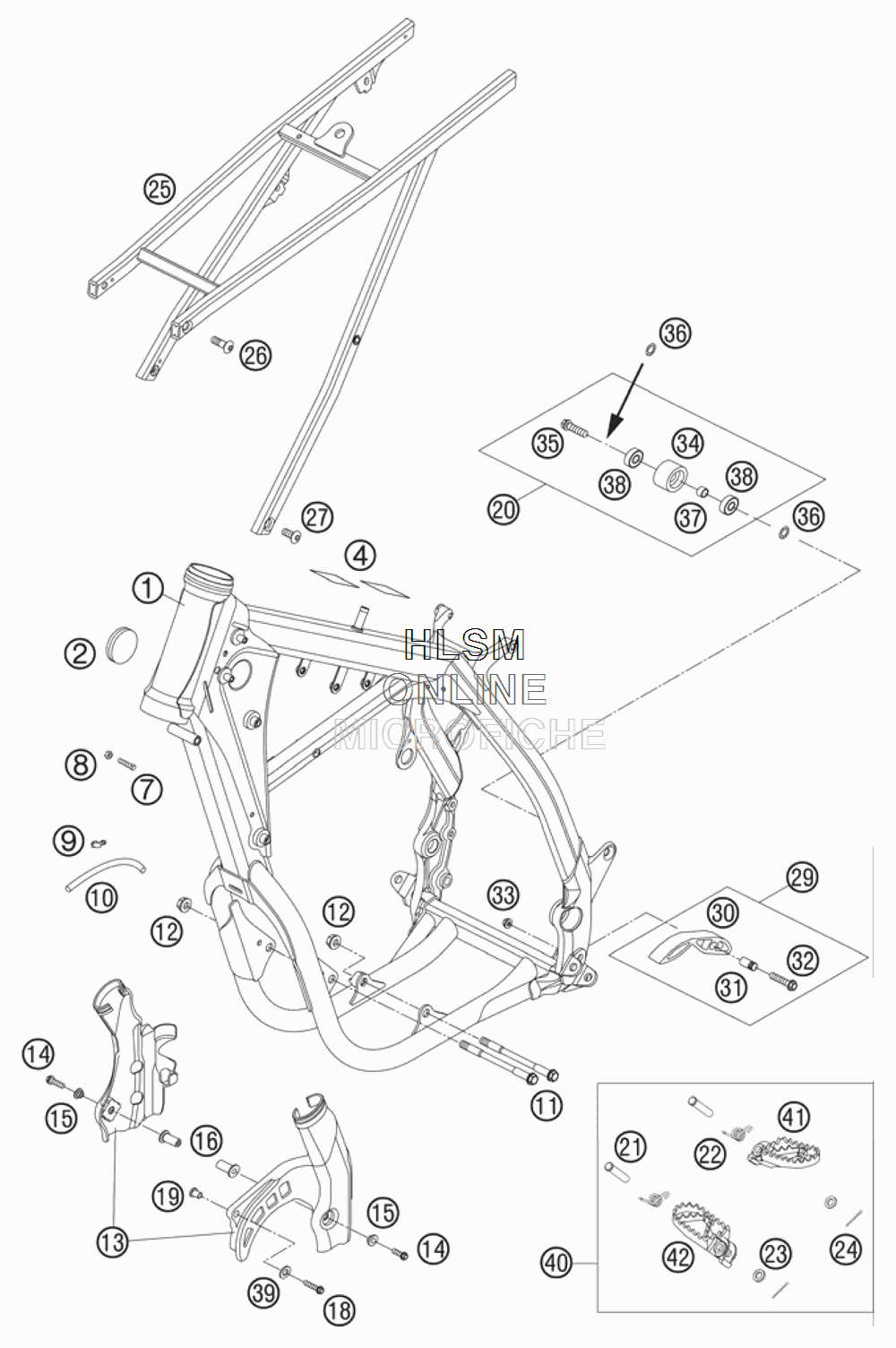

FRAME W/ SUB FRAME для Ktm 450 XC - 2007 года выпуска

№

Артикул

Название
1

5940310120030 FRAME

FRAME

170 ₽
2

54606004000 PLUG 37MM

PLUG 37MM

490 ₽
4

50307012000 ADH. FOIL TRANSP. 80X80 MM

ADH. FOIL TRANSP. 80X80 MM

330 ₽
7

59001037000 SPECIAL SCREW M8X26

SPECIAL SCREW M8X26

560 ₽
8

0934080003 HEXAGON NUT DIN0934-M8

HEXAGON NUT DIN0934-M8

320 ₽
9

50303089000 ANGEL PIECE

ANGEL PIECE

1 160 ₽
10

55007016001 PVC-HOSE 7X10 PER METER

PVC-HOSE 7X10 PER METER

1 640 ₽
11

59003013000 ENGINEBRAC.SCREW M10X123

ENGINEBRAC.SCREW M10X123

2 160 ₽
12

54310086100 SELF LOCKING NUT M10 CU

SELF LOCKING NUT M10 CU

410 ₽
13

54803094100 FRAME PROTECTION SET

FRAME PROTECTION SET

4 820 ₽
14

0014050253 HH COLLAR SCREW M 5X25

HH COLLAR SCREW M 5X25

620 ₽
15

54803092060 BUSH F. FRAME PROTECTION

BUSH F. FRAME PROTECTION

820 ₽
16

54803092050 BLIND PLUG-IN NUT M5 WN 22A

BLIND PLUG-IN NUT M5 WN 22A

1 170 ₽
18

0015060353 HH COLLAR SCREW M 6X35

HH COLLAR SCREW M 6X35

560 ₽
19

59030060050 BUSHING F. SPROCKET COVER

BUSHING F. SPROCKET COVER

640 ₽
20

50203053010 CHAIN ROLL 30MM CPL.

CHAIN ROLL 30MM CPL.

6 810 ₽
21

54803044000 BOLT FOR FOOT PED

BOLT FOR FOOT PED

3 330 ₽
22

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
23

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
24

0094032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

290 ₽
25

59403002344 SUB FRAME CPL. EXC+MXC "M5"

SUB FRAME CPL. EXC+MXC "M5"

98 590 ₽
26

54510052100 SPROCKET SCREW-AH M8X26

SPROCKET SCREW-AH M8X26

500 ₽
27

54610052000 SPROCKET SCREW-AH M8X20

SPROCKET SCREW-AH M8X20

410 ₽
29

51103053010 CHAIN SLIDING PIECE BELOW CPL

CHAIN SLIDING PIECE BELOW CPL

2 470 ₽
30

51103053000 CHAIN SLIDING PIECE BELOW

CHAIN SLIDING PIECE BELOW

2 110 ₽
31

51103053051 BUSHING 8,2X10X20

BUSHING 8,2X10X20

930 ₽
32

0015080353 HH COLLAR SCREW M 8X35

HH COLLAR SCREW M 8X35

410 ₽
33

54310086200 SELF LOCKING NUT M8

SELF LOCKING NUT M8

500 ₽
34

50203053000 CHAIN ROLL D=30MM

CHAIN ROLL D=30MM

1 810 ₽
35

0015080303 HH COLLAR SCREW M 8X30

HH COLLAR SCREW M 8X30

700 ₽
36

36003014000 LOCK WASHER 8MM

LOCK WASHER 8MM

290 ₽
37

74003021000 BUSHING 8.2 X 12 X 6

BUSHING 8.2 X 12 X 6

620 ₽
38

0625006087 GROOVED BALL BEAR. 608 2RS C3

GROOVED BALL BEAR. 608 2RS C3

5 760 ₽
39

0125060003 WASHER DIN0125-A 6,4

WASHER DIN0125-A 6,4

120 ₽
40

5030314013390 FOOTREST L.+ R. CPL.

FOOTREST L.+ R. CPL.

45 270 ₽
41

59003040250 FOOT PED L/S SILVER

FOOT PED L/S SILVER

11 770 ₽
42

59003041250 FOOT PED R/S SILVER

FOOT PED R/S SILVER

11 770 ₽
