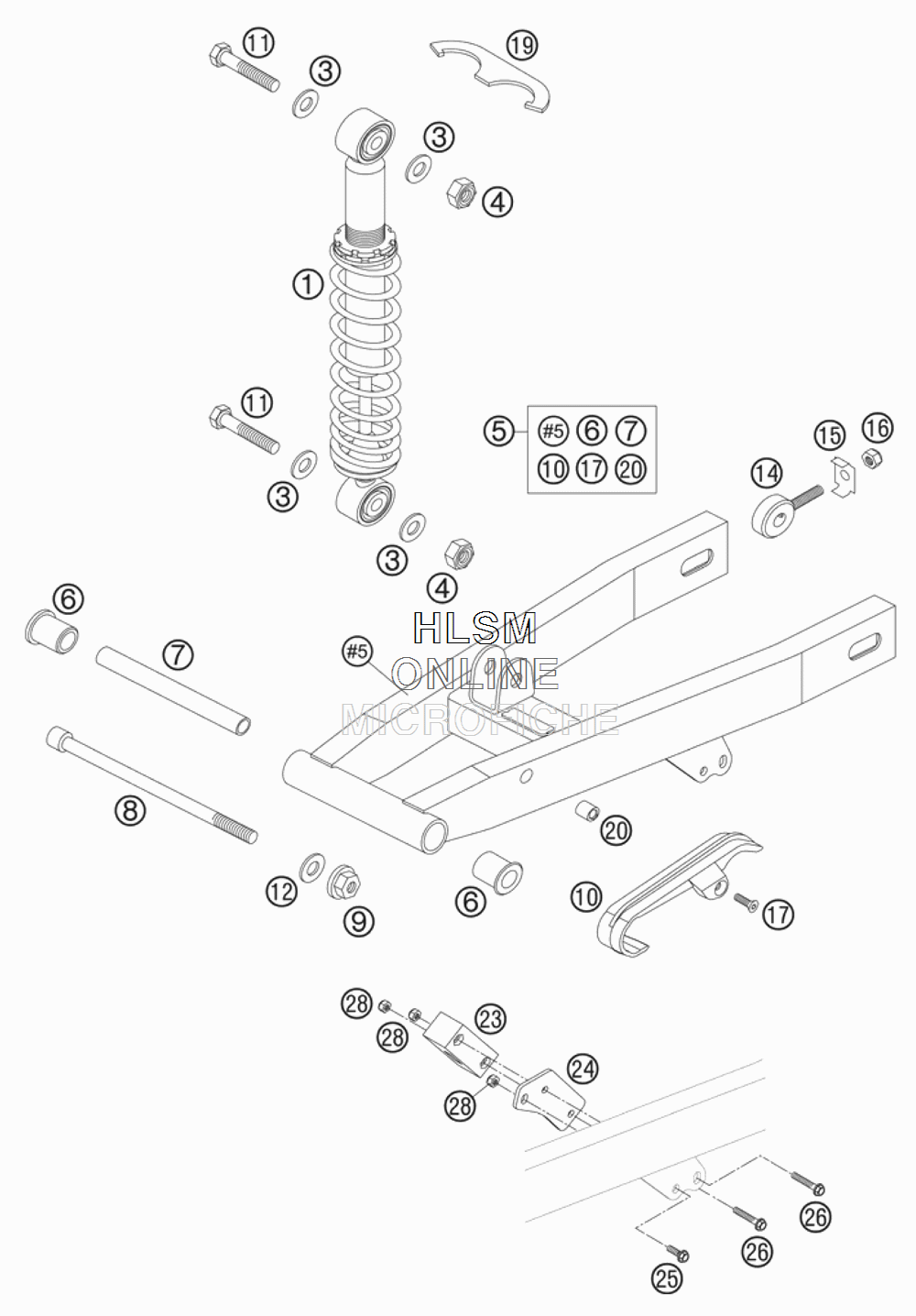

MONOSHOCK W/ SWINGARM для Ktm 50 Sr Adventure - 2007 года выпуска
-
№АртикулНазвание
-
14510401040004 SHOCK ABSORBER SEN. L=275MMSHOCK ABSORBER SEN. L=275MM
-
30125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
40982100003 SELF LOCK.NUT DIN0982-M10 HIGHSELF LOCK.NUT DIN0982-M10 HIGH
-
545104030144 SWINGARM CPL.SWINGARM CPL.
-
645004031000 BUSHING BOX L=30 MMBUSHING BOX L=30 MM
-
745004039000 SPACING TUBE 10X13X140 MMSPACING TUBE 10X13X140 MM
-
845103014000 SWING ARM BOLT M10X158,5SWING ARM BOLT M10X158,5
-
949009082000 SELF LOCKING NUT M10SELF LOCKING NUT M10
-
1045104066000 CHAIN SLID. GUARD FRO.CHAIN SLID. GUARD FRO.
-
110931100453 HH SCREW DIN0931-M10X45HH SCREW DIN0931-M10X45
-
1231004001100 WASHER 10,5 X 21 X 3WASHER 10,5 X 21 X 3
-
1445010083000 CHAIN ADJUSTERCHAIN ADJUSTER
-
1545010083060 SUPPORTING BRACKETSUPPORTING BRACKET
-
160985080003 SELF LOCKING NUT DIN0985-M8SELF LOCKING NUT DIN0985-M8
-
170991060203 FLAT H.SCREW DIN7991-M6X20 8.8FLAT H.SCREW DIN7991-M6X20 8.8
-
1945004010090 HOOK WRENCHHOOK WRENCH
-
2055003139900 BLIND RIVET THREAD M6 STE. 4MMBLIND RIVET THREAD M6 STE. 4MM
-
2345004070000 CHAIN GUIDE REARCHAIN GUIDE REAR
-
2445104170000 BRACKET FOR CHAIN GUARDBRACKET FOR CHAIN GUARD
-
250015050123 HH COLLAR SCREW M 5X12HH COLLAR SCREW M 5X12
-
260015050303 HH COLLAR SCREW M 5X30HH COLLAR SCREW M 5X30
-
280985050003 SELF LOCKING NUT DIN0985-M5SELF LOCKING NUT DIN0985-M5
