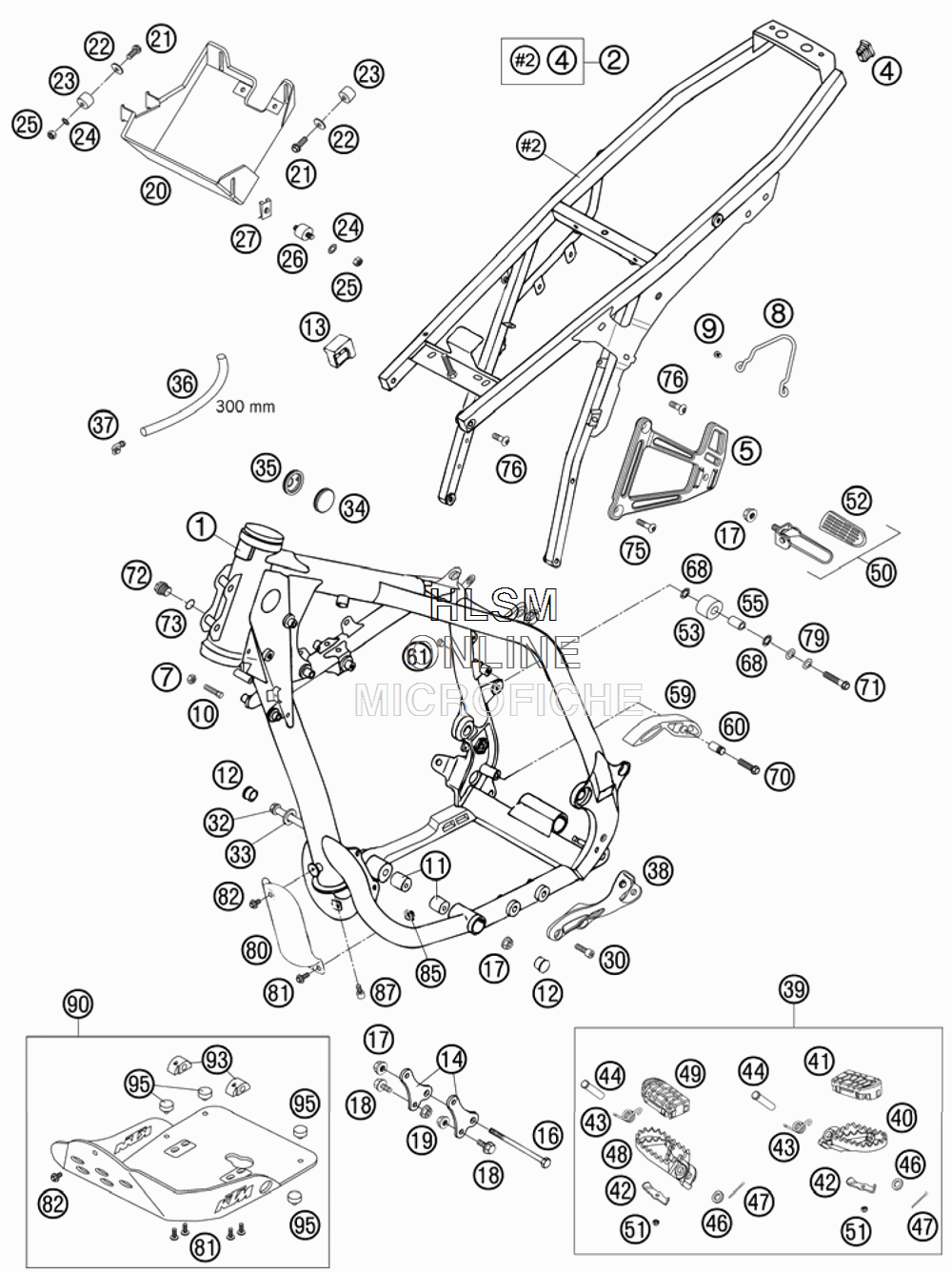

FRAME SUB FRAME для Ktm 640 Adventure - 2007 года выпуска
-
№АртикулНазвание
-
15820300174430 FRAME CPL. "EC05"FRAME CPL. "EC05"
-
25840300234430 SUB FRAME CPL. "I3" BLACKSUB FRAME CPL. "I3" BLACK
-
458303002090 PLUG 12 X 17 MMPLUG 12 X 17 MM
-
55810300420030 FOOTREST BRACKET R/S BLACKFOOTREST BRACKET R/S BLACK
-
55840304800030 FOOTRESTBRACK. REAR L/SFOOTRESTBRACK. REAR L/S
-
70934080003 HEXAGON NUT DIN0934-M8HEXAGON NUT DIN0934-M8
-
858403056000 THERMAL PROTECTION BOWTHERMAL PROTECTION BOW
-
90985050103 OVAL HEAD SCR. DIN7985-M 5X10OVAL HEAD SCR. DIN7985-M 5X10
-
1059001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
1158003012000 SPACER ROLLER 10,3X20X22SPACER ROLLER 10,3X20X22
-
1271001012100 PVC CAP D=22MMPVC CAP D=22MM
-
1358307015000 TANK SUPPORTTANK SUPPORT
-
1458303055000 ENGINE SUPPORT AGWENGINE SUPPORT AGW
-
1658403013000 ENGINE BRAC.SCREW M10X110 WS13ENGINE BRAC.SCREW M10X110 WS13
-
1754630044000 COLLAR NUT M10COLLAR NUT M10
-
1849109481052 HH COLLAR SCREW M 8X16 WS=13HH COLLAR SCREW M 8X16 WS=13
-
1954310086200 SELF LOCKING NUT M8SELF LOCKING NUT M8
-
2058403002370 BATTERY BOXBATTERY BOX
-
210015060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
220021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
2343205062100 RUBBER GROMMET 20X15-M6X10RUBBER GROMMET 20X15-M6X10
-
240797060003 TOOTH LOCK WASH. DIN6797-A 6,4TOOTH LOCK WASH. DIN6797-A 6,4
-
250934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
2658403002010 RUBBER GROMMET 20X15-M6X8RUBBER GROMMET 20X15-M6X8
-
2754603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
300912100250 AH SCREW DIN6912-M10X25,10.9,LAH SCREW DIN6912-M10X25,10.9,L
-
3258403014000 ENGINE BRAC.SCREW M10X160 WS13ENGINE BRAC.SCREW M10X160 WS13
-
3331004001100 WASHER 10,5 X 21 X 3WASHER 10,5 X 21 X 3
-
3454606004000 PLUG 37MMPLUG 37MM
-
3554606004100 PLUG 37MM PERFORATEDPLUG 37MM PERFORATED
-
3655007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
3750303089000 ANGEL PIECEANGEL PIECE
-
3858403038100 FOOTREST BRACKET LEFT ALUFOOTREST BRACKET LEFT ALU
-
39*60003040033 FOOTREST L/S+R/S CPL.FOOTREST L/S+R/S CPL.
-
4059003040250 FOOT PED L/S SILVERFOOT PED L/S SILVER
-
4160003040010 FOOTREST RUBBER FRONT L/SFOOTREST RUBBER FRONT L/S
-
4260003044010 CLOSING PANEL FRONT L/S R/SCLOSING PANEL FRONT L/S R/S
-
4354603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
4454803044000 BOLT FOR FOOT PEDBOLT FOR FOOT PED
-
460125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
470094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
4859003041250 FOOT PED R/S SILVERFOOT PED R/S SILVER
-
4960003041010 FOOTREST RUBBER FRONT R/SFOOTREST RUBBER FRONT R/S
-
5058303050044 FOOTREST REAR L/S CPL.FOOTREST REAR L/S CPL.
-
5058303150044 FOOT REST REAR R/S CPL.FOOT REST REAR R/S CPL.
-
510985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
5258303051000 FOOTREST RUBBER L/S & R/SFOOTREST RUBBER L/S & R/S
-
5358403060000 CHAIN ROLL 12X29X22,5CHAIN ROLL 12X29X22,5
-
5558403060065 BUSH CHAIN ROLL 8X12X23BUSH CHAIN ROLL 8X12X23
-
5951103053000 CHAIN SLIDING PIECE BELOW '97CHAIN SLIDING PIECE BELOW '97
-
6051103053051 BUSHING 8,2X10X20BUSHING 8,2X10X20
-
6154403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
-
6836003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
700015080303 HH COLLAR SCREW M 8X30HH COLLAR SCREW M 8X30
-
710015080453 HH COLLAR SCREW M 8X45HH COLLAR SCREW M 8X45
-
720910160153 PLUG DIN0910-M16X1,5PLUG DIN0910-M16X1,5
-
730603162220 CU-SEAL RING 16X22X2CU-SEAL RING 16X22X2
-
7554510052200 AH SCREW 8X29 FL.HEADAH SCREW 8X29 FL.HEAD
-
7654510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
790125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
8058303010000 COVER OIL FILTERCOVER OIL FILTER
-
810014060153 HH COLLAR SCREW M 6X15HH COLLAR SCREW M 6X15
-
820014060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
8550235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
870984060103 AH SCREW DIN7984-M 6X10AH SCREW DIN7984-M 6X10
-
9058412099044 SKID PLATE LIMITED CPL.SKID PLATE LIMITED CPL.
-
9358003012200 ENGINE PROTECTOR BRACKETENGINE PROTECTOR BRACKET
-
9554308042000 RUBBER BUFFERRUBBER BUFFER
