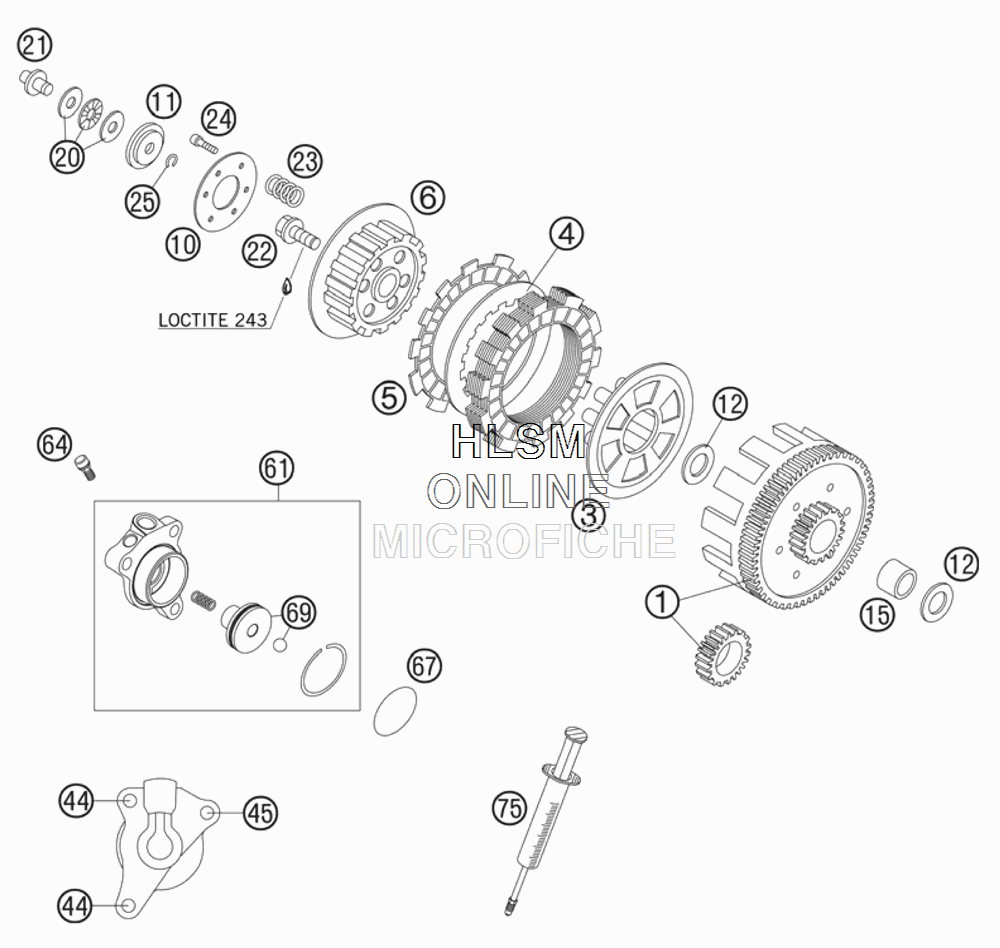

CLUTCH для Ktm 65 SX - 2007 года выпуска

№

Артикул

Название
1

46032000144 PRIM.DR.W.CLUTCH HUB 23:75

PRIM.DR.W.CLUTCH HUB 23:75

106 510 ₽
3

46032003000 PRESSURE CAP

PRESSURE CAP

20 560 ₽
4

46032010000 INTERMEDIATE DISK STEEL

INTERMEDIATE DISK STEEL

3 300 ₽
5

46032011000 LINING DISK

LINING DISK

27 220 ₽
6

46032002000 INNER CLUTCH HUB

INNER CLUTCH HUB

22 200 ₽
10

46032006000 SPRING RETAINER 25X63,5X2

SPRING RETAINER 25X63,5X2

7 740 ₽
11

46032008000 CARRIER FOR AXIAL BEARING

CARRIER FOR AXIAL BEARING

2 050 ₽
12

49032012000 STOP DISK 17,2X30X1,5

STOP DISK 17,2X30X1,5

970 ₽
15

46032015000 INNER RING 22X17X20,5

INNER RING 22X17X20,5

9 600 ₽
20

46032056000 AXIAL BEARING 6X19X2

AXIAL BEARING 6X19X2

8 000 ₽
21

46032054100 PRESSURE PIECE

PRESSURE PIECE

4 610 ₽
22

46132019000 HH COLLAR SCREW M10X20

HH COLLAR SCREW M10X20

1 380 ₽
23

46032005100 CLUTCH SPRING REINFORCED 60/65 L=27,5 D=2,1

CLUTCH SPRING REINFORCED 60/65 L=27,5 D=2,1

680 ₽
24

0991060203 FLAT H.SCREW DIN7991-M6X20 8.8

FLAT H.SCREW DIN7991-M6X20 8.8

290 ₽
25

0471006007 CIRCLIP DIN0471-6X0,7

CIRCLIP DIN0471-6X0,7

60 ₽
44

0015060163 HH COLLAR SCREW M 6X16 WS=8

HH COLLAR SCREW M 6X16 WS=8

290 ₽
45

0015060203 HH COLLAR SCREW M 6X20 WS=8

HH COLLAR SCREW M 6X20 WS=8

500 ₽
61

59032061044 OUTPUT CYLINDER CPL.

OUTPUT CYLINDER CPL.

57 100 ₽
64

54732064000 BLEEDER SCREW WITH CAP

BLEEDER SCREW WITH CAP

5 930 ₽
67

0770300015 O-RING 30,00X1,50 NBR 70

O-RING 30,00X1,50 NBR 70

410 ₽
69

59032066000 PISTON WITH O-RING AND BALL

PISTON WITH O-RING AND BALL

57 100 ₽
75

50329050000 VENT INJEKTION HYDR. CLUTCH

VENT INJEKTION HYDR. CLUTCH

14 520 ₽
