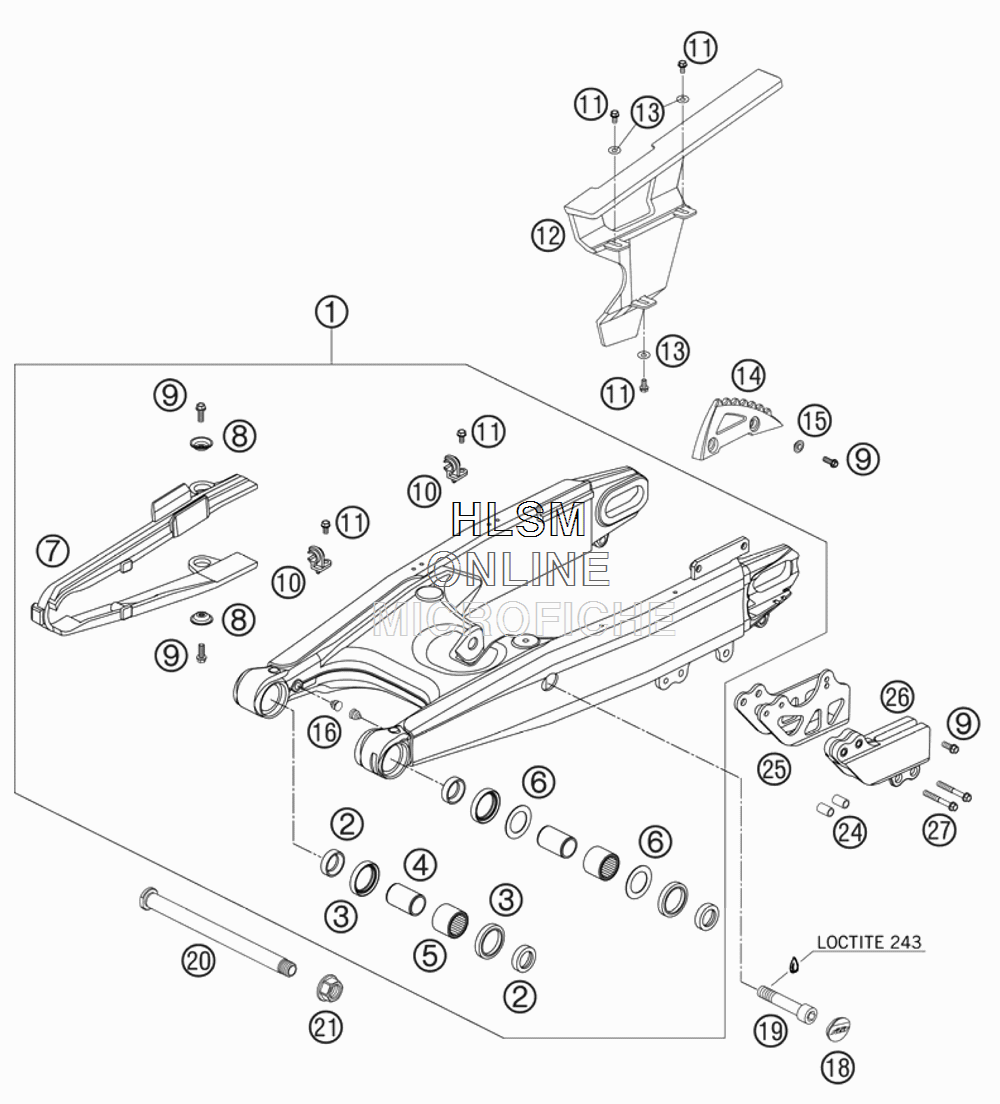

SWINGARM для Ktm 950 Super Enduro - 2007 года выпуска

№

Артикул

Название
1

63004030044 SWING ARM CPL.

SWING ARM CPL.

0 ₽
2

60004034000 BUCKET F. SHAFT SEAL RING

BUCKET F. SHAFT SEAL RING

1 840 ₽
3

0760304073 SHAFT SEAL RING 30X40X7

SHAFT SEAL RING 30X40X7

760 ₽
4

60004032000 INNER RING JR20X25X38,5

INNER RING JR20X25X38,5

4 440 ₽
5

60004031000 NEEDLE BUSH HK2526B

NEEDLE BUSH HK2526B

2 680 ₽
6

60004033000 STOP DISK

STOP DISK

380 ₽
7

63004066000 CHAIN SLID. GUARD SWINGARM

CHAIN SLID. GUARD SWINGARM

6 340 ₽
8

72210079000 BUCKET

BUCKET

680 ₽
9

0015060163 HH COLLAR SCREW M 6X16 WS=8

HH COLLAR SCREW M 6X16 WS=8

290 ₽
10

5461107610030 RET. CLAMP F. BRAKE HOSE BLACK

RET. CLAMP F. BRAKE HOSE BLACK

270 ₽
11

0009050103 SPECIAL SCREW M 5,0X10

SPECIAL SCREW M 5,0X10

290 ₽
12

60004061100 CHAINGUARD

CHAINGUARD

2 650 ₽
13

0021050003 WASHER DIN9021-A 5,3

WASHER DIN9021-A 5,3

120 ₽
14

60004075000 REAR SPROCKET GUARD

REAR SPROCKET GUARD

760 ₽
15

50308053000 BUSH FOR SPOILER 6X11X16X7,5

BUSH FOR SPOILER 6X11X16X7,5

1 460 ₽
16

60004042000 PLUG SFL12 GREY

PLUG SFL12 GREY

210 ₽
18

60004041000 PLUG SWINGARM

PLUG SWINGARM

1 640 ₽
19

60004017000 SCREW M14X1,5 L=73MM

SCREW M14X1,5 L=73MM

1 190 ₽
20

63004037144 SWING ARM BOLT 272,5MM

SWING ARM BOLT 272,5MM

21 070 ₽
21

60004038000 COLLAR NUT M19X1,5 WS=27MM

COLLAR NUT M19X1,5 WS=27MM

4 410 ₽
24

54607072100 BUSH 6,5X10X22MM

BUSH 6,5X10X22MM

680 ₽
25

54607070144 RETAINING PLATE CPL.

RETAINING PLATE CPL.

8 150 ₽
26

63004070000 CHAIN GUIDE

CHAIN GUIDE

3 480 ₽
27

0015060503 HH COLLAR SCREW M 6X50 WS=8

HH COLLAR SCREW M 6X50 WS=8

640 ₽
