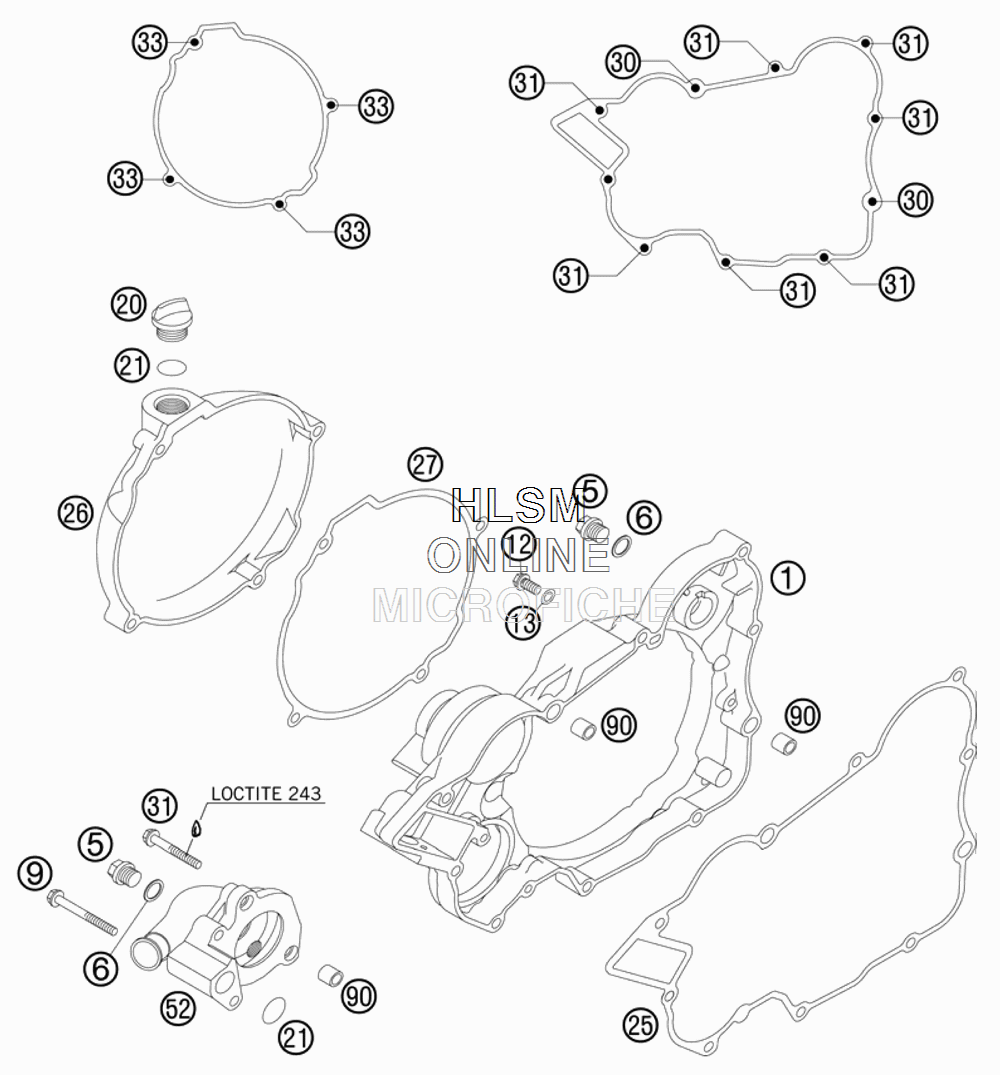

ENGINE CASE для Ktm 125 SX - 2008 года выпуска
-
№АртикулНазвание
-
151530000044 ENGINE CASE CPL M.TRAN.BEARENGINE CASE CPL M.TRAN.BEAR
-
35033000220098 IGNIT.COVER 125/200 MAG.IGNIT.COVER 125/200 MAG.
-
554630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
2158030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
2258038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
3950330039000 ENGINE CASE GASKET 0,5MMENGINE CASE GASKET 0,5MM
-
4050330040100 IGNITION COVER GASKETIGNITION COVER GASKET
-
420015060503 HH COLLAR SCREW M 6X50HH COLLAR SCREW M 6X50
-
430015060553 HH COLLAR SCREW M 6X55HH COLLAR SCREW M 6X55
-
440014050163 HH COLLAR SCREW M 5X16HH COLLAR SCREW M 5X16
-
450015060603 HH COLLAR SCREW M 6X60HH COLLAR SCREW M 6X60
-
9250330092000 OIL GUARD GROMMET 25X31OIL GUARD GROMMET 25X31
-
9950330099200 GASKET KITGASKET KIT
