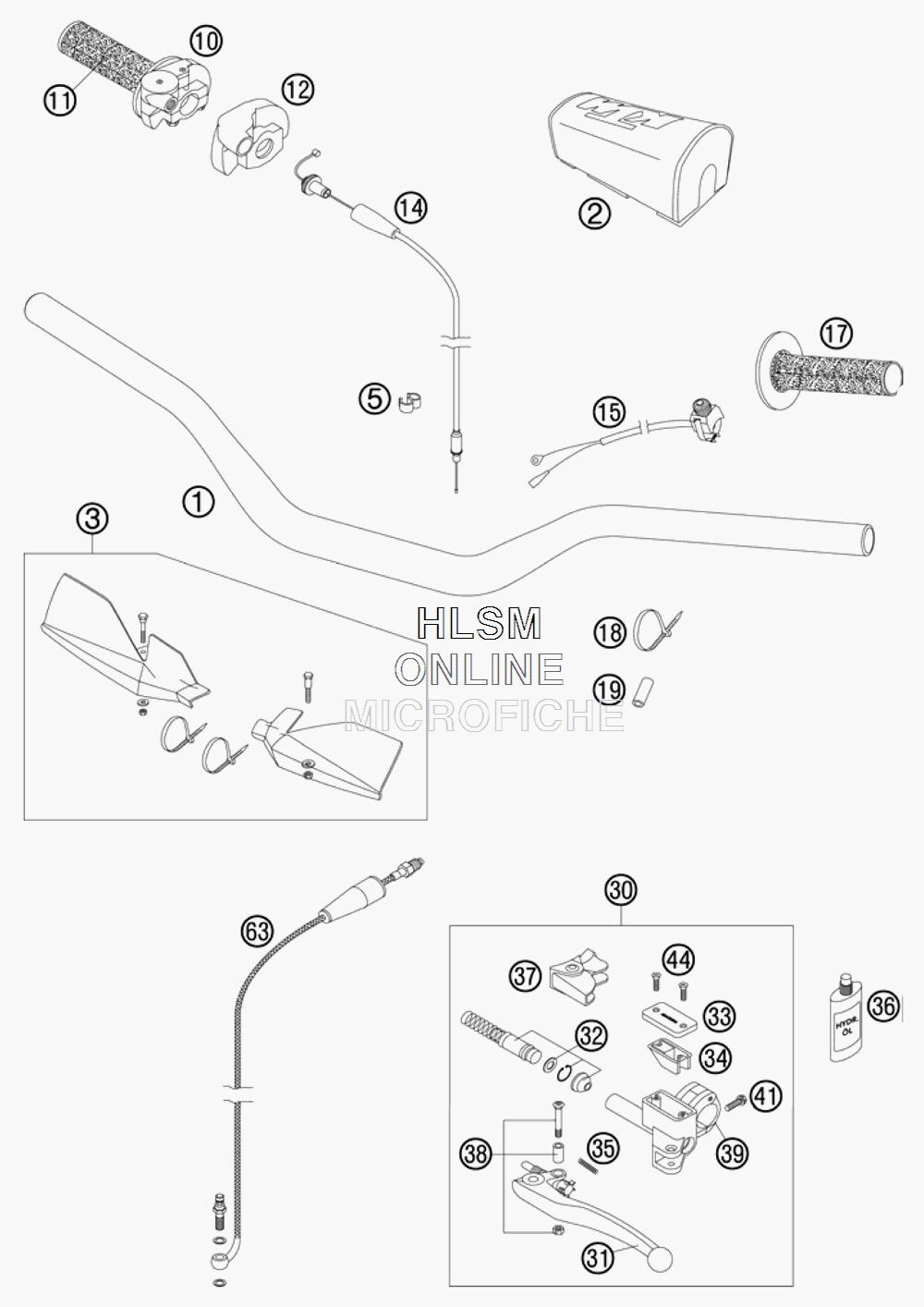

HANDLEBAR CONTROLS для Ktm 125 SXS - 2008 года выпуска
-
№АртикулНазвание
-
17730200110017 HANDLEBAR RENTHAL SX 28MMHANDLEBAR RENTHAL SX 28MM
-
2SXS07250800 FATBAR PAD PHDSFATBAR PAD PHDS
-
37700207900004 HAND GUARDS CPL.L/S+R/S OR.HAND GUARDS CPL.L/S+R/S OR.
-
560111094000 CLAMP 5/7 MMCLAMP 5/7 MM
-
1054802010000 THR.TWIST CRIP CPL. W.O.CA.THR.TWIST CRIP CPL. W.O.CA.
-
1154802013000 TWIST GRIP COVER RENTHALTWIST GRIP COVER RENTHAL
-
1250302020000 PROTECTION COVERPROTECTION COVER
-
1450302091000 THROTTLE C. 125-380 DOM./KEIH.THROTTLE C. 125-380 DOM./KEIH.
-
1550311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
1754802039000 FIXED GRIP RENTHALFIXED GRIP RENTHAL
-
1844011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
1958007016300 HOSE 7X11X30MMHOSE 7X11X30MM
-
3050302030200 MASTER CYLINDER CPL. 9,5MMMASTER CYLINDER CPL. 9,5MM
-
3154602031000 CLUTCH LEVER SHORT CPL.CLUTCH LEVER SHORT CPL.
-
3159002031000 CLUTCH LEVER LONG CPL.CLUTCH LEVER LONG CPL.
-
3259002032000 REP.KIT PISTON 9,5MM RAC.REP.KIT PISTON 9,5MM RAC.
-
3350302033100 COVER HYD.CLUTCH 2TCOVER HYD.CLUTCH 2T
-
3450302034000 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
3559002035000 SPRING FOR CLUTCH LEVERSPRING FOR CLUTCH LEVER
-
3650302036200 OIL FOR HYD. CLUTCH 75MLOIL FOR HYD. CLUTCH 75ML
-
3750302037000 PROTECT.CAP FOR LEVER PERCHPROTECT.CAP FOR LEVER PERCH
-
3850302038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
3950302030150 CLAMP WITH PINCLAMP WITH PIN
-
410025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
440965040123 FLAT HEAD SCREW DIN0965-M 4X12FLAT HEAD SCREW DIN0965-M 4X12
-
6350332063200 CLUTCH PIPE L=970MMCLUTCH PIPE L=970MM
