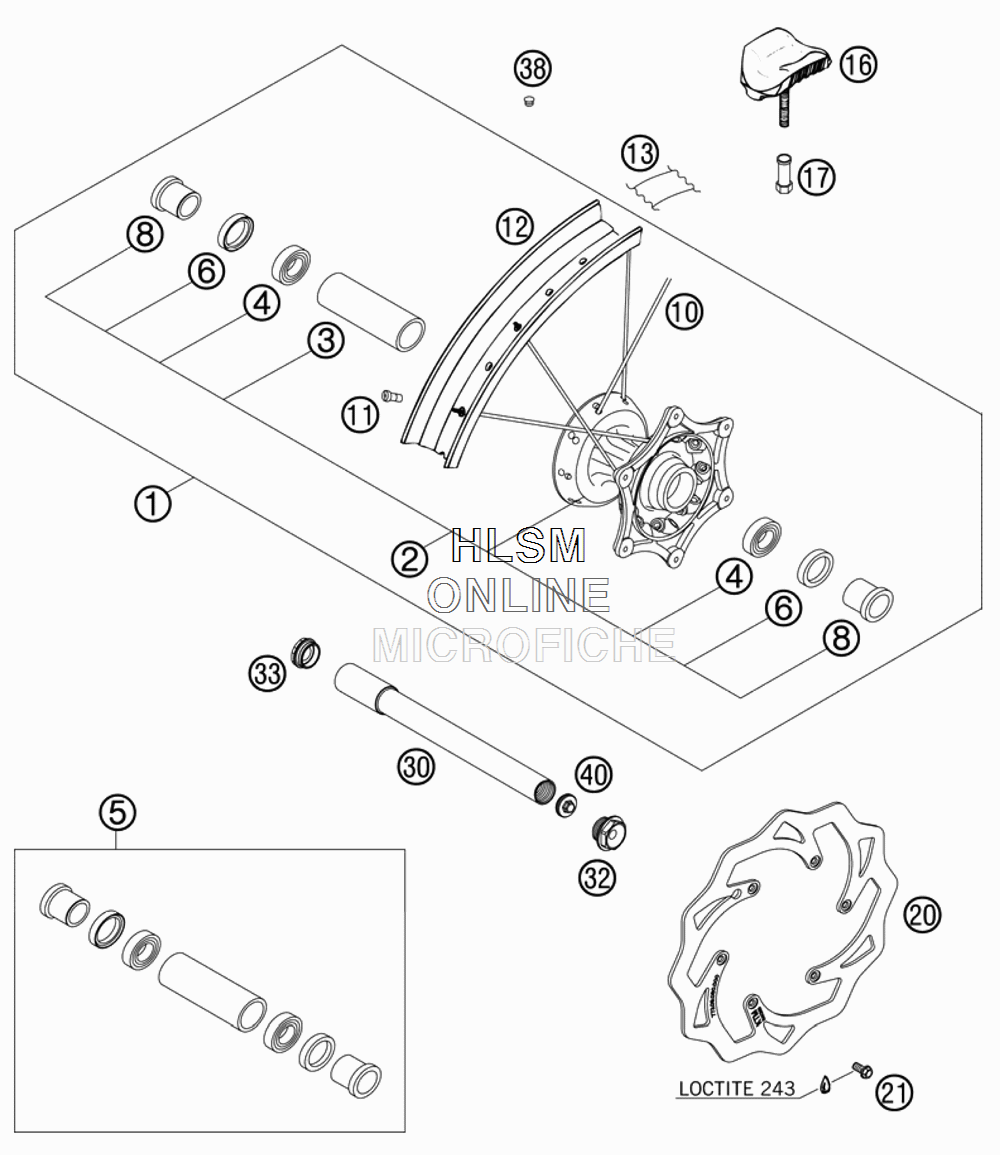

FRONT WHEEL для Ktm 144 SX - 2008 года выпуска
-
№АртикулНазвание
-
17730900104430 FRONT WHEEL CPL.1,6X21EXCELFRONT WHEEL CPL.1,6X21EXCEL
-
278009010044 FRONT WHEEL HUB CPL.FRONT WHEEL HUB CPL.
-
354809011000 BEA.SPACERTUBE 35X2BEA.SPACERTUBE 35X2
-
40625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
577309015000 FRONT WHEEL REP. KITFRONT WHEEL REP. KIT
-
60760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
877309012000 SPACER BUSHINGSPACER BUSHING
-
1078009074226 SPOKE M4,5X226-21''SPOKE M4,5X226-21''
-
1150309072100 SPOKE NIPPLE M4,5X0,75 8X21SPOKE NIPPLE M4,5X0,75 8X21
-
125460907010030 RIM 1,60X21''EXCEL AL4 BLACKRIM 1,60X21''EXCEL AL4 BLACK
-
1350309073000 RIM BAND 21''RIM BAND 21''
-
1651009100100 RIM LOCK VM1 (1,60'')RIM LOCK VM1 (1,60'')
-
1750310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
2077309060000 BRAKE DISC FRONT 260BRAKE DISC FRONT 260
-
2159009062013 SPECIAL SCREW M6X13SPECIAL SCREW M6X13
-
3077309081000 WHEEL SPIN.FR. M24X1,5WHEEL SPIN.FR. M24X1,5
-
3254809082000 SPINDLE SCREW M24X1,5SPINDLE SCREW M24X1,5
-
3354809081050 PLUG BUSHINGPLUG BUSHING
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
4054809081070 AUXILIARY SCREW FRONTAUXILIARY SCREW FRONT
