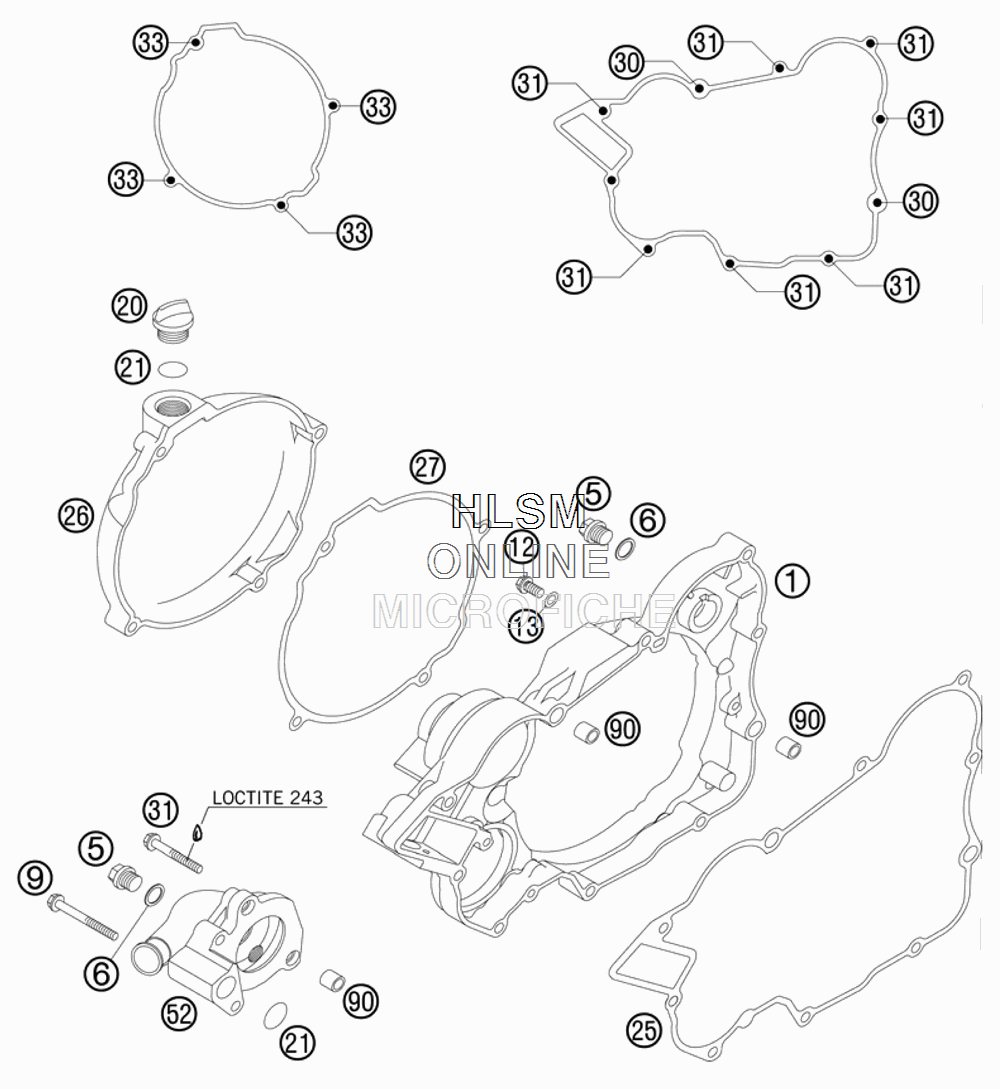

CLUTCH COVER для Ktm 200 XC-W - 2008 года выпуска
-
№АртикулНазвание
-
15033000114498 CLUTCH COVER CPL.CLUTCH COVER CPL.
-
50910100003 PLUG DIN0910-M 10X1PLUG DIN0910-M 10X1
-
60603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
90015060503 HH COLLAR SCREW M 6X50HH COLLAR SCREW M 6X50
-
120015060123 HH COLLAR SCREW M 6X12HH COLLAR SCREW M 6X12
-
130603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
2058030020000 PLUG M 24X3PLUG M 24X3
-
210770160030 O-RING 16,00X3,00 NBR 70O-RING 16,00X3,00 NBR 70
-
2550330025000 CLUTCH COVER GASKET 0,5MMCLUTCH COVER GASKET 0,5MM
-
265033002600098 CLUTCH OUTS.COVERCLUTCH OUTS.COVER
-
2750330027000 CLUTCH OUTS.COVER GASKET 1MMCLUTCH OUTS.COVER GASKET 1MM
-
300015060403 HH COLLAR SCREW M 6X40HH COLLAR SCREW M 6X40
-
310015060353 HH COLLAR SCREW M 6X35HH COLLAR SCREW M 6X35
-
330015060253 HH COLLAR SCREW M 6X25HH COLLAR SCREW M 6X25
-
5250335052000 WATER PUMP COVERWATER PUMP COVER
-
9049030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
