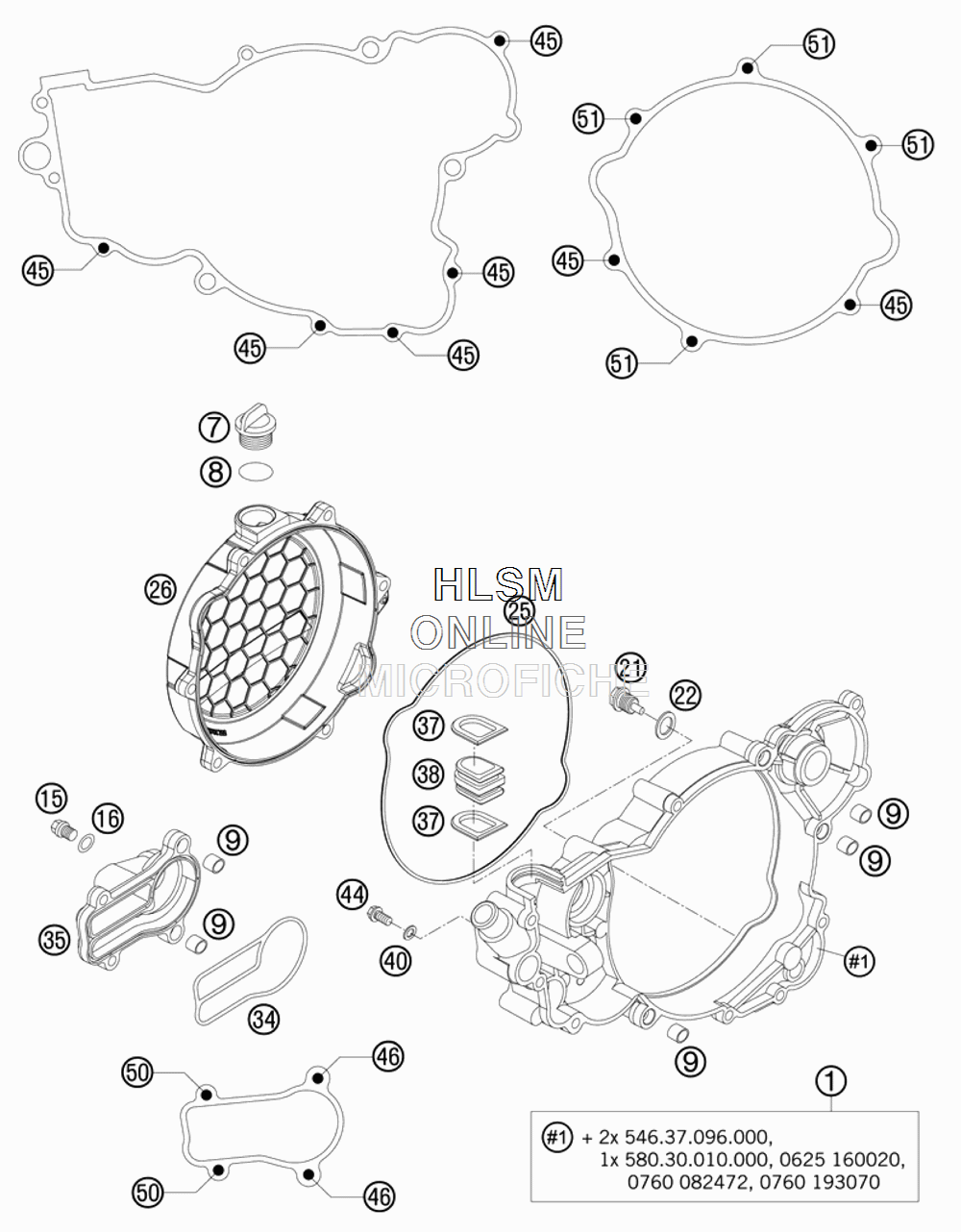

CLUTCH COVER для Ktm 250 SX - 2008 года выпуска
-
№АртикулНазвание
-
154830001044 INTERM. CLUTCH COVER CPL.INTERM. CLUTCH COVER CPL.
-
758030020000 PLUG M 24X3PLUG M 24X3
-
80770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
949030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
150910100003 PLUG DIN0910-M 10X1PLUG DIN0910-M 10X1
-
160603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
2158030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
2258038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
2554830025000 GASKET F. CLU.COVER 250/300GASKET F. CLU.COVER 250/300
-
2655130026000 CLUTCH COVER OUTSIDECLUTCH COVER OUTSIDE
-
3454835003000 GASKET WAPU-COVER 250GASKET WAPU-COVER 250
-
3554835001000 WATERPUMP COVER 250/300WATERPUMP COVER 250/300
-
3754637107000 SEALING ELEMENT BOTTOMSEALING ELEMENT BOTTOM
-
3854837091100 SEALING CARRIERSEALING CARRIER
-
400603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
440015060123 HH COLLAR SCREW M 6X12HH COLLAR SCREW M 6X12
-
450015060203 HH COLLAR SCREW M 6X20HH COLLAR SCREW M 6X20
-
460015060253 HH COLLAR SCREW M 6X25HH COLLAR SCREW M 6X25
-
500015060553 HH COLLAR SCREW M 6X55HH COLLAR SCREW M 6X55
-
510015060603 HH COLLAR SCREW M 6X60HH COLLAR SCREW M 6X60
